Container silent 1000kW genset Yuchai diesel generators with 6 Cylinder V type diesel engine
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG1375YCS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 20 - 40 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | 20ft Container Silent Type | Product Name | Yuchai Diesel Generator |
|---|---|---|---|
| Frequency | 50Hz / 1500rpm | Engine Model | YC6TF1660-D31 |
| Cylinder Of Engine | 6 Cylinder | Engine Power | 1221kW |
| Prime Genset Power | 1000kW/1250kVA | Alternator Model | TGI404S1000 |
| Highlight | 1000kW Yuchai Diesel Generator,6 Cylinder Yuchai Diesel Generator,Container Silent Yuchai Diesel Generator |
||
Product Description

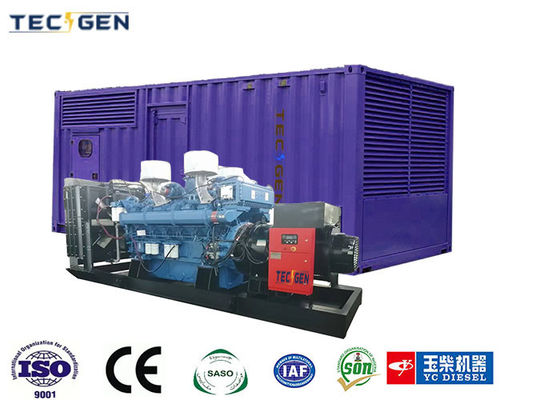

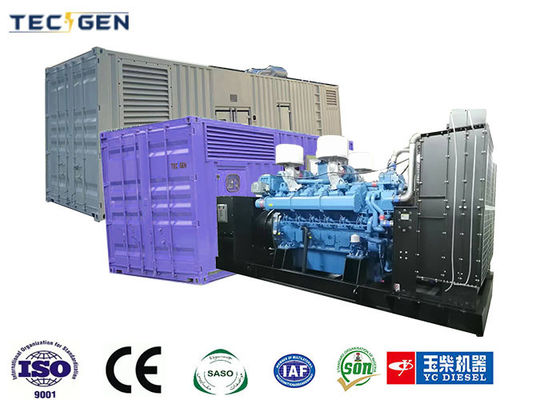

Container silent 1000kW genset Yuchai diesel generators with 6 Cylinder V type diesel engine
Standard Features of the Container Silent 1000kW Genset:
Introducing the Container Silent 1000kW Genset powered by a reliable Yuchai Diesel Generator. This state-of-the-art genset comes equipped with a robust YC6TF1660-D31 engine from Yuchai, renowned for its efficiency and durability. The Tecgen TGI404S1000 alternator ensures a steady and consistent power supply, perfect for a variety of applications. With a prime power output of 1000kW/1250kVA and a standby power of 1100kW/1375kVA, this genset is designed to handle heavy loads with ease.
Key Features:
- Powerful Engine: The Yuchai YC6TF1660-D31 engine boasts a max output of 1221kW and runs at a rated speed of 1500rpm. Its V-type cylinder arrangement and turbocharged & intercooled aspiration system provide optimal performance and efficiency.
- Silent Operation: Enclosed in a 40ft container silent canopy, this genset operates at a noise level of just 95db(A) at 7 meters, making it ideal for sensitive environments.
- Electric Governor: The electric governor ensures smooth and stable power regulation, maintaining consistent output even under varying loads.
- Comprehensive Protection: Equipped with a DEIF SGC-420 control system, this genset features AMF module control, static with auto battery charger, emergency stop push button, ATS & RS485 connection, ensuring comprehensive protection and reliability.
- Large Fuel Tank Capacity: With a fuel tank capacity of 900L, this genset can run for extended periods without the need for frequent refueling.
- Forced Water Cooling: The forced water-cooled system ensures the engine remains cool even under heavy loads, prolonging its lifespan and reducing maintenance costs.
Container Silent 1000kW Genset Specifications:
| Technical Parameter for Yuchai Diesel Generator | Genset Model | TG1375YCS |
| Prime Power | 1000kW/1250kVA | |
| Standby Power | 1100kW/1375kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 220/380V | |
| Power Factor | 0.8 | |
| Governor | Electric | |
| Noise level (7m) | 95db(A) | |
| Engine Brand | YUCHAI | |
| Engine Model | YC6TF1660-D31 | |
| Alternator Brand | Tecgen | |
| Alternator Brand | TGI404S1000 | |
| Dimension | Open: L4600 x W2100 x H2200mm | |
| Silent: L6000 x W2300 x H2400 | ||
| Fuel Tank Capacity | 900L | |
| Engine General Data | Engine Brand | YUCHAI |
| Engine Model | YC6TF1660-D31 | |
| Max Output | 1221kW | |
| Rated Speed | 1500rpm | |
| Number of Cylinders | 6 | |
| Cylinder arrangement | V-type | |
| Displacement (L) | 31.75 | |
| Aspiration | Turbocharged & Intercooled | |
| Bore×Stroke (mm×mm) | 175x220 | |
| Compression Ratio | 15:1 | |
| Cooling | Forced Water Cooled | |
| Fuel Consumption at 100% load(L/H) | 261 | |
| Alternator Data | Model | TGI404S1000 |
| Brand | Tecgen | |
| Rate Output | 1250kVA | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | DEIF |
| Model | SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS & RS485 Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Circuit breaker | Delixi Brand 2000A Breaker | |
| Auto Transfer Switch | 2000A ATS Cabinet | |
| Genset Options | Output Socket | |
| 40ft Container Silent Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Usage:
The Container Silent 1000kW Genset is perfect for a wide range of applications, including hospitals, data centers, industrial plants, and commercial buildings. Its silent operation and reliable power output make it an ideal choice for environments where noise levels and power stability are critical.
Advantages:
- High Efficiency: The Yuchai engine and Tecgen alternator work in harmony to provide high efficiency and low fuel consumption.
- Reliability: With a well-known brand like Yuchai, you can trust that this genset will provide reliable power when you need it most.
- Durability: Built to last, this genset can withstand the harshest environments and provide years of trouble-free operation.
- Easy Maintenance: The design of this genset allows for easy access to all components, making maintenance and repairs quick and straightforward.
- Customizable Options: A variety of options are available to tailor the genset to your specific needs, including sync panels, water heaters, engine heaters, and different engine brands.
Options:
- Engine Brand Options: Choose from a variety of engine brands, including Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, and Googol.
- Control System Options: Opt for alternative control systems from brands like Deepsea, ComAp, and Mebay.
- Additional Accessories: Add an output socket, water heater, engine heater, or sync panel to further customize your genset.
FAQ:
Q: What is the noise level of the Container Silent 1000kW Genset?
A: The noise level is 95db(A) at 7 meters.
Q: What is the fuel tank capacity?
A: The fuel tank capacity is 900L.
Q: Can I customize the genset with different engine brands?
A: Yes, a variety of engine brand options are available.
Q: How efficient is the Yuchai engine?
A: The Yuchai engine is highly efficient, providing low fuel consumption and high power output.
In conclusion, the Container Silent 1000kW Genset powered by a Yuchai Diesel Generator is the perfect choice for those seeking a reliable, efficient, and silent power solution. With its comprehensive features, customizable options, and high-quality components, this genset is sure to meet your power needs and exceed your expectations. For more information or to place an order, visit our website today.
