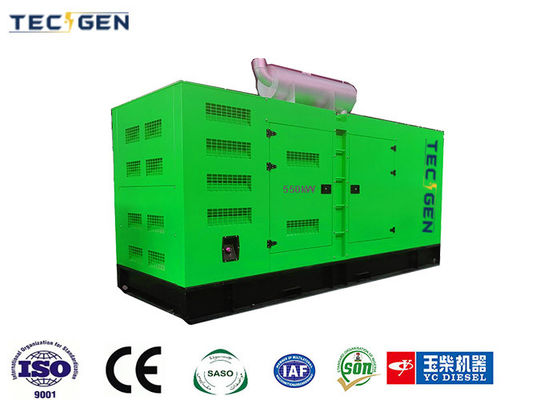

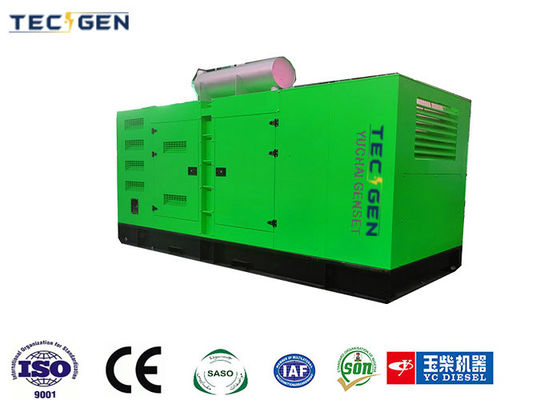

Silent type 550kW generator set Yuchai diesel gensets for commercial buildings use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG756YCS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 20 - 40 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent Type | Product Name | Yuchai Diesel Generator |
|---|---|---|---|
| Frequency | 50Hz / 1500rpm | Engine Model | YC6TC900-D31 |
| Cylinder Of Engine | 6 Cylinder | Engine Power | 665KW/1500RPM |
| Prime Genset Power | 550kW / 688kVA | Alternator Model | TGI354S550 |
| Highlight | 550kW Yuchai Diesel Generator,Commercial Buildings Yuchai Diesel Generator,Silent Yuchai Diesel Generator |
||
Product Description
Silent type 550kW generator set Yuchai diesel gensets for commercial buildings use
Standard Features of the Silent Type 550kW Generator Set:
Introducing the Silent Type 550kW Generator Set, a powerhouse designed for efficiency, reliability, and whisper-quiet operation. Powered by a Yuchai YC6TC900-D31 diesel engine, this generator set offers a rated output of 550kW (688kVA) and a maximum output of 605kW (756kVA), ensuring robust power supply for various applications. The set includes a TGI354S550 AC alternator, DEIF SGC-420 controller, and a comprehensive range of standard features tailored to meet your power needs.
Key Features:
- Powerful Engine: Equipped with the Yuchai YC6TC900-D31 diesel engine, known for its durability and fuel efficiency. The engine produces a standby output of 665kW at 1500 RPM, ensuring consistent and reliable power delivery.
- Silent Operation: The Silent Type design incorporates advanced sound-damping materials and technologies to reduce noise levels to just 92dB(A) at 7 meters, making it ideal for use in noise-sensitive environments.
- Advanced Controller: The DEIF SGC-420 controller provides precise control over the generator set's operation, ensuring optimal performance and reliability.
- Versatile Alternator: The TGI354S550 alternator offers a rated voltage of 240/415V and a rated current of 957.2A, making it suitable for a wide range of applications.
- Comprehensive Protection: Equipped with overvoltage, undervoltage, overcurrent, and short-circuit protection, the generator set ensures safe and reliable operation.
Silent Type 550kW Generator Set Datasheets:
| Silent Type 550kW Generator Set Specifications | |||||
| Model | Engine | AC Alternator | Controller | Output | |
| TG756YCS | YC6TC900-D31 | TGI354S550 | DEIF SGC-420 | 550kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Silent Type 550kW Generator Set | |||||
| Engine Model | YC6TC900-D31 | ||||
| Alternator Mode | TGI354S550 | ||||
| Rated Output | 550kW / 688kVA | ||||
| 605kW / 756kVA | |||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 240 / 415V | ||||
| Rated Current | 957.2A | ||||
| Breaker | 1000A CHNT Breaker | ||||
| ATS | 1000A AISIKAI ATS | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 92dB(A) | ||||
| Net Weight | 3800KGS | ||||
| Genset size | L3630 * W1400 * H1900mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Silent Type 550kW Generator Set | |||||
| Manufacture | YUCHAI | ||||
| Model | YC6TC900-D31 | ||||
| Rated Output/Speed | N.A | ||||
| Standby Output/Speed | 665KW/1500RPM | ||||
| Aspiration | Turbocharged | ||||
| Speed Governor | Electric | ||||
| Engine Type | 6 cylinders in line | ||||
| Bore X Stroke | 152*162mm | ||||
| Displacement | 17.96 L | ||||
| Compression ratio | 17:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 143.4 L / h | ||||
| Fuel Consumption/standby output | 157.7 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Silent Type 550kW Generator Set | |||||
| Alternator Model | TGI354S550 | ||||
| Manufacture | Fujian Tecgen Power Co., Ltd | ||||
| Rate Output | 550kW | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Silent Type 550kW Generator Set | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage:
The Silent Type 550kW Generator Set is perfect for a variety of applications, including industrial facilities, commercial buildings, hospitals, and data centers. Its silent operation and powerful performance make it an ideal choice for providing backup power or as a primary power source in environments where noise reduction is critical.
Advantages:
- Fuel Efficiency: The Yuchai diesel engine is designed for maximum fuel efficiency, reducing operational costs and environmental impact.
- Reliability: With a robust design and comprehensive protection features, the generator set offers unmatched reliability and durability.
- Easy Maintenance: The modular design and easy access to components make maintenance and repairs quick and straightforward.
- Silent Operation: The advanced sound-damping technologies ensure that the generator set operates quietly, minimizing noise pollution and disturbing impacts on surrounding areas.
Options:
Customize your Silent Type 550kW Generator Set with a range of optional features, including an integrated fuel tank, water heater, automatic transfer switch (ATS), permanent magnet generator (PMG), synchronization function, 12/24-hour fuel tank, and a 3000-hour spare parts kit. These options allow you to tailor the generator set to your specific needs and requirements.
FAQ:
- What is the rated output of the Silent Type 550kW Generator Set?
- The rated output is 550kW (688kVA), with a maximum output of 605kW (756kVA).
- What type of engine powers this generator set?
- The generator set is powered by a Yuchai YC6TC900-D31 diesel engine.
- How quiet is the Silent Type 550kW Generator Set?
- The generator set operates at just 92dB(A) at 7 meters, making it one of the quietest generator sets in its class.
- What control system does the generator set use?
- The generator set uses a DEIF SGC-420 controller for precise and reliable operation.
- Can I customize the generator set with optional features?
- Yes, a range of optional features are available to tailor the generator set to your specific needs.
In conclusion, the Silent Type 550kW Generator Set is a powerful, reliable, and silent solution for your power needs. Whether you're looking for a backup power source or a primary power supply, this generator set delivers unmatched performance and efficiency. With its advanced features and customizable options, the Silent Type 550kW Generator Set is the perfect choice for any application requiring silent and reliable power. Don't miss out on this top-quality Yuchai Diesel Genset – order yours today!
