Silent 43kW Perkins Generator 1800rpm diesel engine genset with open / silent type option
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG59PSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 20 - 40 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open / Silent Type | Product Name | Perkins Diesel Generator |
|---|---|---|---|
| Frequency | 60Hz / 1800rpm | Engine Model | 1103A-33TG1 |
| Alternator Model | TGI224S43 | Prime Genset Power | 43kW/54kVA |
| Standby Genset Power | 47kW/59kVA | Engine Origin | UK |
| Highlight | Silent 43kW Perkins Generator,Open Type Perkins Generator,1800rpm Perkins Generator |
||
Product Description

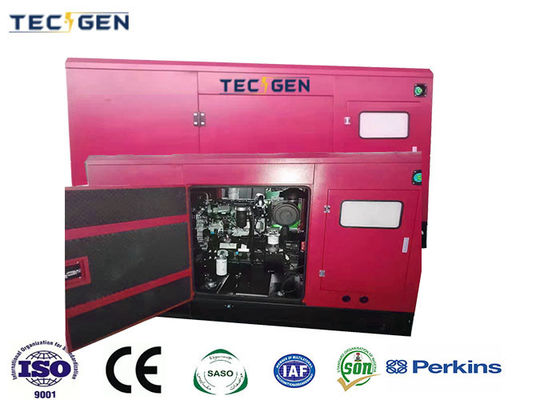

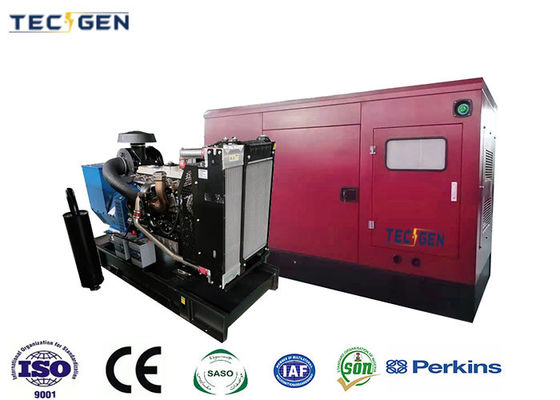

Silent 43kW Perkins Generator 1800rpm diesel engine genset with open / silent type option
Standard Features:
Introducing our top-tier Silent 43kW Perkins Generator, the TG59PSD6, designed to meet the diverse power needs of various applications. This generator set comes equipped with a robust Perkins 1103A-33TG1 engine, renowned for its reliability and efficiency. With a prime power output of 43kW/54kVA and a standby power of 47kW/59kVA, it ensures continuous and stable power supply, ideal for both residential and commercial use. Operating at a standard frequency of 60Hz and a rated voltage of 220V, this generator set is compatible with most electrical systems.
Key Features:
- Powerful Engine: The Perkins 1103A-33TG1 engine boasts a rated output of 50.5kW and runs at a smooth 1800rpm, providing ample power while maintaining low noise levels. Its turbocharged aspiration and forced water-cooled system ensure optimal performance even in demanding conditions.
- Silent Operation: Equipped with advanced sound-damping technology, the Silent 43kW Perkins Generator operates at a noise level of just 72db(A) at 7 meters, making it perfect for noise-sensitive environments.
- Versatile Alternator: The Copy Stamford TGI224S43 alternator offers a rated output of 42kW, ensuring clean and stable power output. With an insulation class of H and a single bearing design, it provides long-lasting durability and reliability.
- Intelligent Control System: The DEIF SGC-420 control system with AMF module offers seamless automation, including static auto battery charging, emergency stop functionality, and ATS connection options. Alternative brands like Deepsea, ComAp, and Mebay are also available upon request.
- Comprehensive Protection: Equipped with a Delixi brand 160A circuit breaker and a 160A ATS, this generator set provides comprehensive electrical protection, ensuring safe and efficient operation.
Silent 43kW Perkins Generator Specifications:
| Technical Parameter for Silent 43kW Perkins Generator | Genset Model | TG59PSD6 |
| Prime Power | 43kW/54kVA | |
| Standby Power | 47kW/59kVA | |
| Frequency | 60Hz | |
| Rated Voltage | 220V | |
| Power Factor | 0.8 | |
| Governor | MECH OR ELECTRIC | |
| Noise level (7m) | 72db(A) | |
| Engine Brand | Perkins | |
| Engine Model | 1103A-33TG1 | |
| Alternator Brand | Copy Stamford | |
| Alternator Brand | TGI224S43 | |
| Dimension | Open: L1900 x W850 x H1300mm | |
| Silent: L2450 x W1000 x H1460 | ||
| Fuel Tank Capacity | 120L | |
| Engine General Data | Engine Brand | Perkins (UK) |
| Engine Model | 1103A-33TG1 | |
| Rated Output | 50.5kW | |
| Rated Speed | 1800rpm | |
| Number of Cylinders | 3 | |
| Cylinder arrangement | In-line | |
| Displacement (L) | 3.3 | |
| Aspiration | Turbocharged | |
| Bore×Stroke (mm×mm) | 105x127 | |
| Compression Ratio | 17.25:1 | |
| Cooling | Forced Water Cooled | |
| Fuel Consumption at 100% load(L/H) | 12.9 | |
| Alternator Data | Model | TGI224S75 |
| Brand | Copy Stamford | |
| Rate Output | 42kW | |
| Frequency | 60Hz | |
| Speed | 1800rpm | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | DEIF |
| Model | DEIF SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Circuit breaker | Delixi Brand 160A Breaker | |
| Auto Transfer Switch | 160A ATS | |
| Genset Options | Output Socket | |
| Integrated Fuel Tank | ||
| Trailer & Silent Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Usage:
The Silent 43kW Perkins Generator is ideal for a wide range of applications, including residential backup power, commercial power supply, and industrial use. Its compact design and silent operation make it perfect for use in hospitals, schools, offices, and other noise-sensitive environments. Whether you need a reliable power source for your home or business, this generator set will meet your needs with ease.
Advantages:
- High Efficiency: The Perkins engine and Stamford alternator combine to provide exceptional efficiency, reducing fuel consumption and operational costs.
- Silent Operation: With advanced sound-damping technology, this generator set operates quietly, minimizing noise pollution and ensuring a peaceful environment.
- Reliability: Built with high-quality components and rigorous testing, this generator set is designed to provide years of reliable service.
- Versatility: Suitable for a wide range of applications, this generator set can be customized with various options to meet your specific needs.
Options:
- Output Socket: Easily connect your electrical devices with the included output socket.
- Integrated Fuel Tank: A 120L fuel tank ensures extended operation without the need for frequent refueling.
- Trailer & Silent Canopy: Transport and store your generator set with ease, thanks to the included trailer and silent canopy.
- Sync Panel: Synchronize multiple generator sets for increased power output and reliability.
- Water Heater & Engine Heater: Keep your generator set running smoothly in cold weather with the included water heater and engine heater.
FAQ:
- What is the noise level of the Silent 43kW Perkins Generator? The noise level is 72db(A) at 7 meters, making it one of the quietest generators in its class.
- What is the fuel consumption of this generator set? At 100% load, the fuel consumption is 12.9 liters per hour.
- Can this generator set be customized? Yes, various options are available to customize your generator set to meet your specific needs.
- What is the warranty period for this product? Please contact us for details on our warranty policy.
In conclusion, the Silent 43kW Perkins Generator is a versatile and reliable power solution designed to meet the diverse needs of various applications. With its powerful engine, silent operation, and comprehensive features, this generator set is the perfect choice for anyone looking for a high-quality, efficient, and silent 1800rpm diesel engine genset. Don't miss out on this exceptional product – order yours today!
