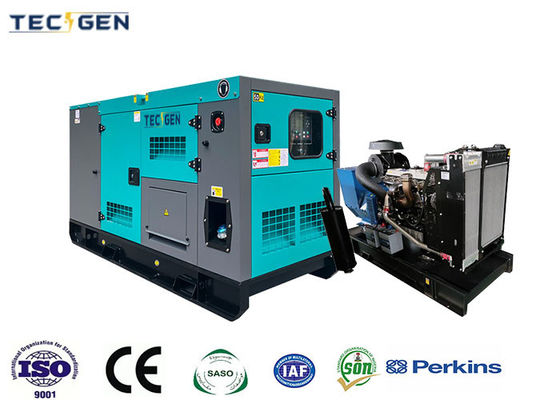

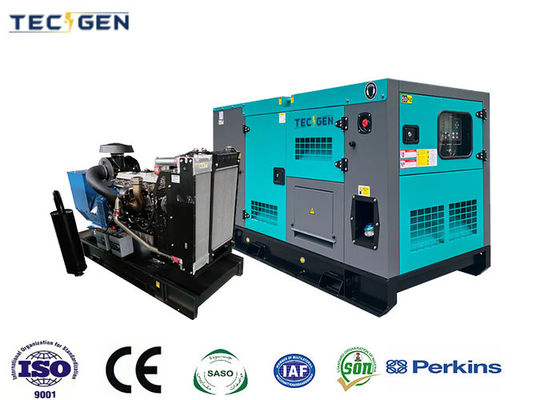

Standby 26kVA diesel genset 1800rpm diesel generator powered by Perkins 404 series engine
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG26PSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 20 - 40 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open / Silent Type | Product Name | Perkins Diesel Generator |
|---|---|---|---|
| Frequency | 60Hz / 1800rpm | Engine Model | Perkins 404A-22G1 |
| Alternator Model | TECGEN TGI184S19 | Prime Genset Power | 19kW / 24kVA |
| Standby Genset Power | 21kW / 26kVA | Engine Origin | Wuxi, China |
| Highlight | Perkins 404 series diesel genset,26kVA diesel genset,1800rpm diesel genset |
||
Product Description
Standby 26kVA diesel genset 1800rpm diesel generator powered by Perkins 404 series engine
Product Description: Standby 26kVA Diesel Genset - Reliable Power, Uninterrupted Efficiency
Standard Features:
Introducing the TG26PSD6 Standby 26kVA Diesel Genset, a power solution designed to meet the most demanding energy needs. This robust genset boasts a Perkins 404A-22G1 engine paired with a TECGEN TGI184S19 alternator, ensuring seamless power delivery in critical situations. Operating at a consistent 1800RPM, this 60Hz, 3-phase generator offers unparalleled reliability and efficiency. With a voltage of 208V and a rate current of 66.6A, it's capable of delivering prime power of 19kW/24kVA and standby power of 21kW/26kVA, making it ideal for a wide range of applications.
Key Features:
- Powerful Engine: Equipped with the Perkins 404A-22G1 engine, known for its durability and fuel efficiency.
- Soundproof Design: Ensures quiet operation, with a noise level of just 65 dB(A) @ 7m, making it suitable for both indoor and outdoor use.
- High-Quality Alternator: The TECGEN TGI184S19 alternator provides stable and clean power output, ensuring the protection of sensitive electronics.
- Advanced Control System: Managed by a DEIF SGC-420 controller, featuring AMF module, static auto battery charger, emergency stop push button, CANBUS, and MPU VERSION for enhanced functionality and safety.
- Versatile Connectivity: Offers 4 or 12-wire configurations to cater to different power distribution needs.
Standby 26kVA Diesel Genset Datasheet:
| Technical Specification: | |
| Standby 26kVA Diesel Genset Specification | |
| Genset Model | TG26PSD6 |
| Soundproof | |
| Frequency | 60Hz |
| Rate Speed | 1800RPM |
| Voltage | 208V |
| Phase | 3 Phase, 4 or 12 Wires |
| Rate Current | 66.6A |
| Prime Power | 19kW / 24kVA |
| Standby Power | 21kW / 26kVA |
| Engine Model | Perkins 404A-22G1 |
| Alternator Model | TECGEN TGI184S19 |
| ATS | 100A ATS Box |
| Controller | DEIF |
| Noise Level | 65 dB(A) @ 7m |
| Weight & Dimensions | |
| Length (mm) | 2100 |
| width (mm) | 980 |
| Height (mm) | 1460 |
| Weight (kgs) | 1250 |
| Engine Specifications | |
| Brand | Perkins (Wuxi) |
| Engine Model | 404A-22G1 |
| Standby power | 22kW |
| Injection | Indirect |
| Aspiration | Naturally Aspirated |
| No. of cylinders | 4 |
| Speed | 1800RPM |
| Bore of Stroke (mm) | 84 x 100 |
| Displacement (L) | 2.216 |
| Cooling | Water Cooled |
| Compression Ratio | 23.3:1 |
| Engine Oil capacity (L) | 7.0 |
| Coolant Capacity ( In radiator) | 7.0 |
| Governor | Electric |
| Air Filter | Dry Element |
| Fuel consumption | @ 60Hz |
| 100% Load (L/h) | 5.0 |
| 75% Load (L/h) | 3.7 |
| 50% Load (L/h) | 2.5 |
| 25% Load (L/h) | 1.2 |
| Alternator Specification | |
| Brand | TECGEN |
| Model | TGI184S19 |
| Rate Output | 24kVA |
| Speed | 1800RPM |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System | |
| Brand | DEIF |
| Model | SGC-420 |
| Functions | Control with AMF module |
| Static with auto. battery charger | |
| Emergency stop push button | |
| CANBUS & MPU VERSION | |
| OPTIONAL EQUIPMENTS | |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | |
Usage:
The TG26PSD6 Standby 26kVA Diesel Genset is perfect for various applications where uninterrupted power supply is crucial. From hospitals and data centers to industrial facilities and commercial buildings, this genset ensures that critical operations continue without interruption. Its compact design and easy installation make it an ideal choice for both permanent and temporary power solutions.
Advantage:
- Reliability: With a Perkins engine and TECGEN alternator, you can trust this genset to deliver power when you need it most.
- Efficiency: Operating at 1800RPM and equipped with an electric governor, it optimizes fuel consumption and reduces wear and tear.
- Quiet Operation: The soundproof design minimizes noise pollution, making it suitable for sensitive environments.
- Advanced Control: The DEIF controller provides comprehensive monitoring and protection, ensuring safe and efficient operation.
- Cost-Effective: With low fuel consumption and long service life, this genset offers excellent value for money.
Option:
Customize your TG26PSD6 genset with a range of optional equipment to suit your specific needs. Choose from an ATS box, switch box, remote control, daily fuel tank, engine heater, water heater, PMG generator, parallel panel, fuel-water separator, trailer type, and a 3000-hour spare parts kit. These options ensure that your genset is tailored to your exact requirements.
FAQ:
Q: What is the fuel consumption of the TG26PSD6 genset?
A: The fuel consumption varies based on load. At 100% load, it consumes 5.0L/h; at 75% load, 3.7L/h; at 50% load, 2.5L/h; and at 25% load, 1.2L/h.
Q: How loud is the genset during operation?
A: The noise level is 65 dB(A) @ 7m, making it relatively quiet compared to other gensets in its class.
Q: Can the genset be used indoors?
A: Yes, thanks to its soundproof design, the TG26PSD6 is suitable for both indoor and outdoor use.
Q: What is the warranty period for the genset?
A: Please contact us for details on the warranty period and service support.
In conclusion, the TG26PSD6 Standby 26kVA Diesel Genset is a reliable and efficient power solution that combines the best of Perkins engine technology and TECGEN alternator expertise. With its advanced control system, versatile connectivity options, and customizable features, this genset is ready to meet your most demanding power needs. Whether you're looking for a permanent or temporary power solution, the TG26PSD6 is the perfect choice for ensuring uninterrupted power supply. Don't settle for anything less than the best – choose the TG26PSD6 Standby 26kVA Diesel Genset for your next power project.
