60Hz 72kW power generator silent power genset driven by Cummins engine with integrated fuel tank
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG99CSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 20 - 40 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open / Silent Type | Product Name | Cummins Diesel Generator |
|---|---|---|---|
| Frequency | 60Hz / 1800rpm | Engine Model | 4BTA3.9-G11 |
| Alternator Model | TGI224S72 | Output | 72kW |
| Fuel Tank | Integrated-Fuel-Tank | Controller | DEIF SGC-420 |
| Highlight | 72kW silent power genset,integrated fuel tank silent power genset,Cummins silent power genset |
||
Product Description

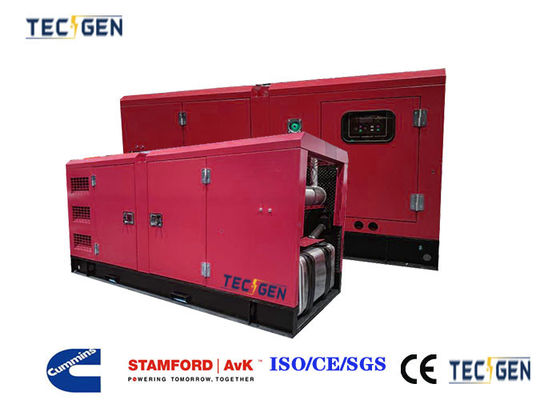

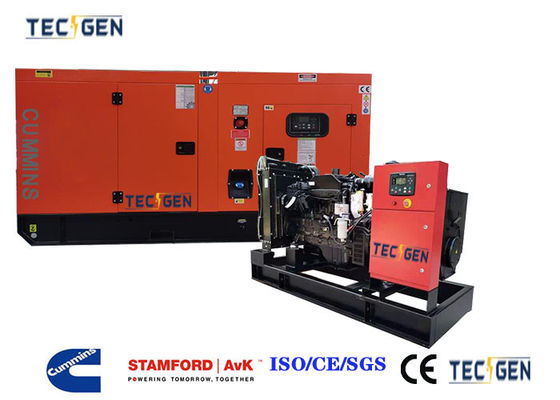

60Hz 72kW power generator silent power genset driven by Cummins engine with integrated fuel tank
Standard Features of the 60Hz 72kW Power Generator
Introducing our top-tier 60Hz 72kW Power Generator, a reliable and silent power solution designed to meet your energy needs efficiently. Equipped with a robust DCEC Cummins 4BTA3.9-G11 engine and a Leroy Somer TGI224S72 alternator, this generator set offers unmatched performance and durability. The DEIF SGC-420 controller ensures seamless operation and monitoring, while the Delixi 630A breaker provides safety and protection.
Key Features That Set Our Generator Apart
- Powerful Engine: The Cummins 4BTA3.9-G11 engine boasts a rated output of 80kW and a standby output of 90kW, delivering consistent and reliable power.
- Silent Operation: Engineered for minimal noise pollution, our generator operates at just 70dB(A) at 7 meters, making it an ideal choice for sensitive environments.
- Advanced Alternator: The Leroy Somer TGI224S72 alternator ensures stable voltage and frequency regulation, providing clean and consistent power output.
- Intuitive Control: The DEIF SGC-420 controller offers user-friendly interface and comprehensive monitoring capabilities, making it easy to manage and maintain the generator.
- Efficient Cooling System: Forced water cooling ensures optimal engine performance and extends the lifespan of the generator.
- Compact Design: With dimensions of L2700 * W1400 * H1600mm, our generator is designed to fit into tight spaces while maintaining high power output.
60Hz 72kW Power Generator Datasheets:
| 60Hz 72kW Power Generator Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG99CSD6 | 4BTA3.9-G11 | TGI224S72 | DEIF SGC-420 | 72kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 60Hz 72kW Power Generator | |||||
| Engine Model | 4BTA3.9-G11 | ||||
| Alternator Mode | TGI224S72 | ||||
| Rated Output | 90kVA / 72kW | ||||
| Standby Output | 99kVA / 79kW | ||||
| Rated Speed | 1800 RPM | ||||
| Frequency | 60 HZ | ||||
| Rated Voltage | 220V | ||||
| Rated Current | 409.1A | ||||
| Breaker | 630A Delixi Breaker | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 70dB(A) | ||||
| Net Weight | 1950KGS | ||||
| Genset size | L2700 * W1400 * H1600mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 60Hz 72kW Power Generator | |||||
| Manufacture | DCEC Cummins | ||||
| Model | 4BTA3.9-G11 | ||||
| Rated Output/Speed | 80KW/1800RPM | ||||
| Standby Output/Speed | 90KW/1800RPM | ||||
| Aspiration | Turbochanger& Aftercooler | ||||
| Speed Governor | Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 102*120mm | ||||
| Displacement | 3.9 L | ||||
| Compression ratio | 17.3:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1800rpm | ||||
| Fuel Consumption/rated output | 20.1L / h | ||||
| Fuel Consumption/standby output | 22.5 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 60Hz 72kW Power Generator | |||||
| Alternator Model | TGI224S72 | ||||
| Manufacture | Leroy Somer | ||||
| Rate Output | 72kW | ||||
| Rated voltage(V) | 220 V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 60Hz 72kW Power Generator | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | DEIF SGC-420 | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage of the 60Hz 72kW Power Generator
Our Silent Power Genset is perfect for a wide range of applications, including industrial, commercial, and residential use. It is ideal for backup power during outages, as a primary power source for remote locations, or for use in construction sites, hospitals, and other critical facilities. The generator's silent operation and compact design make it an excellent choice for events, outdoor activities, and other situations where noise must be minimized.
Advantages of Choosing Our 60Hz 72kW Power Generator
- Reliability: Backed by the renowned Cummins engine and Leroy Somer alternator, our generator is designed to withstand the harshest conditions and provide consistent power output.
- Efficiency: The advanced cooling system and fuel-efficient engine ensure optimal performance and reduce running costs.
- Ease of Use: The intuitive DEIF controller and simple maintenance procedures make it easy to operate and maintain the generator.
- Silent Operation: The generator's low noise level makes it suitable for use in noise-sensitive environments, such as hospitals, schools, and residential areas.
- Compact and Versatile: The generator's compact design allows it to be easily transported and installed in various locations.
Optional Features to Customize Your Generator
Upgrade your generator with our optional features for added convenience and functionality:
- Integrated Fuel Tank: Ensures continuous operation for extended periods without the need for frequent refueling.
- Water Heater: Keeps the engine warm during cold weather, ensuring quick and reliable startup.
- ATS (Automatic Transfer Switch): Automatically switches between the generator and main power supply, providing seamless power transition.
- PMG Generator: Offers precise voltage and frequency regulation, enhancing the generator's performance.
- SYNC Function: Allows synchronization with other generators for increased power output.
- Spare Parts Kit: Includes essential components for routine maintenance and repairs.
FAQs About the 60Hz 72kW Power Generator
Q: What is the fuel consumption of the generator?
A: The fuel consumption at rated output is 20.1L/h, and at standby output, it is 22.5L/h.
Q: How long can the generator run on a full fuel tank?
A: The standard fuel tank provides up to 8 hours of continuous operation.
Q: What is the noise level of the generator?
A: The generator operates at 70dB(A) at 7 meters, making it a silent power solution.
Q: What is the warranty period for the generator?
A: Please contact us for details about the warranty period and terms.
In conclusion, our 60Hz 72kW Power Generator - Silent Power Genset is a reliable, efficient, and silent power solution designed to meet your energy needs. With its advanced features, versatile applications, and optional upgrades, it is the perfect choice for a wide range of industries and environments. Don't miss out on this top-tier generator set and contact us today for more information and a quote.
