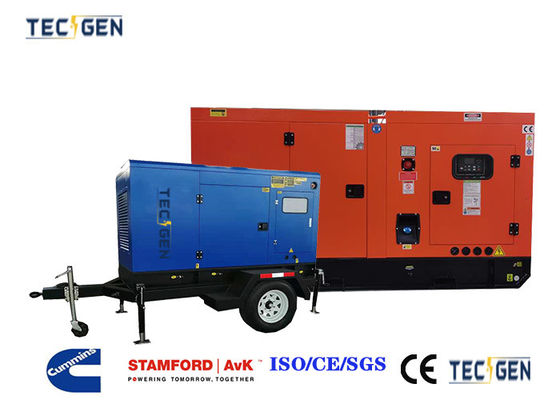

1800rpm 45kVA generating set silent Cummins genset option with mobile type for easy movable
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG50CSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 20 - 40 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent / Mobile Type | Product Name | Cummins Diesel Generator |
|---|---|---|---|
| Frequency | 60Hz / 1800rpm | Engine Model | 4BT3.9-G2 |
| Alternator Model | TGI184S36 | Output | 45kVA / 36kW |
| Voltage | 240V | Breaker | Delixi / CHNT / ABB |
| Highlight | 45kVA Cummins genset,1800rpm Cummins genset,Silent Cummins genset |
||
Product Description
1800rpm 45kVA generating set silent Cummins genset option with mobile type for easy movable
Standard Features

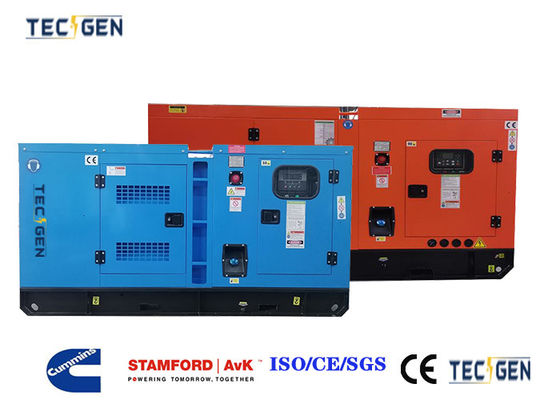

Introducing our top-tier 1800rpm 45kVA Generating Set, powered by a Cummins diesel engine, designed for both reliability and efficiency. This silent and soundproof generator set comes with a comprehensive array of standard features that cater to diverse power needs. Model TG50CSD6 boasts a robust design with a frequency of 60Hz, a voltage of 240V, and operates on three phases, ensuring smooth and stable power supply.
Key Features
Silent & Soundproof Operation: Engineered with advanced soundproofing technology, our generator operates at whisper-quiet levels, making it ideal for residential, commercial, and industrial applications where noise pollution is a concern.
Cummins Diesel Engine: The heart of this generating set is a Cummins 4BT3.9-G2 engine, known for its durability, fuel efficiency, and power output. With a rated power of 40kW and a displacement of 3.9L, it delivers consistent performance even under heavy loads.
Tecgen Alternator: The TGI184S36 alternator from Tecgen provides a prime power of 45kVA (36kW) and a standby power of 50kVA (40kW), ensuring reliable power backup during emergencies.
DEIF SGC-420 Controller: Equipped with the DEIF SGC-420 controller, this generating set offers advanced control features, including AMF module integration, automatic battery charging, and emergency stop functionality.
Versatile Connectivity: With options for ATS connection, RS485, CANbus, PLS, and BTS functions, our generator set is ready to integrate into various power management systems.
1800rpm 45kVA Generating Set Specifications:
| 1800rpm 45kVA Generating Set Details | |||
| Diesel Genset | Type | Silent & Soundproof | |
| Model | TG50CSD6 | ||
| Frequency | 60Hz | ||
| Speed | 1800rpm | ||
| Voltage | 240V | ||
| Phase | Three Phase | ||
| Prime Power | 45kVA / 36kW | ||
| Standby Power | 50kVA / 40kW | ||
| Rate Current | 108.3A | ||
| Breaker | Delixi / CHNT / ABB | ||
| Dimensions | L2400 x W1050 x H1400mm | ||
| Weight | 1400kgs | ||
| Fuel Capacity | 100L | ||
| General Features | |||
| Engine | Cummins | Radiator | 50degrees max, fans driven by belt with safety guard |
| Alternator | Tecgen | Charger | 24V trickle charger |
| Controller | DEIF SGC-420 | Governor | Mechanical or electronic |
| Circuit Breaker | DELIXI / CHNT / ABB | Canopy | Soundproof made by galvanized steel plate |
| ATS | AISIKAI/ABB | Filters | Dry type air filter, fuel filter, oil filter |
| Fuel Tank | 8hours / 12hours / 24hours, or as required | Absorber | High strength rubber |
| Start System | 12/24V electric start | Muffler | Ripple flex exhaust pipe, exhaust siphon, flange |
| Battery | Varta Maintenance free type | Manuals | Complete with engine, alternator and genset |
| Cummins Diesel Engine Technical Data | |||
| Brand | DCEC Cummins | ||
| Engine Model | 4BT3.9-G2 | ||
| Rated Power | 40kW | ||
| Cylinder | 4 Cylinder | ||
| Bore*Stroke | 102*120mm | ||
| Compression Ratio | 18:1 | ||
| Displacement | 3.9L | ||
| Aspiration | Turbochanger | ||
| Speed | 1800rpm | ||
| Cooling System | Water Cooled | ||
| Fuel Consumption at 100% Load | 10.7L | ||
| Speed Governor | Electric | ||
| Start System | 12/24V Electric Starter | ||
| Option Engine Brands | |||
| Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai, FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar, MITSUBISHI., ETC | |||
| AC Alternator Technical Data | |||
| Brand | Tecgen | ||
| Alternator Model | TGI184S36 | ||
| Rate Power | 36kW | ||
| Speed | 1800rpm | ||
| Frequency | 60Hz | ||
| Phase | Three Phase, Four Wire | ||
| Power Factor | 0.8 | ||
| Exciter type | Single bearing, brushless, Self-excited | ||
| Voltage adjust range | ≥5% | ||
| Insulation Grade | H | ||
| Protection Grade | IP23 | ||
| Option Alternator Brands | |||
| Stamford, Leory Somer, Meccalte, Marathon, Tecgen | |||
| Controller System | |||
| Brand | DEIF | ||
| Model | SGC-420 | ||
| Functions | Control with AMF module | ||
| Static with auto. battery charger | |||
| Emergency stop push button | |||
| ATS Connection & RS485 & CANbus & PLS & BTS Functions | |||
| Alarms | Over and Under Speed | ||
| Low and High Battery Voltage | |||
| Start and Stop Failure | |||
| Charge Fail | |||
| Over Current | |||
| Under / Over Generator Voltage | |||
| Low Oil Pressure | |||
| Emergency Stop | |||
| High Engine Temperature | |||
| Over Load | |||
| OPTIONAL EQUIPMENTS | |||
| Daily Fuel Tank | Parallel Panel | Remote Control Panel | Soundproof Type |
| Engine Heater | Permanent Magnet | Auto. Transfer Switch | Trailer Type |
| Water Heater | Generator (PMG) | Switch Box | Spare Parts |
Usage
Our 1800rpm 45kVA Generating Set is perfect for a wide range of applications, including hospitals, data centers, construction sites, offices, and homes. It serves as an essential power backup solution during outages, ensuring continuous operation of critical equipment and appliances.
Advantages
Fuel Efficiency: With a fuel consumption rate of 10.7L at 100% load, this generator set offers excellent fuel economy, reducing operational costs.
Durability: Constructed from high-quality materials and designed with rigorous safety measures, our generator set is built to last, ensuring long-term performance and reliability.
Easy Maintenance: The engine and alternator come with comprehensive manuals, making maintenance and troubleshooting straightforward and efficient.
Soundproof Design: The soundproof canopy made of galvanized steel plate ensures minimal noise pollution, making it suitable for sensitive environments.
Options
Customize your generating set with a variety of optional features:
- Daily Fuel Tank: Choose from 8-hour, 12-hour, or 24-hour fuel tanks to suit your power needs.
- Parallel Panel: Easily connect multiple generators for increased power output.
- Remote Control Panel: Monitor and control your generator set remotely for added convenience.
- Engine Heater: Protect your engine from cold weather conditions.
- Permanent Magnet Generator (PMG): For enhanced power quality and reliability.
- Auto. Transfer Switch (ATS): Automatically switches between power sources during outages.
- Trailer Type: Mobile generator sets for easy transportation and deployment.
FAQs
Q: What is the fuel consumption rate of this generator set?
A: The fuel consumption rate is 10.7L at 100% load.
Q: Is this generator set silent?
A: Yes, it is designed with advanced soundproofing technology to minimize noise pollution.
Q: Can I connect multiple generator sets together?
A: Yes, with the optional parallel panel, you can connect multiple generator sets for increased power output.
Q: What kind of engine does this generator set use?
A: It uses a Cummins 4BT3.9-G2 diesel engine, known for its durability and power output.
Q: Is there an automatic transfer switch available?
A: Yes, an optional automatic transfer switch (ATS) is available for seamless power transfer during outages.
By leveraging the power of a Cummins diesel engine and a Tecgen alternator, our 1800rpm 45kVA Generating Set offers unparalleled performance and reliability. Its silent and soundproof design makes it an ideal choice for various applications, ensuring continuous power supply even during emergencies. With a range of optional features and comprehensive support, our generating set is ready to meet your specific power needs.
