60Hz 20kW Silent genset silent Cummins generator with 100A ATS box for residential backup power
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG28CSD6 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 20 - 40 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent / Mobile Type | Product Name | Cummins Diesel Generator |
|---|---|---|---|
| Frequency | 60Hz / 1800rpm | Engine Model | Cummins 4B3.9-G11 |
| Alternator Model | TGI184S20 | Output | 20kW / 25kVA |
| Voltage | 208/120V | ATS | 100A Aisikai ATS Box |
| Highlight | Residential Backup Power Cummins generator,60Hz Cummins generator,20kW Cummins generator |
||
Product Description

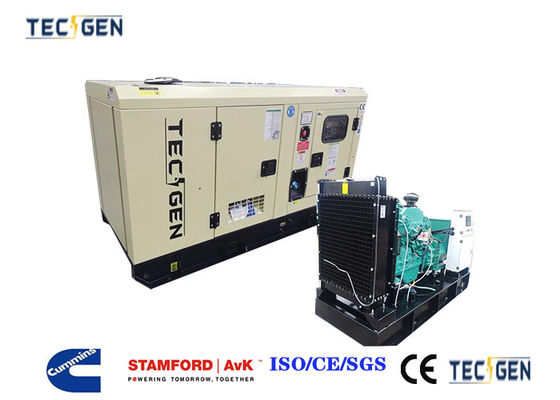

60Hz 20kW Silent genset silent Cummins generator with 100A ATS box for residential backup power
Standard Features:
Discover the power and tranquility of our 60Hz 20kW Silent Genset, model TG28CSD6. Engineered for both reliability and silent operation, this generator set is designed to meet your power needs without disturbing your peace. The Cummins 4B3.9-G11 engine, paired with the TECGEN TGI184S20 alternator, provides a seamless blend of performance and efficiency. Operating at 1800RPM, it delivers a rated power of 20kW / 25kVA and a standby power of 22kW / 28kVA, ensuring you have the backup power you need when the grid fails.
Key Features:
- Silent Operation: The silent design ensures minimal noise pollution, making it ideal for residential, commercial, and sensitive environments.
- Powerful Engine: The Cummins 4B3.9-G11 engine is known for its durability and fuel efficiency, offering prime/standby power of 23kW / 26kW.
- Advanced Alternator: The TECGEN TGI184S20 alternator ensures stable and clean power output, perfect for sensitive electronics and appliances.
- Compact and Portable: With dimensions of 2300mm (L) x 980mm (W) x 1460mm (H) and a weight of 1150kg, this genset is easy to transport and install.
- Intelligent Control: The DEIF SGC-420 controller system provides advanced automation features, including AMF module, automatic battery charger, emergency stop push button, and ATS connection.
60Hz 20kW Silent Genset Datasheets:
| Technical Specification: | |
| 60Hz 20kW Silent Genset Specification | |
| Genset Model | TG28CSD6 |
| Silent | |
| Frequency | 60Hz |
| Rate Speed | 1800RPM |
| Voltage | 208/120V |
| Phase | 3 Phase, 4 or 12 Wires |
| Rate Current | 69.4A |
| Rate Power | 20kW / 25kVA |
| Standby Power | 22kW / 28kVA |
| Engine Model | Cummins 4B3.9-G11 |
| Alternator Model | TGI184S20 |
| ATS | 100A Aisikai ATS Box |
| Controller | DSE6020 |
| Weight & Dimensions | |
| Length (mm) | 2300 |
| width (mm) | 980 |
| Height (mm) | 1460 |
| Weight (kgs) | 1150 |
| Engine Specification | |
| Brand | DCEC Cummins |
| Engine Model | 4B3.9-G11 |
| Prime/Standby power | 23kW / 26kW |
| Injection | Indirect |
| Aspiration | Naturally Aspirated |
| No. of cylinders | 4 |
| Speed | 1800RPM |
| Bore of Stroke (mm) | 102 x 120 |
| Displacement (L) | 3.9 |
| Cooling | Water Cooled |
| Compression Ratio | 18:1 |
| Engine Oil capacity (L) | 7.2 |
| Coolant Capacity ( In radiator) | 7.2 |
| Governor | MECH |
| Air Filter | Dry Element |
| Fuel consumption | @ 60Hz |
| 100% Load (L/h) | 5.7 |
| 75% Load (L/h) | 4.6 |
| 50% Load (L/h) | 3.7 |
| 25% Load (L/h) | 2.4 |
| Alternator Specification | |
| Brand | TECGEN |
| Model | TGI184S20 |
| Rate Output | 20kW |
| Speed | 1800RPM |
| Pole | 4 |
| Winding Connections | Star |
| Insulation Class | H |
| Enclosure | IP23 |
| Altitude (m) | ≤1000 |
| Voltage Regulator | AVR |
| Steady State Voltage Regulator | 1% |
| Bearing | Single |
| Controller System | |
| Brand | DEIF |
| Model | SGC-420 |
| Functions | Control with AMF module |
| Static with auto. battery charger | |
| Emergency stop push button | |
| ATS Connection | |
| OPTIONAL EQUIPMENTS | |
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | |
Usage:
Our 60Hz 20kW Silent Genset is perfect for a wide range of applications, including residential backup power, commercial standby power, and even remote industrial use. Whether you need to power your home essentials during a power outage or ensure continuous operation of your business, this generator set will provide the reliable and silent power you need.
Advantage:
- Quiet and Efficient: The silent design and fuel-efficient engine make this genset an excellent choice for noise-sensitive areas.
- Durable and Reliable: Built with high-quality components, the Cummins engine and TECGEN alternator ensure long-lasting performance.
- Easy to Maintain: The user-friendly design and access to critical components make maintenance quick and straightforward.
- Versatile: Suitable for a variety of applications, from home backup to commercial use.
Options:
Customize your 60Hz 20kW Silent Genset with a range of optional equipment to suit your specific needs:

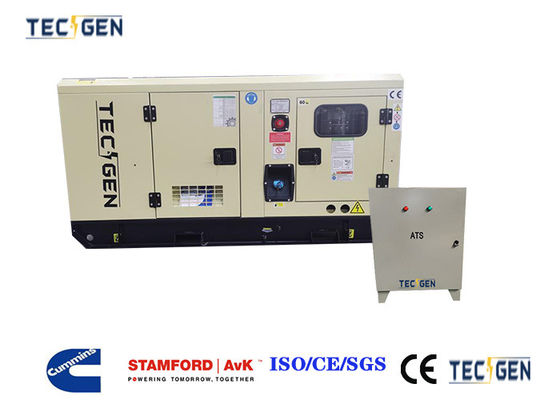

- ATS Box: Automatic Transfer Switch for seamless power transfer between the genset and the utility grid.
- Switch Box: Manual transfer switch for manual power transfer.
- Remote Control: Operate and monitor your genset remotely via a smartphone or computer.
- Daily Fuel Tank: Ensure a continuous supply of fuel with an optional daily fuel tank.
- Engine and Water Heater: Keep your genset warm in cold climates for optimal performance.
- PMG Generator: Provides precise voltage and frequency regulation for sensitive loads.
- Parallel Panel: Connect multiple gensets for increased power output.
- Fuel-Water Separator: Protect your engine from water contamination in fuel.
- Trailer Type: Convert your genset into a mobile power station with an optional trailer.
- 3000 Hours Spare Parts: Ensure you have the necessary parts on hand for routine maintenance and repairs.
FAQ:
- Q: How noisy is this genset?
A: Our 60Hz 20kW Silent Genset is designed for minimal noise pollution, making it suitable for noise-sensitive environments. - Q: What type of fuel does it use?
A: This genset is designed to run on diesel fuel. - Q: How long can it run on a full tank of fuel?
A: Runtime depends on the load and fuel tank capacity. Please consult the spec sheet for more details. - Q: Is it easy to maintain?
A: Yes, the user-friendly design and access to critical components make maintenance quick and straightforward.
With its silent operation, powerful engine, and advanced features, our 60Hz 20kW Silent Genset is the perfect solution for your backup power needs. Don't let a power outage disrupt your life or business – choose the Silent Cummins Generator that provides reliable and silent power when you need it most. For more information or to place an order, visit our website today!
