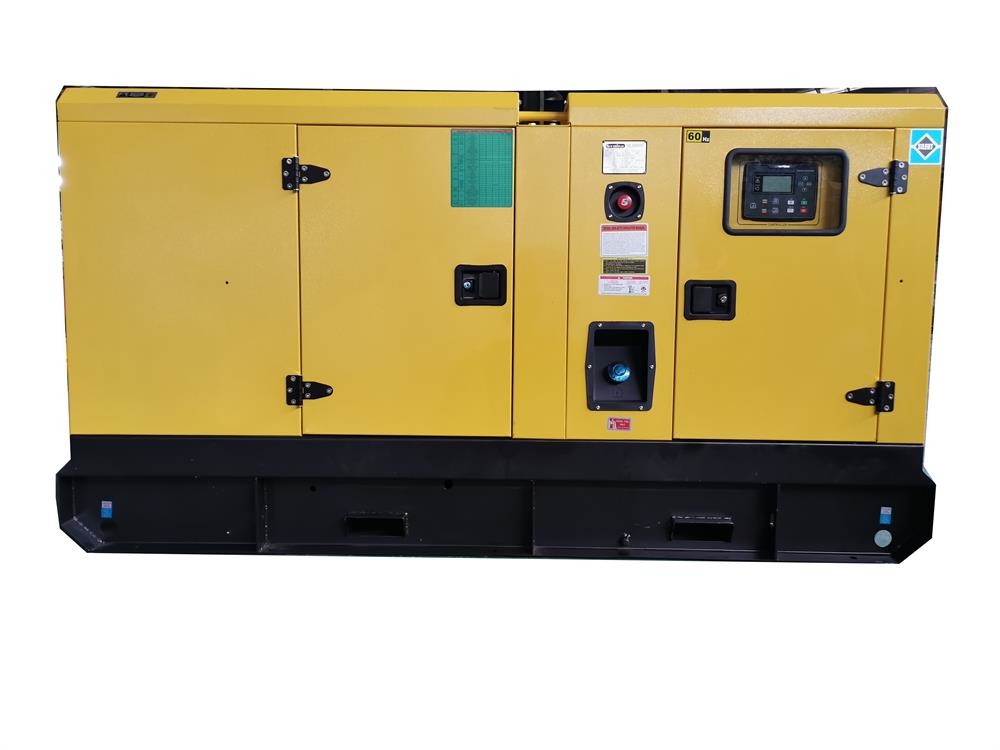

120kW Weichai Diesel Generator 150kVA Silent Diesel Generator Set

120kW Weichai Diesel Powered Generator 150kVA Rate Silent Genereator Set

Standard Configuration of Weichai diesel engine genset:

1. Powered by Weichai Engine

• The genset is designed to work with a Weichai engine, which ensures reliable performance and energy efficiency.
• The Weichai engine is renowned for its durability and longevity, delivering consistent power output and dependable operation.

2. Leroy Somer Alternator (Stamford, Meccalte for option)

• The Leroy Somer alternator, renowned worldwide for its performance and quality, is factory-fitted as standard.
• For additional options, Stamford, Mecc Alte or Copy Stamford alternators are also available.

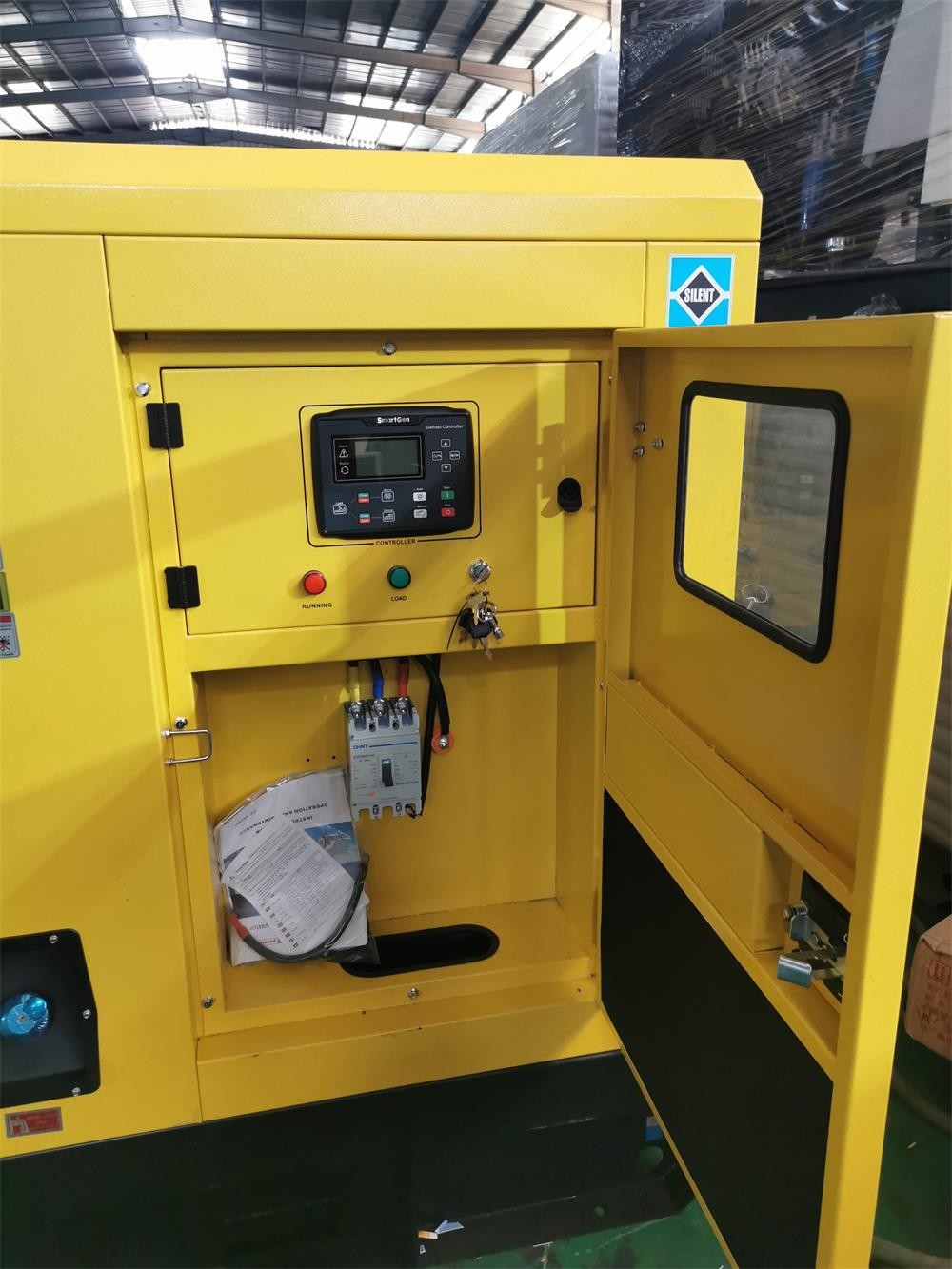

3. Deepsea HGM 6120N Control Panel as Standard, AMF Control Panel Deepsea DSE7320 & Smartgen HGM6120N for Option, ATS for Option

• The Deepsea HGM 6110N control panel is factory-fitted as standard equipment, providing user-friendly controls and easy operation.
• AMF control panel options include the Deepsea DSE7320 and Smartgen HGM6120N models, providing additional features and functions for enhanced genset performance and monitoring.
• Optional ATS (Automatic Transfer Switch) is available for seamless switching between different power sources, ensuring uninterrupted power supply operation.

4. CHINT Breaker as Standard, ABB, Schneider Breaker for Option

• The CHINT breaker is factory-fitted as standard equipment, providing reliable and safe power distribution and circuit protection.
• For additional options, ABB and Schneider breakers are also available for added circuit protection and enhanced safety features.

5. 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)

• The genset is equipped with 8 working hours base fuel tank as standard equipment, suitable for prime power generation of gensets up to 650kVA capacity.
• Additional options include a base frame for other models, ensuring a stable foundation for the genset and enhancing its performance and durability.

6. Anti-Vibration Mounted System

• The genset is equipped with an anti-vibration mounted system to reduce mechanical stress and ensure smooth operation under various conditions.
• This system buffers the genset from external vibrations, ensuring stable power output and longevity of the equipment.

7. Battery and Battery Switch

• The genset is equipped with a battery to provide standby power supply in case of main power failure.
• The battery switch allows easy access to the battery for replacement or maintenance purposes.

8. Industrial Silencer and Flexible Exhaust Hose

• The genset is equipped with an industrial silencer to reduce noise emissions to an acceptable level, ensuring compliance with environmental regulations and providing a comfortable working environment.
• The flexible exhaust hose allows for easy installation and maintenance of the genset exhaust system, while also reducing noise emissions.

TECHNICAL DATA:

Engine System

• Heavy-duty diesel engine
• Four-stroke and water-cooled
• 12V and 24V starters and charging alternators
• Cooling radiator and fan
• Maintenance-free battery with rectifier and cable
• Flexible fuel connection hoses and manual oil sump drain valve
• Exhaust silencer
• Mechanical or electronic governors
• Fuel injection pump
• Electric motor starting system
• Forged steel crankshaft, cast iron cylinder and replaceable wet cylinder liner
• Low exhaust emissions and low fuel consumption
• Easy to install and maintain

• Alternator system
• Brushless design and single bearing structure
• Flexible disc for easy installation
• Insulation class: H
• Protection class: IP23
• Self-excitation and self-regulation capabilities

• Canopy
• All canopies are designed based on modular principles
• All metal canopy parts are painted with electrostatic polyester paint
• Soundproof design ensures noise levels are kept to a minimum
• Easy to lift and move
• Convenient to maintain and operate
• Base Frame
• Base frame includes fork lift and crane positions
• Integral fuel tank included
• Daily fuel tank able to provide continuous operation for 8-24 hours
• Fuel tank easy to maintain and clean
• Anti-vibration pads are used between the engine and alternator

• Control system
• Controller brand: Deepsea, ComAp, Smartgen, DATAKOM, MEBAY
• Control panel with English interface, LED screen and touch buttons for easy operation and monitoring.
• Control, monitor, and protect the generator set including:
• High water temperature alarm
• Low oil pressure alarm
• Over-speed and under-speed alarm
• Over current alarm
• Under/over generator voltage alarm
• Start and stop failure alarm
• Low and high battery voltage alarm
• Charge failure alarm
• Emergency stop function

^ Warranty
Warranty period is 1500 hours or 18 months from shipment (whichever comes first).
Improper operation and maintenance will not be covered by the warranty.
