208V Cummins Diesel Generators
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Production | Cummins Genset | Rate Output | 28kW / 35kVA |
|---|---|---|---|
| Standby Output | 31kW /39kVA | Frequency | 60Hz |
| Voltage | 208 / 120V | Phase | 1 Phase / 3 Phase |
| Engine Model | DCEC 4B3.9G12 | Alternator Model | Stamford PI 144H |
| Type | Silent / Soundproof | Canopy Color | RAL 3020 |
| Highlight | 208V Cummins Diesel Generators,35kVA Cummins Diesel Generators,60Hz cummins diesel genset |
||
Product Description
28kW / 35kVA Cummins Diesel Generator Set BULK Production Cummins 4B3.9G12 Silent Diesel Genset 60Hz 208V
DCEC Cummins Series Diesel Generating Set:
- Genset output range: 20kW to 400kW
- Engine types: 4B, 6B, 6C, 6L, QSM, 6Z, QSZ series
- Manufacturer: Dongfeng Cummins Engine Co., Ltd.
CCEC Cummins Series Diesel Power Generating Set:
- Genset output range: 200kW to 1200kW
- Engine types: N855, M11, QSNT, K19, K38, QKS38, K50 series
- Manufacturer: Chongqing Cummins Engine Co., Ltd.
TECHNICAL DATA:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG39CD6 | TG39CSD6 |
| Open | Silent | |
| Frequency | 60Hz | |
| Rate Speed | 1800RPM | |
| Voltage | 208/120V | |
| Phase | 3 Phase, 4 or 12 Wires | |
| Rate Current | 97.2A | |
| Prime Power | 28kW / 35kVA | |
| Standby Power | 31kW / 39kVA | |
| Engine Model | Cummins 4B3.9G12 | |
| Alternator Model | Stamford PI 144H | |
| Controller | DEEPSEA DSE6020 | |
| Weight & Dimensions | ||
| Length (mm) | 1750 | 2300 |
| width (mm) | 840 | 980 |
| Height (mm) | 1360 | 1460 |
| Weight (kgs) | 870 | 1230 |
| Engine Specifications | ||
| Brand | DCEC Cummins | |
| Engine Model | 4B3.9G12 | |
| Prime/Standby power | 33kW / 36kW | |
| Injection | Indirect | |
| Aspiration | Naturally Aspirated | |
| No. of cylinders | 4 | |
| Speed | 1800RPM | |
| Bore of Stroke (mm) | 102 x 120 | |
| Displacement (L) | 3.9 | |
| Cooling | Water Cooled | |
| Compression Ratio | 18:1 | |
| Engine Oil capacity (L) | 7.2 | |
| Coolant Capacity ( In radiator) | 7.2 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | @ 60Hz | |
| 100% Load (L/h) | 9.4 | |
| 75% Load (L/h) | 7.5 | |
| 50% Load (L/h) | 5.5 | |
| 25% Load (L/h) | 4.0 | |
| Alternator Specification | ||
| Brand | Cummins Generator Technologies | |
| Model | PI 144H | |
| Rate Output (kVA) | 35 | |
| Speed | 1800RPM | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Deepsea | |
| Model | DSE6020 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Cummins Genset Standard Configuration:

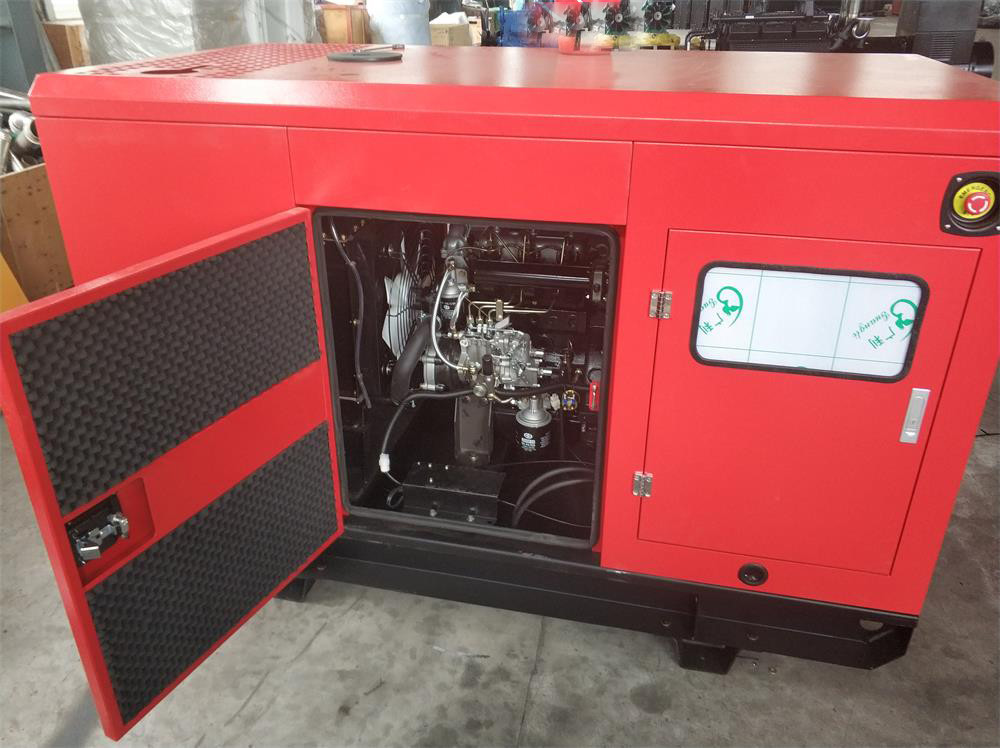

Engine system
- Heavy-duty diesel engine
- Four-stroke, water-cooled design
- 12V and 24V starter and charging alternator
- Cooling radiator and fan
- Maintenance-free battery with lead and cable
- Flexible fuel connection hoses and manual oil sump drain valve
- Exhaust silencer pipe
- Electronic governing system
- Fuel injection pump
- Electric motor starting system
- Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
- Low fuel consumption and low discharge
- Easy installation and maintenance
Alternator
- Chinese brand, brushless, single bearing, flexible disc design
- Insulation class: H
- Protection class: IP23
- Self-exciting and self-regulating
- Three-phase, four-wire configuration
- AVR (Automatic Voltage Regulator)

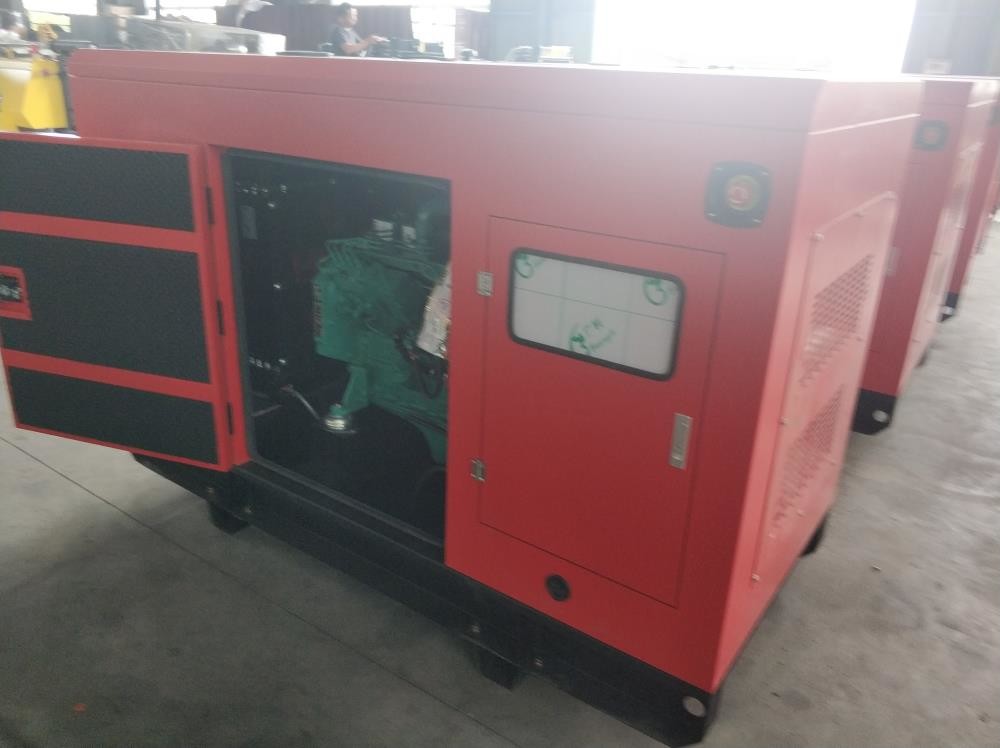

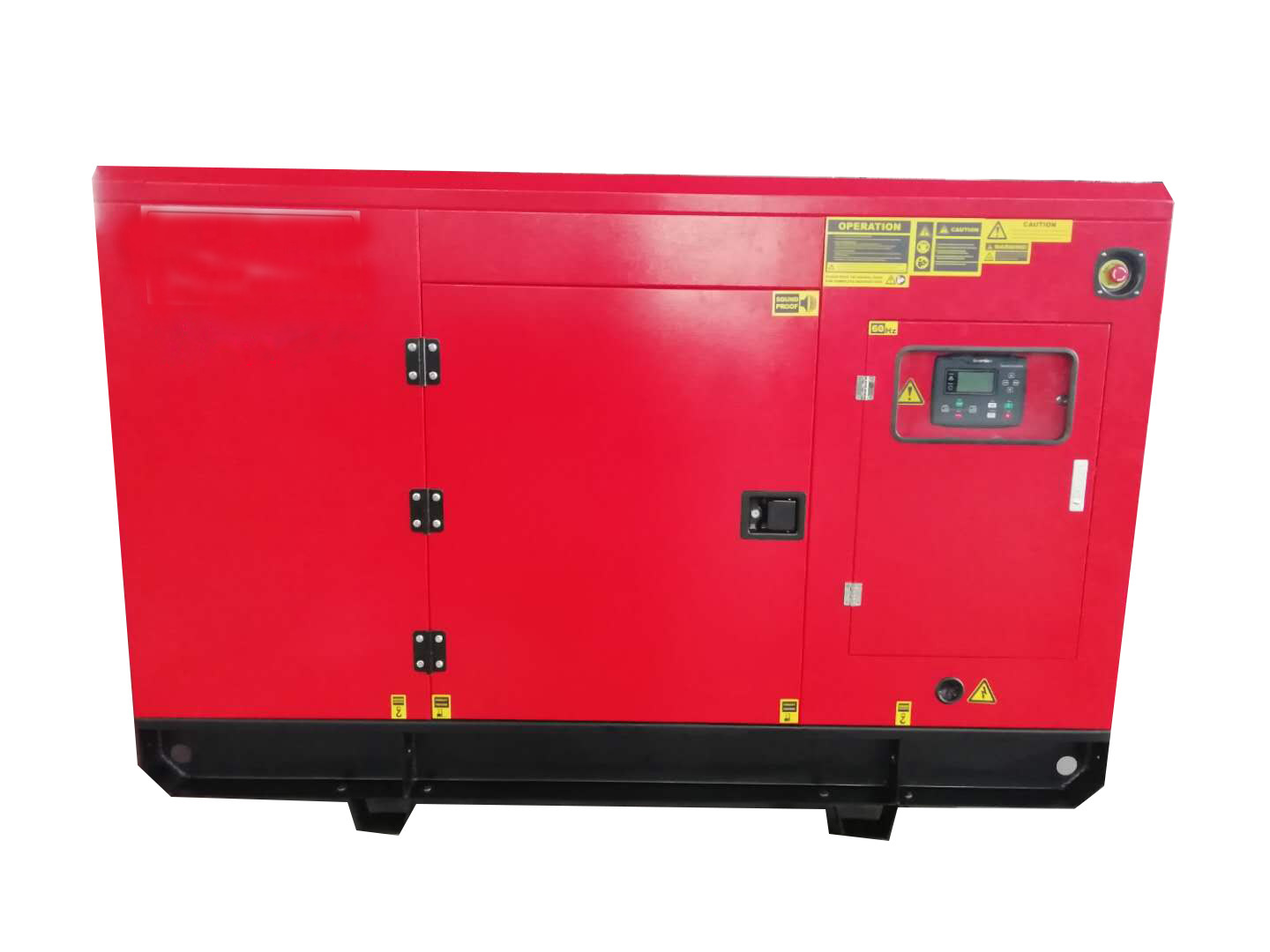

Soundproof Canopy
- All canopies designed with modular principles
- All metal canopy parts painted with electrostatic polyester power paint
- Soundproof design ensures noise levels are controlled within a small range
- Easy to lift and move
- Easy to maintain and operate
- Base Frame
- Base frame includes positions for forklift and crane operation
- Integral fuel tank included
- Daily fuel tank continuously supplies for 8-24 hours (According to customer requirements)
- Fuel tank is easy to maintain and clean
- Anti-vibration pads are flexed between the engine and alternator.
Control system
- Controller brand options including Deepsea, ComAp, Smartgen, Mebay
- Control panel with English interface, LED screen and touch buttons for ease of operation.* Controls, monitors, and protects the generator set, including:
- High water temperature alarm
- Low oil pressure alarm
- Over and under speed alarm
- Over current alarm
- Under/over generator voltage alarm
- Start and stop failure alarm
- Low and high battery voltage alarm
- Charge failure alarm
- Emergency stop function
Frequently Asked Questions (FAQ):
- How do I purchase your product?
You can place an order directly through email, WhatsApp or Wechat. - Do buyers need to contact the seller after placing an order?
No, we will contact you as soon as possible and begin preparing your generator set for production. - How long does it take to receive the product after placing an order?
7-15 days from the deposit being received. After your order is placed, we will contact you and provide you with the specific timeframe. - What is the minimum order quantity (MOQ)?
The MOQ is 1 unit. - Are you a manufacturer or trading company?
We are a manufacturer with three large, owned factories as well as R&D teams and foreign trade teams. - How is spare parts supply for generators provided?
During the warranty period, we can send you free spare parts by DHL. - What type of diesel fuel is used?
#0 diesel fuel is used.
If you are interested in TECGEN generator sets, please feel free to contact us. Welcome to visit TECGEN!
