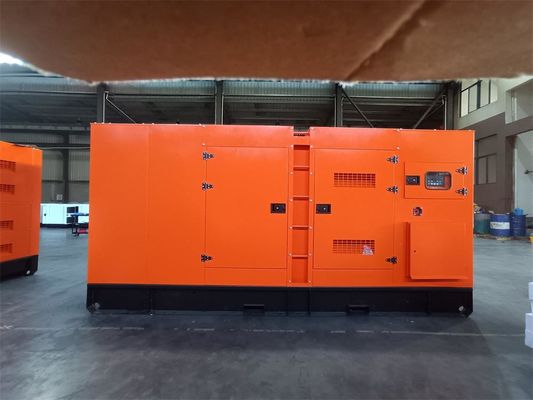

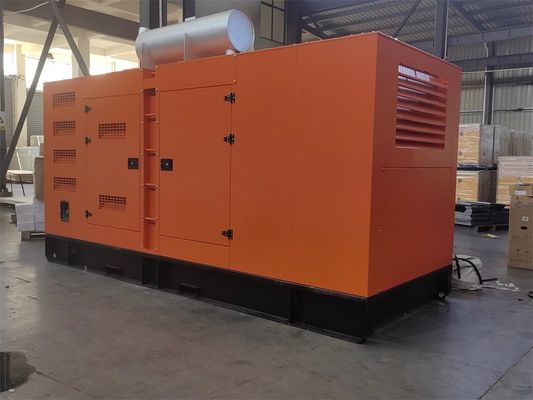

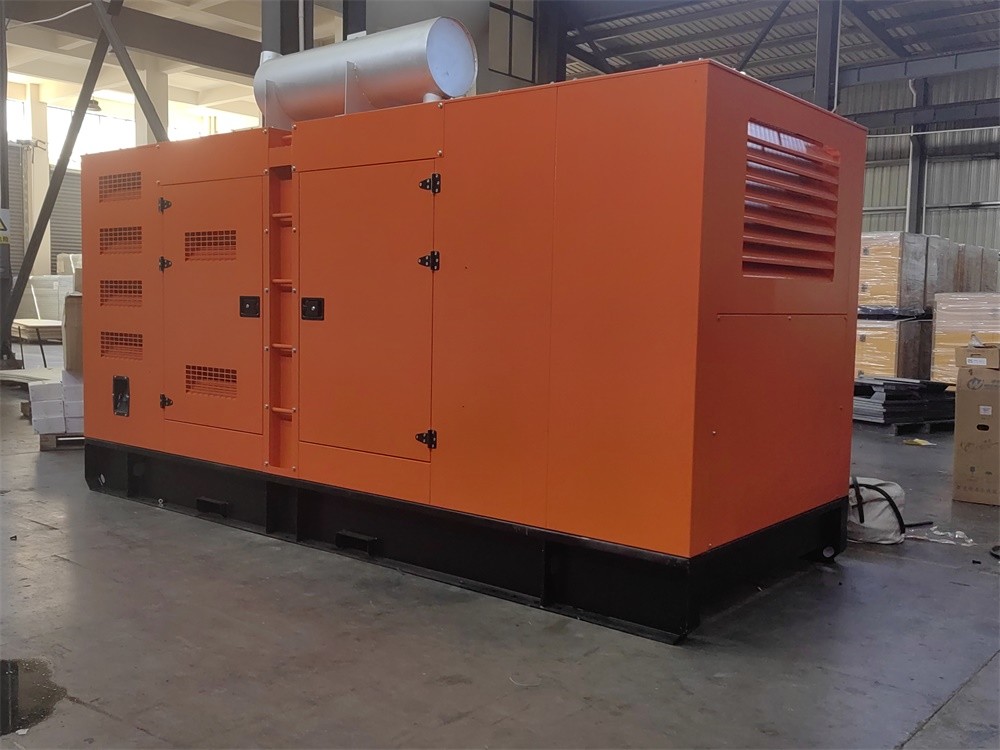

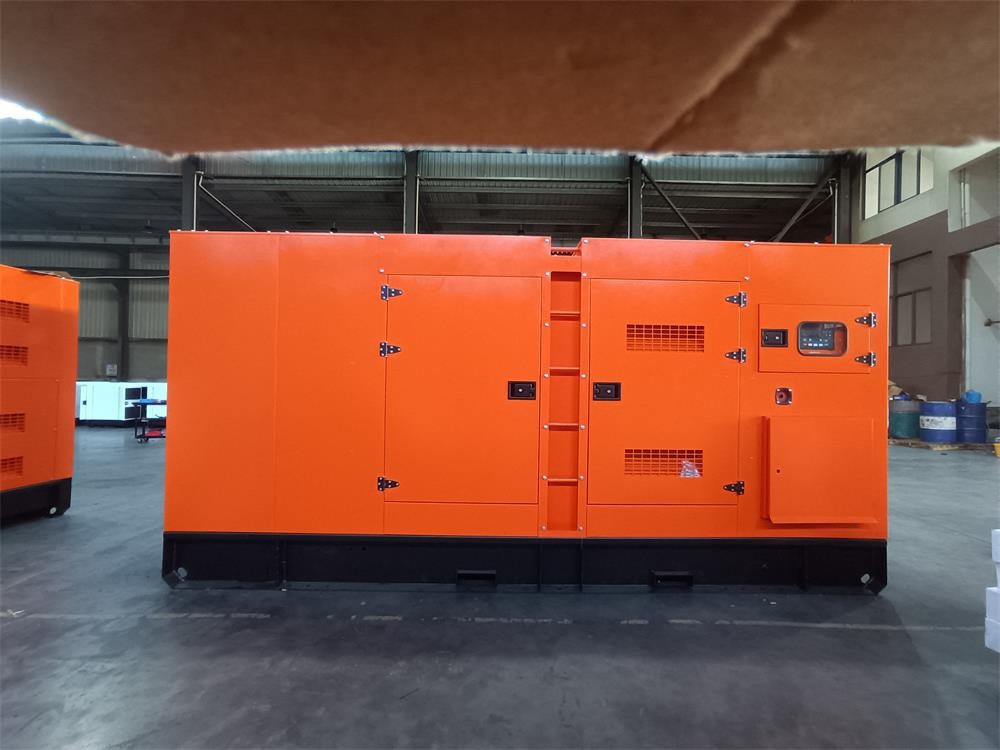

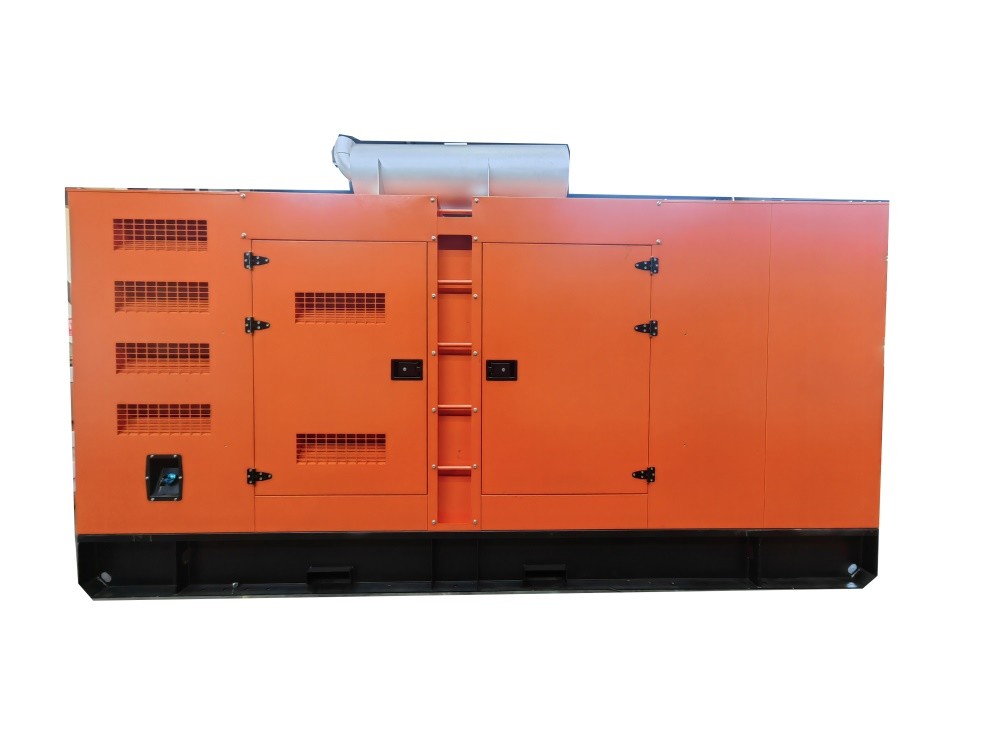

500kVA Cummins Silent Generator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | 400kW Cummins Genset | Genset Prime Power | 400kW / 500kVA |
|---|---|---|---|
| Genset Standby Power | 440kW / 550kVA | Frequency | 50Hz |
| Voltage | 400 / 230V | Engine Model | DCEC QSZ13-G10 |
| Alternator Model | TGI354S400 | CController | DEEPSEA 7320 |
| Breaker | 1600A MCB Breaker | Governor | ECU |
| Genset Type | Silent | Canopy Color | RAL Series Colors |
| Highlight | 500kVA Cummins Silent Generator,400kW Cummins Silent Generator,230V cummins powered generator |
||
Product Description
400kW Industrial Generator Set Powered by DCEC Cummins Diesel Engine Couple with Copy Stamford Alternator 500kVA
Diesel Generator Set / Silent Diesel Generator Set / Soundproof Diesel Generator Set / Trailer Diesel Generator Set / Container Diesel Generator Set
Safety - Stability - Economy - Reliability Power
Our gensets comply with all major standards, including: GB/T2820, ISO8528, IEC34, CE standards
Prime output power: 20kVA – 1570kVA (16kW - 1260kW)
Rated voltage: 120/208V, 128/220V,120V/240V, 220/380V, 230V/400V,240V/415VV, 254V/440V etc.
Phase/connection: 3 Phase, 4 wire Or 3 Phase, 12 Wire for 60Hz
Rated frequency: 50Hz@1500rpm, 60Hz@1800rpm
Alternator excited type: Brushless, self excited or PMG
Insulation class: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%
TECHNICAL DATA:
| Technical Specification: | ||
| Generator Set Specification | ||
| Genset Model | TG550C | TG550CS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 721.7A | |
| Prime Power | 400kW / 500kVA | |
| Standby Power | 440kW / 550kVA | |
| Engine Model | QSZ13-G10 | |
| Alternator Model | TGI354S400 | |
| Controller | DSE7320 | |
| Weight & Dimensions | ||
| Length (mm) | 3400 | 4200 |
| width (mm) | 1270 | 1730 |
| Height (mm) | 2100 | 2230 |
| Weight (kgs) | 4166 | 5300 |
| Engine Specification | ||
| Brand | Cummins | |
| Engine Model | QSZ13-G10 | |
| Prime/Standby power (kW) | 463 / 509 | |
| Injection | Indirect | |
| Aspiration | Turbocharged and Intercooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 130 x 163 | |
| Displacement (L) | 25.8 | |
| Cooling | water | |
| Compression Ratio | 17:1 | |
| Engine Oil capacity (L) | 13 | |
| Coolant Capacity ( In radiator) | 13 | |
| Governor | ECU | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 95 | |
| 75% Load (L/h) | 71 | |
| 50% Load (L/h) | 48 | |
| 25% Load (L/h) | 24 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI354S400 | |
| Rate Output (kVA) | 500 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Deepsea | |
| Model | DSE7320 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Tecgen 400kW Industrial Power Generator Powered by Cummins Diesel Engine Feature:
1, Output range: 20kVA to 1500kVA Heavy Duty Cummins diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Leroy Somer, Meccalte alternator or Chinese Tecgen Power alternator
4, Open type, silent type, super silent type, container silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, CHNT circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Working Hours Base Fuel Tank
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Warranty with 1500 hours or one year, which comes first.
All Generators set can install wheel. It depends on your requirements. If we done this, the machine can move around easily.
Why Choose Us:
1, Since 2008, with over 15years manufacturer experience.
2, Rich experience in OEM orders.
3, Advanced production equipment.
4, Own design team, can help you custom the packaging.
We are a professional manufacturer for generators, alternator, motor and water pumps with integrating development, production and sales. Factory located in one of the early open cities Fuan, with more than 10,000 square meters. Warmly welcome all partners to join usfor mutual benefits cooperation.
