Chinese Genset 10KVA-220KVA Diesel Ricardo Open Type Genset 10KW-200KW
| Place of Origin | China |
|---|---|
| Brand Name | Ricardo |
| Certification | CE/SONCAP/FCC/SGS |
| Model Number | TG100R |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood case Package or Plastic film package in container |
| Delivery Time | 15-20 working days after received deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Diesel Generator Set | Genset Type | Open Or Silent |
|---|---|---|---|
| Engine Brand | Ricardo | Alternator Brand | Tecgen |
| Control System | AMF/ATS | Output Type | AC Three Phase |
| Cooling Method | Water Cooling | Conditions Of Use | Land Use |
| Ambient Temp | ≤40 C | Genset Color | Color Is Optional |
| Highlight | 220KVA open type genset,Ricardo open type genset,200KW chinese genset |
||
Product Description

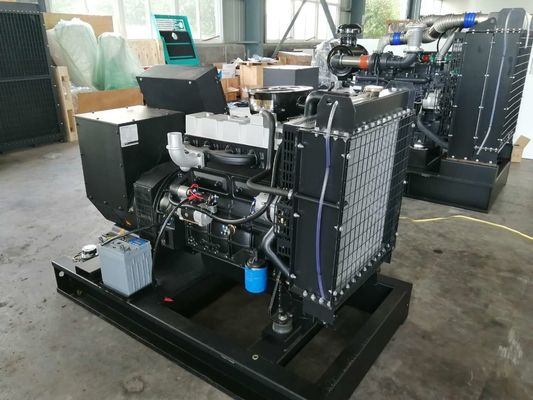

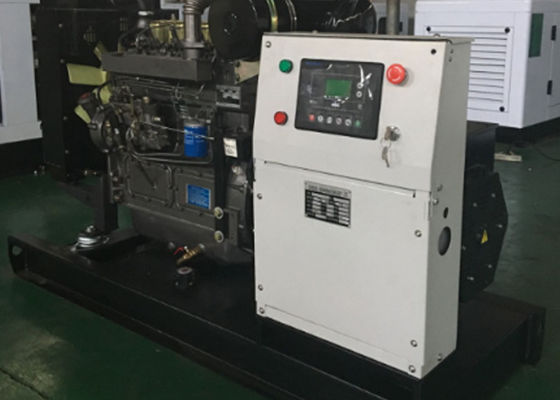

Chinese Genset 10KVA --220KVA 10KW--200KW Open Type Generator Diesel Genset Open Skid Ricardo Diesel Generator
1) Engine: Ricardo diesel engine, Water-cooled
2) Alternator: Tecgen Stamford Tech Alternator
Brushless H class insulation, Self excitation, IP 23 protection, AVR regulator,THF < 5%,low radio interference.
3) 3 phase 4 wires / 1 phase 2 wires
4) Three phase voltage Available :208V/220V/230V/240V/380V/390V/400V/415V/440V/460V/480V
Single phase available:100-250V
PRODUCTS DETAILS
50HZ 3Phase 380V
| Genset Model | Standby Power | Prime Power | Diesel Engine | Alternator | ||
| KVA | KW | KVA | KW | Ricardo | Tecgen Stamford | |
| TG14N | 14 | 11 | 13 | 10 | M4D18 | TG164S-10 |
| TG18N | 18 | 14 | 16 | 13 | M4D18 | TG164S-13 |
| TG21N | 21 | 17 | 19 | 15 | M4D18 | TG184S-15 |
| TG25R | 25 | 20 | 23 | 18 | K490D | TG184S-18 |
| TG28R | 28 | 22 | 25 | 20 | K4100D | TG184S-20 |
| TG30R | 30 | 24 | 28 | 22 | K4100D | TG184S-22 |
| TG34R | 34 | 28 | 31 | 25 | K4100D | TG184S-25 |
| TG41R | 41 | 33 | 38 | 30 | KT40D | TG184S-30 |
| TG44R | 44 | 35 | 40 | 32 | K4100ZD | TG184S-32 |
| TG47R | 47 | 37 | 43 | 34 | K4102ZD | TG224S-34 |
| TG55R | 55 | 44 | 50 | 40 | ZH4105ZD | TG224S-40 |
| TG62R | 62 | 50 | 56 | 45 | ZH4105ZD | TG224S-45 |
| TG69R | 69 | 55 | 63 | 50 | ZH4105ZLD | TG224S-50 |
| TG76R | 76 | 61 | 69 | 55 | N4105ZLD | TG224S-55 |
| TG88R | 88 | 70 | 80 | 64 | R4108IZLD | TG224S-64 |
| TG103R | 103 | 83 | 94 | 75 | R6105ZD | TG274S-75 |
| TG110R | 110 | 88 | 100 | 80 | R6105AZD | TG274S-80 |
| TG138R | 138 | 110 | 125 | 100 | R6105AZLD | TG274S-100 |
| TG165R | 165 | 132 | 150 | 120 | R6105IZLD | TG274S-120 |
| TG206R | 206 | 165 | 188 | 150 | R6110ZLD | TG274S-150 |
| TG220R | 220 | 176 | 200 | 160 | R6113ZLD | TG274S-160 |
Tecgen Power Generator Feature:
1, Output range: 10kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, Chint circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Working Hours Base Fuel Tank
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Warranty with 1000 hours or one year, which comes first.
Service:
1)Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2)Service quality assurance:
Our sale staffs are all experlence and professional ,who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service:
We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply:
We provide all kinds of spare parts and technical support.
