50HZ Cummins Diesel Generators
| Place of Origin | China |
|---|---|
| Brand Name | Cummins |
| Certification | CE/SONCAP/SASO/SGS |
| Model Number | TG110C |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood case Package or Plastic film package in container |
| Delivery Time | 15-20 working days after received deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Namee | Diesel Generator Set | Output Type | AC Three Phase |
|---|---|---|---|
| CoolingType | Water-cooling | Ambient Temp | ≤40 C |
| Standard | CE/SONCAP/FCC/SGS | Genset Type | Open Or Silent |
| Highlight | 50HZ Cummins Diesel Generators,100kVA Cummins Diesel Generators,80KW cummings gen sets |
||
Product Description

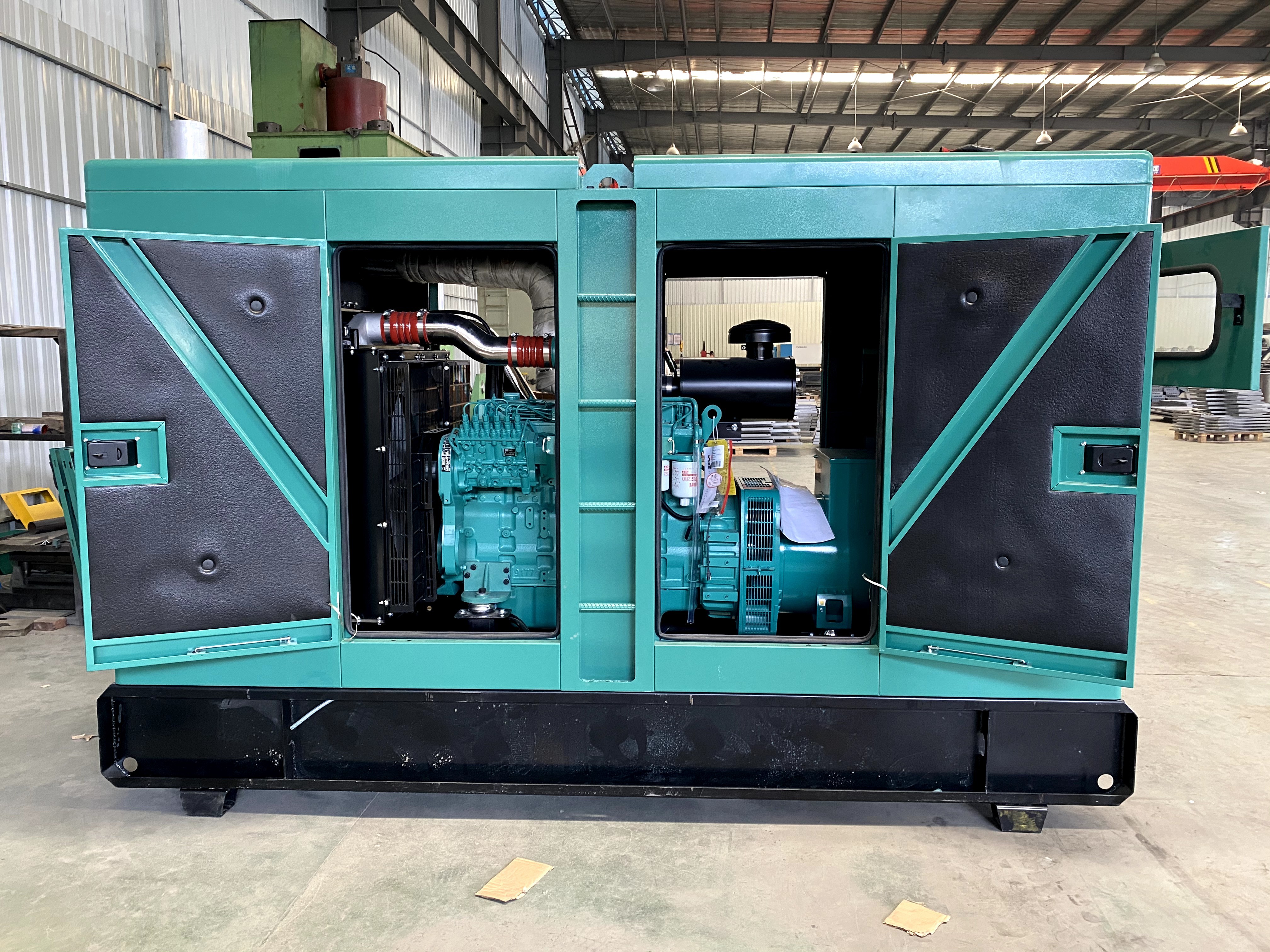

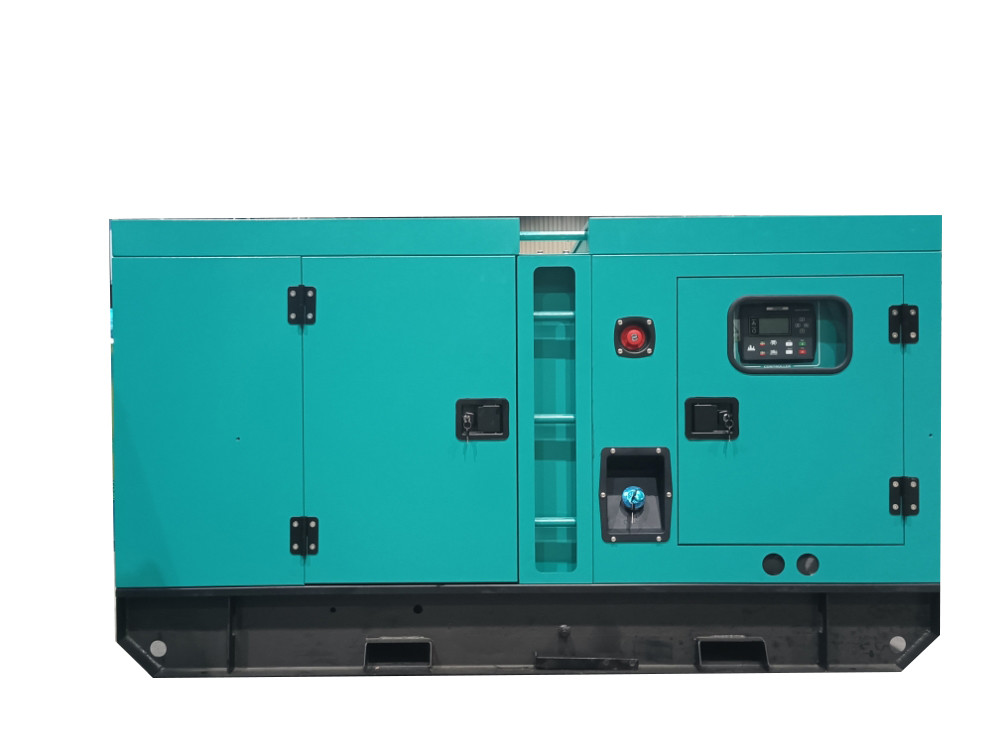

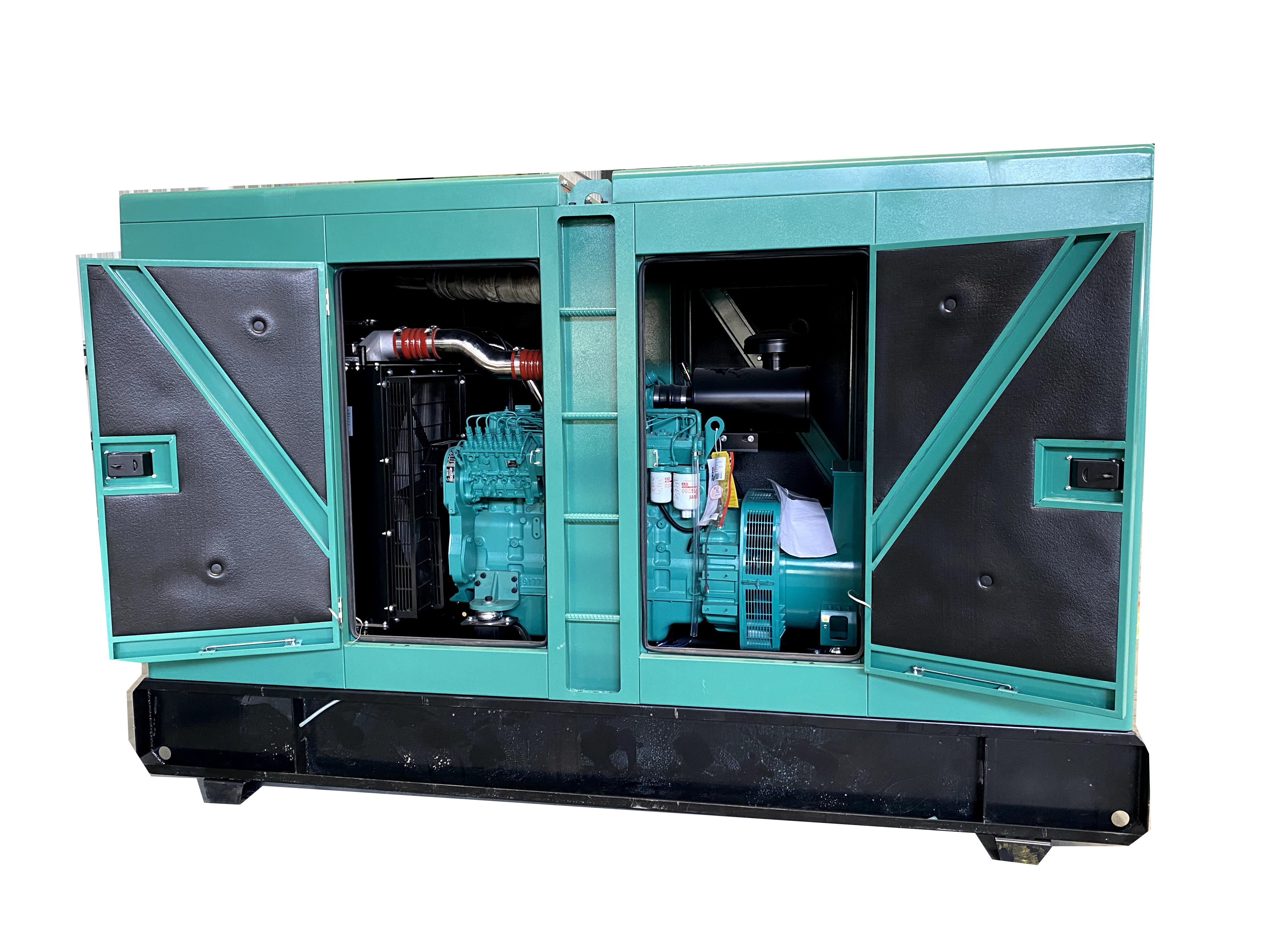

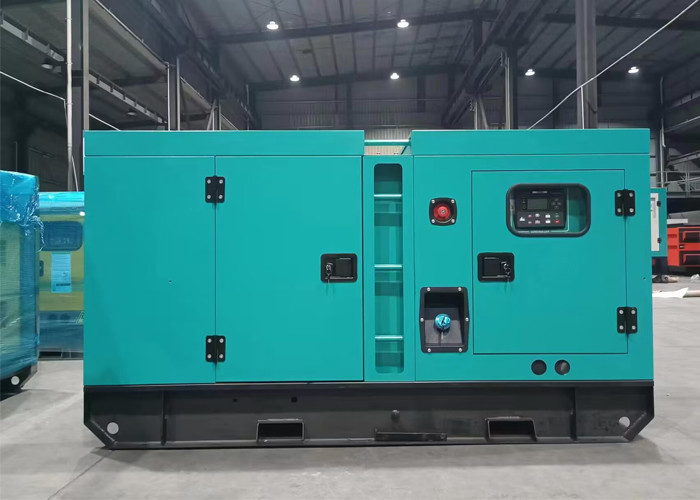

Heavy Duty Diesel Genset 50HZ Prime Output 100kVA 80KW Cummins Diesel Generator Set
Standby Output: 110kVA
Prime Output: 100kVA
Payment Term One: 30% Paid By T/T for Deposit, 70% Paid by T/T Before Shipment.
Payment Term Two: 100% Paid by Irrevocable L/C At Sight.
Engine Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Supply Scope: Diesel engine, Alternator, Automatic start / stop control panel, Dry type air fillter, fuel filter, oil filter, 4V D.C automatic battery charger, Max. 50 degree celsius radiator, Batteries, rack and cable, Ripple flex exhaust pipe, flange and muffler, Circuit breaker, Base Fuel tank, Complete users' manual.
Testing: Tecgen Power provides a full line of brand new and high quality products. Every unit is strictly factory tested.
Services Parts: Service and parts are avaiable from Tecgen Power or distributors in your location.
Specifications:
| Technical Parameter for Diesel Generator | Genset Model | TG110C |
| Prime Power | 80kW/100kVA | |
| Standby Power | 88kW/110kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 380V | |
| Power Factor | 0.8 | |
| Engine Brand | Cummins | |
| Engine Model | 6BT5.9-G2 | |
| Alternator Brand | Stamford | |
| Alternator Brand | UCI 274 C | |
| Engine General Data | Max Output (kW) | 100 |
| Number of Cylinders | 6 | |
| Cylinder arrangement | Vertical in-line | |
| Displacement (L) | 5.9 | |
| Aspiration | Turbocharged & Aftercooled | |
| Bore×Stroke (mm×mm) | 102x120 | |
| Compression Ratio | 17.5:1 | |
| Speed Governor | Electric | |
| Fuel Consumption at 100% load(L/H) | 22 | |
| Alternator Data | Model | TGI274S-80 |
| Brand | Tecgen | |
| Rate Output | 100kVA | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Fuel Tank Capacity | 113L | |
Feature:
1) Powered by brand new original water cooled diesel engine.
2) Brand new STAMFORD, LEROY SOMER or TECGEN single bearing 3 phase alternator with IP23 and H insulation class.
3) Original 50ºC radiator with engine driven fan mounted on skid.
4) Delixi or Chint branded case circuit breaker mounted.
5) Heavy-duty fabricated steel based frame with built-in fuel tank for at least 8 hours continuous running.
6) Complete set mounted on a based frame with anti-vibration mountings.
7) Industrial 9 dB muffler exhaust system with blexible connects and bellows.
8) Based frame with fuel, oil and coolant drain cocks for easy maintenance.
Warranty:
Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date. During the guarantee period, our Tecgen Power will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts maintenance for gen-set
