10kVA 15kVA Silent Power Generators 20kVA 25kVA 30kVA 40KVA 50kVA 60kVA Yangdong Power Portable Diesel Generator Se
| Place of Origin | China |
|---|---|
| Brand Name | Yangdong |
| Certification | CE/SONCAP/FCC/SGS |
| Model Number | TG30YD |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood case Package or Plastic film package in container |
| Delivery Time | 15-20 working days after received deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Diesel Generator Set | Type | Open Type Or Silent Type |
|---|---|---|---|
| Engine Brand | Yangdong | Alternator Brand | Tecgen |
| Control System | AMF/ATS | Output Type | AC Three Phase |
| Conditions Of Use | Land Use | Cooling Method | Water Cooling |
| Ambient Temp | ≤40 C | Genset Color | Color Is Optional |
| Highlight | 15kVA Silent Power Generators,10kVA Silent Power Generators,75kVA portable diesel generator set |
||
Product Description

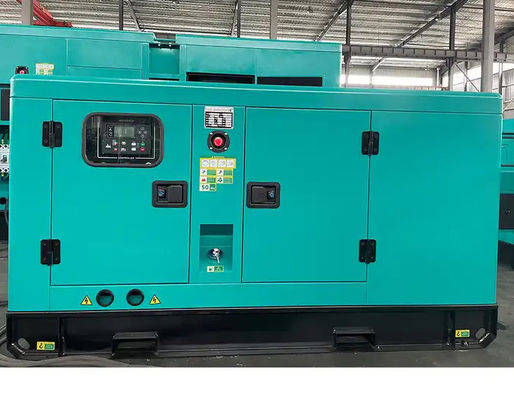

Silent Generator 10kVA 15kVA 20kVA 25kVA 30kVA 40KVA 50kVA 60kVA 75kVA Yangdong Power Portable Diesel Generator Set
Genset Feature:
Engine
· Heavy duty diesel engine
· Four stroke, water cooled
· 12V and 24V stater and charge alternator
· Cooling radiator and fan
· Maintenance free battery including ract and cable
· Flexible fuel connection hoses and manual oil sump drain valve
· Exhaust silencer
Alternator
· Brushless, single bearing, flexible disc
· Insulation class: H
· Protection class: IP23
· Self-exciting and Self-regulation
Canopy
· All canopy designed with modular principles
· All metal canopy parts painted by electrostatic polyester power paint
· Soundproof design ensure that the noise level be controlled in small scope
· Convenient to lift and move
· Easy to maintenance and operate
Base Frame
· Base frame including position for forklift and crane
· Integral fuel tank
· Daily fuel tank continuously supply for 8-24 hours
· Fuel tank easy to maintain and clean
· Anti-vibration pads are flexed between engine and alternator.
Control System
Control, monitor and protect the Generator Set including:
· High water temperature
· Low oil pressure
· Over and under speed
· Over current
· Under/Over generator voltage
· Start and stop failure
· Low and high battery voltage
· Charge fail
· Emergency stop
PRODUCTS DETAILS
Yangdong Diesel Generator Set
50HZ 3 Phase 380V
| Genset Model | Genset Standby Power |
Genset Prime Power |
Engine Model | Alternator Model | ||
| KVA | KW | KVA | KW | |||
| TG10YD | 10 | 8 | 9 | 7 | YD380D | TG164S-7 |
| TG12YD | 12 | 10 | 11 | 9 | YD385D | TG164S-9 |
| TG15YD | 15 | 12 | 14 | 11 | YD480D | TG164S-11 |
| TG18YD | 18 | 14 | 16 | 13 | YND485D | TG164S-13 |
| TG22YD | 22 | 18 | 20 | 16 | YSD490D | TG184S-16 |
| TG25YD | 25 | 20 | 23 | 18 | Y490D | TG184S-18 |
| TG28YD | 28 | 22 | 25 | 20 | Y495D | TG184S-20 |
| TG30YD | 33 | 27 | 30 | 24 | Y4100D | TG184S-24 |
| TG35YD | 35 | 28 | 31 | 25 | Y4102D | TG184S-25 |
| TG40YD | 41 | 33 | 38 | 30 | Y4105D | TG184S-30 |
| TG45YD | 45 | 36 | 40 | 32 | Y4102ZD | TG184S-32 |
| TG55YD | 55 | 44 | 50 | 40 | Y4102ZLD | TG224S-40 |
| TG60YD | 60 | 48 | 55 | 44 | Y4105ZLD | TG224S-44 |
| TG70YD | 69 | 55 | 63 | 50 | YD4EZLD | TG224S-50 |
| TG83YD | 83 | 66 | 75 | 60 | Y4110ZLD | TG224S-60 |
Service:
1)Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2)Service quality assurance:
Our sale staffs are all experlence and professional ,who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service:
We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply:
We provide all kinds of spare parts and technical support.
