70kW Ricardo Diesel Generators Open Type 50Hz With Mebay DC52D Controller Available
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Ricardo Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TG96RS |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plastic film package in container |
| Delivery Time | 10 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Silent | Frequency / Speed | 50Hz / 1500rpm |
|---|---|---|---|
| Voltage | 220 / 230 / 240 / 380 / 400 / 415V | Genset Engine Model | 4RT55-88D |
| Genset Prime Output | 70kW / 88kVA | Genset Standby Output | 77kW / 96kVA |
| Controller | Mebay DC52D | Options | ATS / Water Heater |
| Highlight | 70kW Ricardo Diesel Generators,Ricardo Diesel Generators Open Type,50Hz open type diesel generators |
||
Product Description

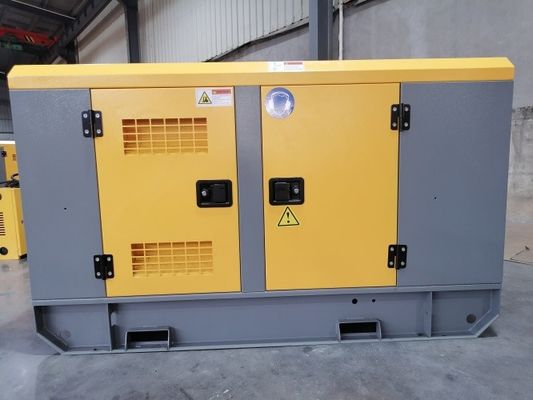

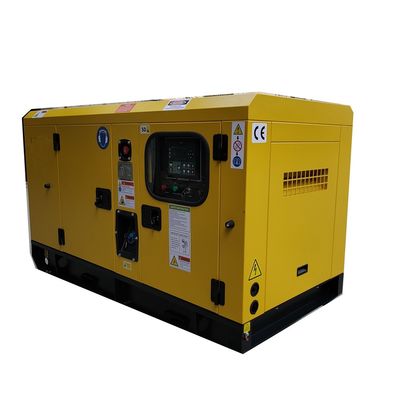

70kW Open Type Ricardo 50Hz Diesel Generators with Mebay DC52D Controller Available
Product Description:
Ricardo Diesel Generators are reliable and powerful generators powered by Ricardo diesel engines. These generators have a voltage range of 220 / 230 / 240 / 380 / 400 / 415V and can provide a standby output of 77kW / 96kVA. The generator is equipped with a Mebay DC52D controller and 4YT23-20D Genset Engine. The genset type is Silent, making it easy to access for inspection and maintenance. Ricardo Diesel Generators are designed to provide reliable and cost-effective power for a variety of applications, ensuring that you have a reliable source of energy when you need it.
Features:
- Ricardo Diesel Generators:
- Voltage: 220 / 230 / 240 / 380 / 400 / 415V
- Genset Standby Output: 77kW / 96kVA
- Frequency / Speed: 50Hz / 1500rpm
- Genset Engine Model: 4RT55-88D
- Genset Type: Silent
- Ricardo Diesel Powered Generators:
- Voltage: 220 / 230 / 240 / 380 / 400 / 415V
- Genset Standby Output: 77kW / 96kVA
- Frequency / Speed: 50Hz / 1500rpm
- Genset Engine Model: 4YT23-20D
- Genset Type: Silent
- Ricardo Backup Generator:
- Voltage: 220 / 230 / 240 / 380 / 400 / 415V
- Genset Standby Output: 77kW / 96kVA
- Frequency / Speed: 50Hz / 1500rpm
- Genset Engine Model: 4RT55-88D
- Genset Type: Silent
Technical Parameters:
| Technical Specification: | ||
| 70kW Ricardo Diesel Engine Generator Set Specification | ||
| Genset Model | TG96R | TG96RS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 Phase, 4 Wires | |
| Rate Current | 127.0A | |
| Prime Power | 70kW / 88kVA | |
| Standby Power | 77kW / 96kVA | |
| Engine Model | 4RT55-88D | |
| Alternator Model | TGI224S68 | |
| Controller | Mebay DC52D | |
| Weight & Dimensions | ||
| Length (mm) | 1700 | 2350 |
| width (mm) | 850 | 1000 |
| Height (mm) | 1050 | 1300 |
| Weight (kgs) | 1000 | 1250 |
| Engine Specification | ||
| Brand | KOFO Ricardo Series | |
| Engine Model | 4RT55-88D | |
| Prime power (kw) | 88 | |
| Injection | Indirect | |
| Aspiration | Turbocharged | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 110 x 140 | |
| Displacement (L) | 5.32 | |
| Cooling | water | |
| Compression Ratio | 17:1 | |
| Engine Oil capacity (L) | 10 | |
| Coolant Capacity ( In radiator) | 10 | |
| Governor | Mech | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 22.8 | |
| 75% Load (L/h) | 17.1 | |
| 50% Load (L/h) | 11.4 | |
| 25% Load (L/h) | 5.7 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI224S68 | |
| Rate Output (kW) | 68 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Mebay | |
| Model | DC52D | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Ricardo Diesel Generators, made by Tecgen, are designed to provide reliable power for a range of applications. The Weifang Ricardo Genset is built with a 4RT55-88D engine and has a frequency of 50Hz and a speed of 1500rpm. This generator has a standby output of 77kW/96kVA and a prime output of 70kW/88kVA. It is certified with ISO/CE/SASO/CIQ and can be purchased in minimum quantities of 1 unit. This Ricardo Generator comes with a plastic film package in a container and is usually delivered in 10 working days. The price is negotiable and the supply ability is 400 units per month. Customers can also opt for additional features such as an ATS and a water heater.
Tecgen Ricardo Genset is a renowned brand in the generator industry and offers excellent quality and competitive prices. It has a great reputation for its reliable and efficient performance and is widely used in industries such as construction, mining, and power generation. Its products are designed to meet the highest standards of safety and durability and are certified with ISO/CE/SASO/CIQ standards.
If you're looking for a reliable and efficient Ricardo Generator, Tecgen Ricardo Genset is the perfect choice. With its excellent quality and competitive prices, you can be sure of getting a good value for your money.
Customization:
Ricardo Backup Generator
Tecgen Ricardo Genset (TGR) is a Ricardo Diesel Powered Generator, it is designed for reliable power generation in extreme conditions and is certified by ISO / CE / SASO / CIQ.
- Model Number: TG96RS
- Place of Origin: Fuzhou, China
- Certification: ISO / CE / SASO / CIQ
- Minimum Order Quantity: 1 Unit
- Price: Negotiation
- Packaging Details: Plastic film package in container
- Delivery Time: 10 Working Days
- Payment Terms: T/T / L/C
- Supply Ability: 400 Units Per Month
- Genset Prime Output: 70kW / 88kVA
- Genset Engine Model: 4RT55-88D
- Options: ATS / Water Heater
- Voltage: 220 / 230 / 240 / 380 / 400 / 415V
- Genset Type: Silent
Support and Services:
Ricardo Diesel Generators offers technical support and services to help customers get the most out of their product. This includes providing technical advice, product installation, servicing and maintenance, as well as providing spare parts and accessories.
We are committed to providing excellent customer service and support. Our team of experienced engineers and technicians are available to provide technical assistance, and can answer any questions you may have about our products and services.
We also offer a range of maintenance and repair services, including routine maintenance checks and repairs, as well as emergency repairs. We are dedicated to providing a fast and reliable service, and our team is equipped to provide the best possible service and support.
Packing and Shipping:
Packaging and Shipping for Ricardo Diesel Generators
Ricardo Diesel Generators are carefully packaged to ensure they reach their destination safely. Each generator is shrink-wrapped and packed in a rigid cardboard box. The box is then reinforced with bubble wrap and strong tape to ensure it is secure during transit.
Generators are shipped via reliable courier services and tracked delivery is available to ensure they reach their destination safely and on time.
FAQ:
Q: What is the brand name and model of Ricardo Diesel Generators?
A: The brand name and model of Ricardo Diesel Generators is Tecgen Ricardo Genset (TG96RS).
Q: Where is Ricardo Diesel Generators made?
A: Ricardo Diesel Generators are made in Fuzhou, China.
Q: What certifications do Ricardo Diesel Generators have?
A: Ricardo Diesel Generators have ISO / CE / SASO / CIQ certifications.
Q: What is the minimum order quantity for Ricardo Diesel Generators?
A: The minimum order quantity for Ricardo Diesel Generators is 1 Unit.
Q: How long does it take for Ricardo Diesel Generators to be delivered?
A: Ricardo Diesel Generators will be delivered within 10 Working Days.
