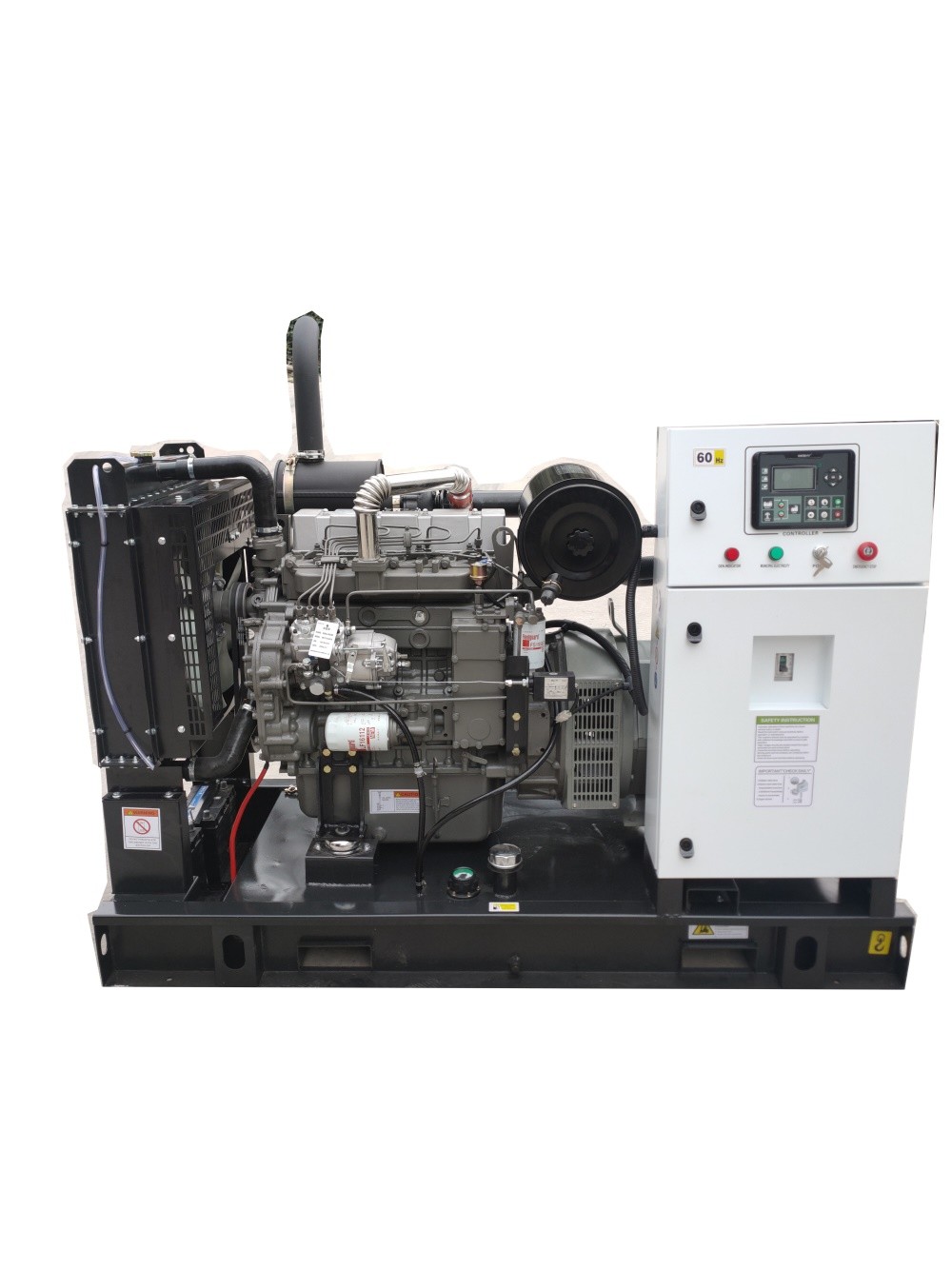

40kVA Diesel Generator Ricardo Water Cooled Genset 32kW
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Ricardo Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TG44R |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plastic film package in container |
| Delivery Time | 10 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Open | Genset Prime Output | 32kW / 40kVA |
|---|---|---|---|
| Genset Standby Output | 35kW / 44kVA | Frequency / Speed | 50Hz / 1500rpm |
| Voltage | 220 / 230 / 240 / 380 / 400 / 415V | Genset Engine Model | N4105DS |
| Controller | Mebay DC52D | Options | ATS / Water Heater |
| Highlight | 40kVA generator ricardo,generator ricardo 50Hz,32kW water cooled genset |
||
Product Description
40kVA Diesel powered generator powered by Weifang Ricardo water cooled genset
Product Description:
Ricardo Diesel Generators are the perfect choice for reliable backup power in any application. These diesel powered generators feature a Ricardo N4105DS engine, designed for maximum efficiency and performance. With a standby output of 35 kW / 44 kVA and a prime output of 32 kW / 40 kVA, this generator is the perfect choice for providing reliable power for any home or business. This generator operates at 50 Hz / 1500 rpm and can supply power at any voltage between 220 / 230 / 240 / 380 / 400 / 415V. With a Ricardo diesel generator, you can be sure that your power needs are covered in any situation.
Features:
- Product Name: Ricardo Diesel Generators
- Options: ATS / Water Heater
- Genset Engine Model: N4105DS
- Genset Standby Output: 35kW / 44kVA
- Voltage: 220 / 230 / 240 / 380 / 400 / 415V
- Controller: Mebay DC52D
- Ricardo Backup Generator
- Ricardo Diesel Powered Generators
Technical Parameters:
| Technical Specification: | ||
| 40kVA Ricardo Genset Weifang Specification | ||
| Genset Model | TG44R | TG44RS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 380/220V | |
| Phase | 3 | |
| Rate Current | 60.8A | |
| Prime Power | 32kW / 40kVA | |
| Standby Power | 35kW / 44kVA | |
| Engine Model | N4105DS | |
| Alternator Model | TGI184S32 | |
| Controller | Mebay DC52D | |
| Weight & Dimensions | ||
| Length (mm) | 1650 | 2250 |
| width (mm) | 800 | 950 |
| Height (mm) | 1000 | 1300 |
| Weight (kgs) | 630 | 850 |
| Engine Specification | ||
| Brand | KOFO Ricardo Series | |
| Engine Model | N4105DS | |
| Prime power (kW) | 38 | |
| Injection | Indirect | |
| Aspiration | Turbocharged | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 105 x 120 | |
| Displacement (L) | 4.15 | |
| Cooling | water | |
| Compression Ratio | 17:1 | |
| Engine Oil capacity (L) | 5.5 | |
| Coolant Capacity ( In radiator) | 5.5 | |
| Governor | Mech | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 8.8 | |
| 75% Load (L/h) | 6.6 | |
| 50% Load (L/h) | 4.4 | |
| 25% Load (L/h) | 2.2 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S32 | |
| Rate Output (kVA) | 40 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Mebay | |
| Model | DC52D | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
The Ricardo Diesel Engine Generators from Tecgen, with the model number TG44R, is an ideal choice for customers who seek reliable and efficient power supply. It is manufactured in Fuzhou, China, and certified with ISO, CE, SASO, and CIQ. The minimum order quantity of the generator is 1 unit, and the price is negotiable. The package of the generator is plastic film package in container, and the delivery time is 10 working days. The payment terms are T/T or L/C. The supply ability is 400 units per month.
The diesel Ricardo engine has the model number of N4105DS. It has the frequency of 50Hz and runs at 1500rpm. The controller used is Mebay DC52D. It has the open genset type, and the standby output is 35kW/44kVA.
Customization:
Customized Service for Ricardo Diesel Generators
We offer customized service for Ricardo Diesel Generators, which are powered by Diesel Ricardo Engine. Brand name: Tecgen Ricardo Genset, model number: TG44R. Place of origin: Fuzhou, China. Certification: ISO/CE/SASO/CIQ. Minimum order quantity: 1 unit. Price: Negotiation. Packaging details: Plastic film package in container. Delivery time: 10 working days. Payment terms: T/T/L/C. Supply ability: 400 units per month. Controller: Mebay DC52D. Genset standby output: 35kW/44kVA. Genset engine model: N4105DS. Voltage: 220/230/240/380/400/415V. Genset type: Open.
Support and Services:
Ricardo Diesel Generators Technical Support and Service
Ricardo provides comprehensive technical support and service for its diesel generators. This includes:
- Troubleshooting and repair of diesel generator systems
- Evaluation of engine performance and operation
- Inspection of fuel systems, air intakes, and exhaust systems
- Maintenance of fuel injection systems and other components
- Preventive maintenance and scheduled servicing
- Provision of spare parts, components, and consumables
- Training and advice on diesel generator operation and maintenance
Ricardo's global network of technical experts are available to provide customers with the highest quality service and support.
Packing and Shipping:
Packaging and Shipping Ricardo Diesel Generators
At Ricardo, we take special care to ensure that your Ricardo Diesel Generator arrives safely and in perfect condition. We package the generator securely in an appropriate shipping container, and use a trusted third-party carrier to deliver your order.
We take great care to make sure your order arrives safely and on time. We use the best packaging materials available, and our shipping process is carefully monitored.
We also offer a variety of shipping options, including overnight and express delivery, so you can choose the option that works best for your needs.
If you have any questions about our packaging or shipping process, please don't hesitate to contact us.
FAQ:
- Q: What is the brand name of Ricardo Diesel Generators?
- A: The brand name of Ricardo Diesel Generators is Tecgen Ricardo Genset.
- Q: What is the model number of Ricardo Diesel Generators?
- A: The model number of Ricardo Diesel Generators is TG44R.
- Q: Where is the place of origin for Ricardo Diesel Generators?
- A: The place of origin for Ricardo Diesel Generators is Fuzhou, China.
- Q: What certifications do Ricardo Diesel Generators have?
- A: Ricardo Diesel Generators have ISO / CE / SASO / CIQ certifications.
- Q: What is the minimum order quantity for Ricardo Diesel Generators?
- A: The minimum order quantity for Ricardo Diesel Generators is 1 Unit.
