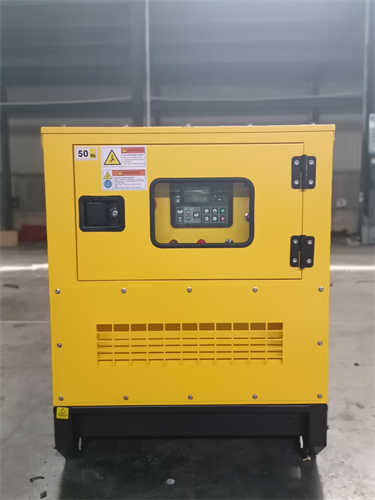

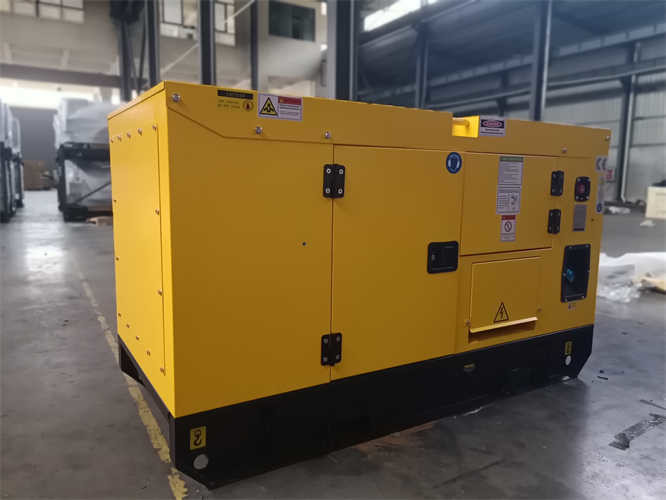

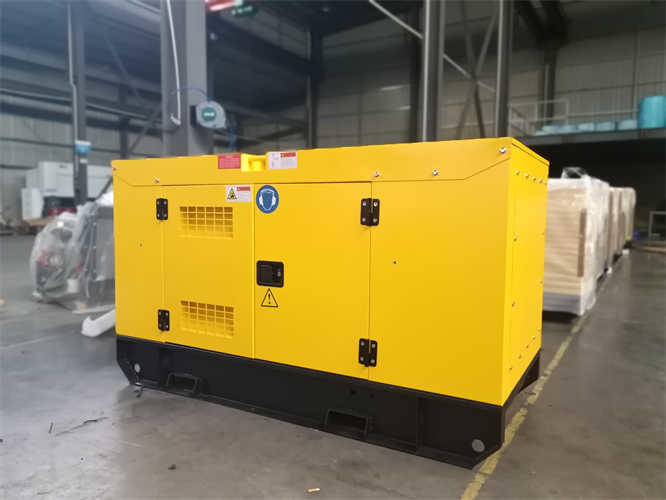

Powerful 100kVA Ricardo Diesel Generators With ATS Option And HGM6120N Controller Model
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Alternator Insulation | IP21 ~ IP23 | Options | ATS / Water Heater |
|---|---|---|---|
| Frequency | 50Hz@1500rpm Or 60Hz@1800rpm | Rated Voltage | 220/380V, 230V/400V, 240V/415V,127/220V Etc. Other Voltage Is Optional |
| Engine Brand | Ricardo | Genset Type | Open / Silent |
| Controller Model | HGM6120N | Alternator Type | Brushless, Self Excited Or PMG Optional |
| Highlight | 100kVA Ricardo Diesel Generators,Powerful Ricardo Diesel Generators,400V 100kva diesel generator |
||
Product Description
Powerful 100kVA Diesel Generators with ATS Option and HGM6120N Controller Model
Product Description:
Ricardo Diesel Powered Generators are powerful and reliable solutions for a variety of power applications. They are powered by a Ricardo Diesel Engine, and feature a Controller Model HGM6120N, as well as Options such as ATS/ Water Heater. With a Frequency of 50Hz@1500rpm or 60Hz@1800rpm, these Generators deliver the power you need. They also offer a variety of Rated Voltages, such as 220/380V, 230V/400V, 240V/415V, 127/220V. All of these options make the Ricardo Diesel Generators the ideal choice for your power needs.
Tecgen Power Generator Features:
1, Output range: 10kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, Chint circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Large fuel tank ensure continuous running.
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date
Technical Parameters:
Specifications:
| Technical Parameter for Diesel Generator | Genset Model | TG80R |
| Prime Power | 73kVA/58kW | |
| Standby Power | 80kVA/64kW | |
| Frequency | 50Hz | |
| Rated Voltage | 400V | |
| Power Factor | 0.8 | |
| Engine Brand | Ricardo | |
| Engine Model | R4105IZLD | |
| Alternator Brand | Tecgen | |
| Alternator Model | TGI224S-58 | |
| Engine General Data | Engine Power(kW) | 67 |
| Cyl / Arrangement | 4L | |
| Air Intake way | Turbo | |
| Bore×Stroke (mm×mm) | 105x125 | |
| Speed Governor | Mechanical | |
| Fuel Consumption (g/kw.h)) | 239 | |
| Alternator Data | Model | TGI224S-58 |
| Brand | Tecgen Stamford | |
| Rate Output | 73kVA/58kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Control System | Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brand | ComAp, Deepsea | |
| Starting Voltage | 24V | |
Applications:
Ricardo Diesel Generators
Ricardo Diesel Generators, Model Number TGR, is certified with ISO, CE, SASO and CIQ. It originates from China with a minimum order quantity of 1 unit. Its price is negotiable and it is shipped in Plywood case / Foam and PE film package. Delivery time is around 15 Working Days. Payment terms include T/T and L/C. This product has a Supply Ability of 400 Units Per Month. Its rated voltage is 220/380V, 230V/400V, 240V/415V,127/220V etc. Other voltage is optional. This generator comes in two types: Open or Silent. It is powered by Ricardo engine and its alternator type is Brushless, Self Excited or PMG Optional. The Controller Model is HGM6120N.
Customization:
Ricardo Diesel Powered Generators
Brand Name: Ricardo Generator
Model Number: TGR
Place of Origin: China
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Plywood case / Foam and PE film package
Delivery Time: 15 Working Days
Payment Terms: T/T / L/C
Supply Ability: 400 Units Per Month
Genset Type: Open / Silent
Frequency: 50Hz@1500rpm Or 60Hz@1800rpm
Engine Brand : Ricardo
Options: ATS / Water Heater
Alternator Insulation: IP21 ~ IP23
Features:
- Diesel Ricardo Engine
- Ricardo Diesel Powered Generators
- TGR Model
- Open Type
- ISO / CE / SASO / CIQ Certification
- Plywood Case
- 15 Working Days
- T/T / L/C
- 400 Units Per Month
- 50Hz @ 1500rpm or 60Hz @ 1800rpm
- ATS / Water Heater
- IP21 ~ IP23
Support and Services:
Ricardo Diesel Generators Technical Support and Service
Ricardo Diesel Generators offers technical support and service for all our products, including troubleshooting, installation, and maintenance of our generators.
- Troubleshooting: Ricardo Diesel Generators provides troubleshooting for all our generators including diagnostics, repair, and maintenance.
- Installation: Our team provides installation services for all our generators, ensuring that they are properly installed and running correctly.
- Maintenance: We offer regular maintenance and repair services for our generators, ensuring that they are running properly and efficiently.
Our team of experienced professionals is available 24/7 to provide technical support and service for all our generators.
FAQ:
- Q: What is the brand name of Ricardo Generators?
- A: The brand name of Ricardo Generators is Ricardo Generator.
- Q: What is the model number of Ricardo Generators?
- A: The model number of Ricardo Generators is TGR.
- Q: Where do Ricardo Generators come from?
- A: Ricardo Generators come from China.
- Q: What certifications do Ricardo Generators have?
- A: Ricardo Generators have ISO / CE / SASO / CIQ certifications.
- Q: What is the minimum order quantity for Ricardo Generators?
- A: The minimum order quantity for Ricardo Generators is 1 unit.
