Charles SThe performance and reliability of Tecgen generator sets we purchased have been outstanding. They have seamlessly provided uninterrupted power supply during crucial times, ensuring the smooth operation of our business. Furthermore, your team's professionalism and dedication in assisting us throughout the purchasing process have been commendable. -
Hannah GordonDear Tecgen, I would like to express my gratitude for the excellent genset you have provided. Our order of the Yandgong Genset have exceeded our expectations. The performance and reliability of Genset have been outstanding, ensuring uninterrupted power supply for our business. We are looking forward to continuing our partnership with Tecgen Genset.

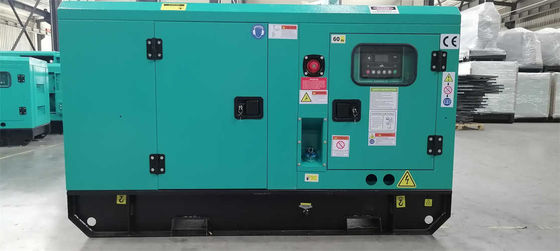

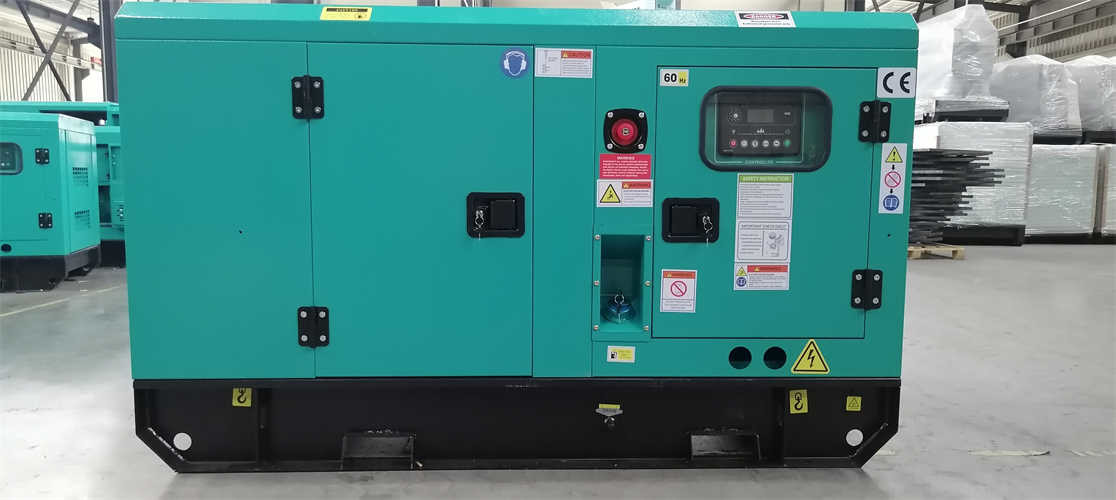

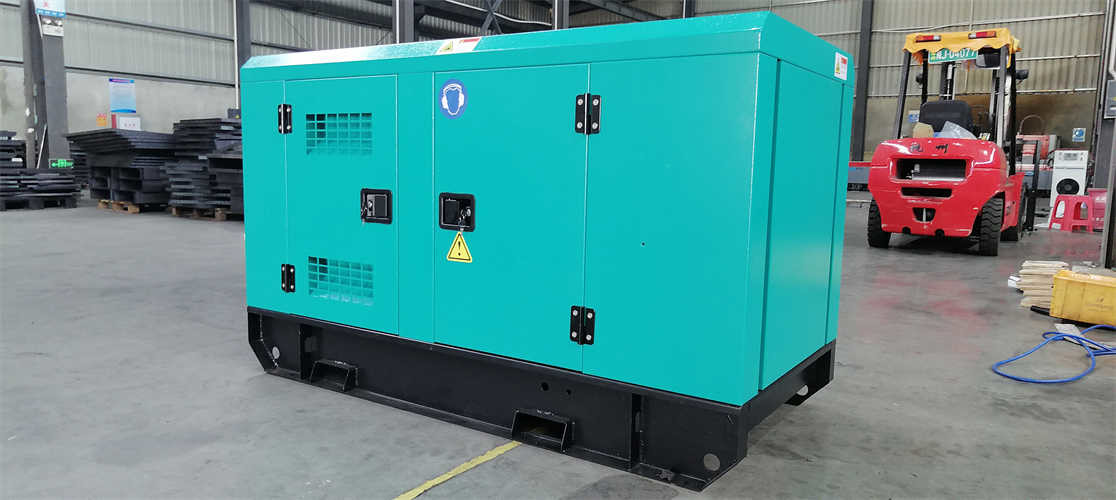

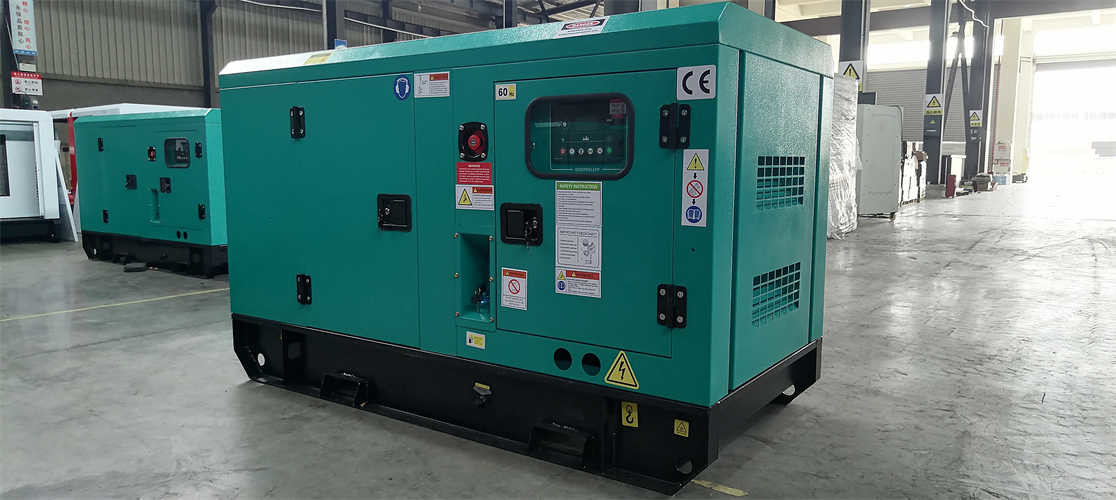

Ricardo Diesel Powered Generator 60kVA With Water Heater
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Alternator Insulation | IP21 ~ IP23 | Rated Voltage | 220/380V, 230V/400V, 240V/415V,127/220V Etc. Other Voltage Is Optional |
|---|---|---|---|
| Options | ATS / Water Heater | Genset Type | Open / Silent |
| Controller Model | HGM6120N | Frequency | 50Hz@1500rpm Or 60Hz@1800rpm |
| Engine Brand | Ricardo | Alternator Type | Brushless, Self Excited Or PMG Optional |
| Highlight | Ricardo diesel powered generator,diesel powered generator 60kVA,240V 60kva generator |
||
Product Description
Water Heater Option for Ricardo Diesel Powered Generators 60kVA Good Quality
Product Description:
Ricardo Diesel Generators are reliable, highly efficient, and durable backup power solutions. Our industrial grade diesel engines are built with Ricardo Diesel Engines, making them perfect for long-term reliability and performance. With a variety of options available, you can choose from ATS, Water Heater, Brushless, Self-Excited, or PMG alternators, as well as 50Hz@1500rpm or 60Hz@1800rpm frequency rates, and Open or Silent genset types. The HGM6120N controller model ensures maximum control and safety with each generator. For dependable backup power, choose Ricardo Diesel Engine Generators.
Features:
- Product Name: Weifang Ricardo Genset, Ricardo Diesel Generators, Ricardo Diesel Powered Generators
- Options: ATS / Water Heater
- Alternator Insulation: IP21 ~ IP23
- Engine Brand : Ricardo
- Alternator Type: Brushless, Self Excited Or PMG Optional
- Genset Type: Open / Silent
Technical Parameters:
Specifications:
| Technical Parameter for Diesel Generator | Genset Model | TG66R |
| Prime Power | 60kVA/48kW | |
| Standby Power | 66kVA/53kW | |
| Frequency | 50Hz | |
| Rated Voltage | 400V | |
| Power Factor | 0.8 | |
| Engine Brand | Ricardo | |
| Engine Model | R4105ZD | |
| Alternator Brand | Tecgen | |
| Alternator Model | TGI224S-48 | |
| Engine General Data | Engine Power(kW) | 56 |
| Cyl / Arrangement | 4L | |
| Air Intake way | Turbo | |
| Bore×Stroke (mm×mm) | 105x125 | |
| Speed Governor | Mechanical | |
| Fuel Consumption (g/kw.h)) | 231 | |
| Alternator Data | Model | TGI224S-48 |
| Brand | Tecgen Stamford | |
| Rate Output | 60kVA/48kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Control System | Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brand | ComAp, Deepsea | |
| Starting Voltage | 24V | |
Applications:
Ricardo Generator offers a wide range of diesel generators with options to meet different needs. The model TGR is a reliable, durable and efficient Ricardo Diesel Generator with open and silent types. The frequency of this generator is 50Hz@1500rpm or 60Hz@1800rpm, and the alternator insulation is IP21 to IP23. It offers brushless, self-excited or PMG optional alternator type. It also provides ATS and water heater options. Ricardo Generator TGR is certified by ISO / CE / SASO / CIQ, and the minimum order quantity is 1 unit. The price is negotiable and the delivery time is 15 working days. The package is plywood case / foam and PE film package. The payment terms are T/T / L/C, and the supply ability is 400 units per month.
Customization:
Ricardo Diesel Generators
Brand Name: Ricardo Generator
Model Number: TGR
Place of Origin: China
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Plywood case / Foam and PE film package
Delivery Time: 15 Working Days
Payment Terms: T/T / L/C
Supply Ability: 400 Units Per Month
Rated voltage:: 220/380V, 230V/400V, 240V/415V,127/220V Etc. Other Voltage Is Optional
Engine Brand : Ricardo
Frequency: 50Hz@1500rpm Or 60Hz@1800rpm
Controller Model: HGM6120N
Alternator Type: Brushless, Self Excited Or PMG Optional
Support and Services:
Ricardo Diesel Generators Technical Support and Service
We provide comprehensive technical support and service for Ricardo Diesel Generators. Our technical support staff are well-trained and experienced in all aspects of product knowledge, installation, maintenance, repair and troubleshooting of Ricardo Diesel Generators.
From installation to maintenance, our technical support team is available to provide assistance to customers. We aim to provide prompt and efficient service, as well as cost-effective solutions to any problem encountered by our customers.
We also offer a range of after-sales services such as replacement parts, technical advice, and warranty repairs. Our team is committed to providing quality service and support to ensure the long-term reliability and performance of our generators.
FAQ:
- Q1: What is the Brand Name of your Ricardo Diesel Generator?
- A1: Our Ricardo Diesel Generator is brand named “Ricardo Generator”.
- Q2: What is the Model Number of your Ricardo Diesel Generator?
- A2: Our Ricardo Diesel Generator model number is “TGR”.
- Q3: Where is your Ricardo Diesel Generator manufactured?
- A3: Our Ricardo Diesel Generator is manufactured in China.
- Q4: What certifications do your Ricardo Diesel Generator have?
- A4: Our Ricardo Diesel Generator is certified by ISO / CE / SASO / CIQ.
- Q5: What is the minimum order quantity for your Ricardo Diesel Generator?
- A5: The minimum order quantity for our Ricardo Diesel Generator is 1 unit.
