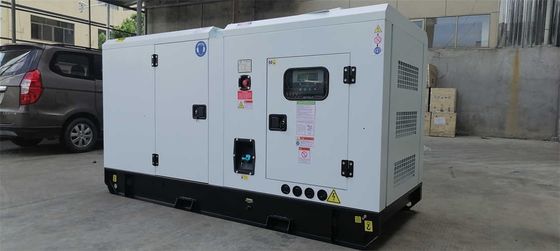

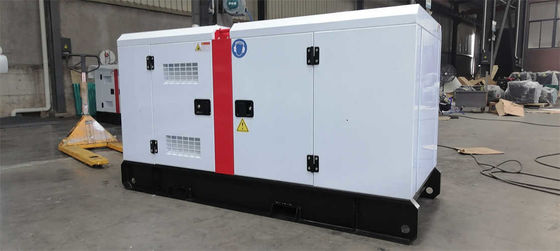

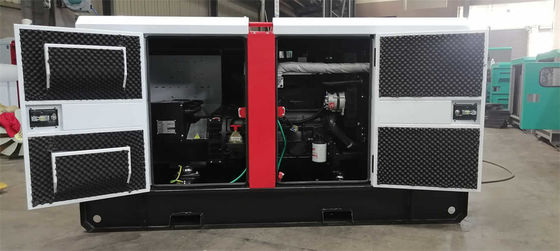

Low Noise Ricardo Diesel Generators 50Hz 3 Phase 40kVA 32kW For Industrial Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Options | ATS / Water Heater | Rated Voltage | 220/380V, 230V/400V, 240V/415V,127/220V Etc. Other Voltage Is Optional |
|---|---|---|---|
| Frequency | 50Hz@1500rpm Or 60Hz@1800rpm | Alternator Type | Brushless, Self Excited Or PMG Optional |
| Controller Model | HGM6120N | Genset Type | Open / Silent |
| Alternator Insulation | IP21 ~ IP23 | Engine Brand | Ricardo |
| Highlight | Low Noise Ricardo Diesel Generators,Ricardo Diesel Generators 50Hz,32kW 40kva 3 phase generator |
||
Product Description
Low Noise Easy Maintenance Diesel Genset 50Hz 3 Phase 40kVA/32kW for Industrial Use
Product Description:
Ricardo Diesel Generators provide reliable and efficient power solutions. The generators are powered by high quality Ricardo Diesel Engines, providing a convenient, cost-effective source of electricity for a variety of applications. The generators are available with different options, such as ATS and Water Heater, and different frequency from 50Hz@1500rpm to 60Hz@1800rpm. The alternator type is brushless, self-excited or PMG optional. The standard rated voltage is 220/380V, 230V/400V, 240V/415V,127/220V, etc. and other voltage is optional. The alternator insulation can be IP21 ~ IP23. With the features of low fuel consumption, long service life and low noise, Ricardo Diesel Generators are ideal for a variety of applications.
Features:
- Product Name: Ricardo Diesel Generators
- Genset Type: Open / Silent
- Controller Model: HGM6120N
- Engine Brand: Ricardo
- Alternator Type: Brushless, Self Excited Or PMG Optional
- Frequency: 50Hz@1500rpm Or 60Hz@1800rpm
- Keywords: Ricardo Diesel Engine Generators, Ricardo Diesel Powered Generators, Diesel Ricardo Engine Generators
Technical Parameters:
Specifications:
| Technical Parameter for Diesel Generator | Genset Model | TG44R |
| Prime Power | 40kVA/32kW | |
| Standby Power | 44kVA/35kW | |
| Frequency | 50Hz | |
| Rated Voltage | 400V | |
| Power Factor | 0.8 | |
| Engine Brand | Ricardo | |
| Engine Model | K4100ZD | |
| Alternator Brand | Tecgen | |
| Alternator Model | TGI184S-32 | |
| Engine General Data | Engine Power(kW) | 41.2 |
| Cyl / Arrangement | 4L | |
| Air Intake way | Turbo | |
| Bore×Stroke (mm×mm) | 100x115 | |
| Speed Governor | Mechanical | |
| Fuel Consumption (g/kw.h)) | 258.4 | |
| Alternator Data | Model | TGI184S-32 |
| Brand | Tecgen Stamford | |
| Rate Output | 40kVA/32kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Control System | Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brand | ComAp, Deepsea | |
| Starting Voltage | 12V | |
Applications:
Ricardo Generator is a trusted brand name for diesel powered generators. The TGR Model provides reliable backup power that is certified by ISO/CE/SASO/CIQ. The minimum order quantity for Ricardo Generator is one unit and the price is negotiated. The package contains plywood case/foam and PE film package for maximum protection. Delivery time is 15 working days and payment terms are T/T/L/C. Supply ability is 400 units per month. Options of ATS/water heater are available. Alternator type can be brushless, self excited or PMG optional. Genset type is open/silent and alternator insulation is IP21~IP23. Engine brand is Ricardo.
Customization:
Ricardo Generator – TGR
The Ricardo Generator – TGR is a reliable and efficient backup power solution crafted with the latest technologies and features. It boasts of a Ricardo engine and HGM6120N controller, which makes it the ideal choice for residential and commercial applications.
- Brand Name: Ricardo Generator
- Model Number: TGR
- Place of Origin: China
- Certification: ISO / CE / SASO / CIQ
- Minimum Order Quantity: 1 Unit
- Price: Negotiation
- Packaging Details: Plywood case / Foam and PE film package
- Delivery Time: 15 Working Days
- Payment Terms: T/T / L/C
- Supply Ability: 400 Units Per Month
- Alternator Insulation: IP21 ~ IP23
- Controller Model: HGM6120N
- Engine Brand: Ricardo
- Rated voltage: 220/380V, 230V/400V, 240V/415V,127/220V Etc. Other Voltage Is Optional
- Frequency: 50Hz@1500rpm Or 60Hz@1800rpm
The Ricardo Generator – TGR is your trusted partner for reliable and efficient power backup. Whether it’s for commercial or residential use, the Ricardo Backup Generator is the perfect solution. Get the Ricardo Diesel Genset today and experience the power of a Ricardo Genset.
Support and Services:
Ricardo Diesel Generators provides technical support and services to customers. Our technical support team is available to assist customers with any queries or issues they may have. Our technicians are well trained and experienced in identifying and resolving technical problems. We provide a range of services including installation, repair, maintenance, and troubleshooting. We also offer training and educational services to help customers better understand and use our products. We strive to provide excellent customer service and ensure timely response to all customer inquiries.
FAQ:
Q1: What is the Brand Name of the Ricardo Diesel Generators?
A1: The Brand Name is Ricardo Generator.
Q2: What is the Model Number of the Ricardo Diesel Generators?
A2: The Model Number is TGR.
Q3: Where is Ricardo Diesel Generators produced?
A3: The Ricardo Diesel Generators are produced in China.
Q4: What certifications does Ricardo Diesel Generators have?
A4: Ricardo Diesel Generators have ISO / CE / SASO / CIQ certifications.
Q5: What is the minimum order quantity for Ricardo Diesel Generators?
A5: The minimum order quantity for Ricardo Diesel Generators is 1 Unit.
