Premium Weichai Diesel Generator 50Hz 1500rpm 45kVA
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Weichai Diesel Generator |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TGWC |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plastic film package or Polywooden Package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fuel Consumption | 230g/kw.h | Type | Diesel Generator |
|---|---|---|---|
| Noise Level | 68dB(A) | Rated Frequency | 50Hz |
| Rated Voltage | 220, 230, 240, 380, 400, 415V | Rated Power | 36KW |
| Rated Speed | 1500rpm/min | Brand | Weichai |
| Highlight | Premium Weichai Diesel Generator,Weichai Diesel Generator 50Hz,1500rpm generator 45 kva |
||
Product Description

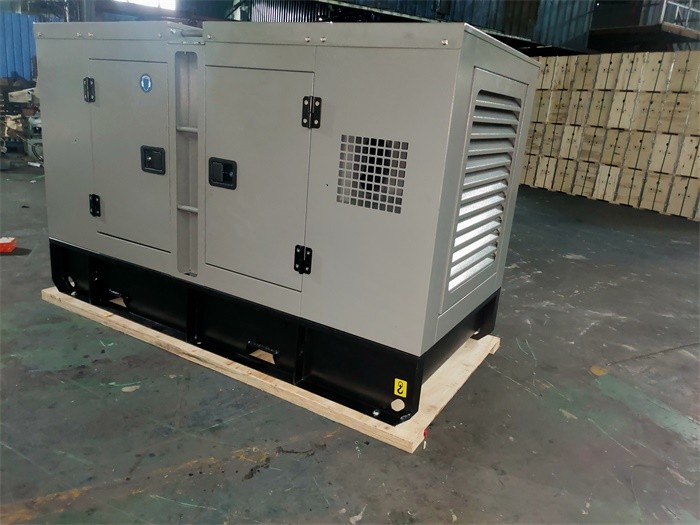

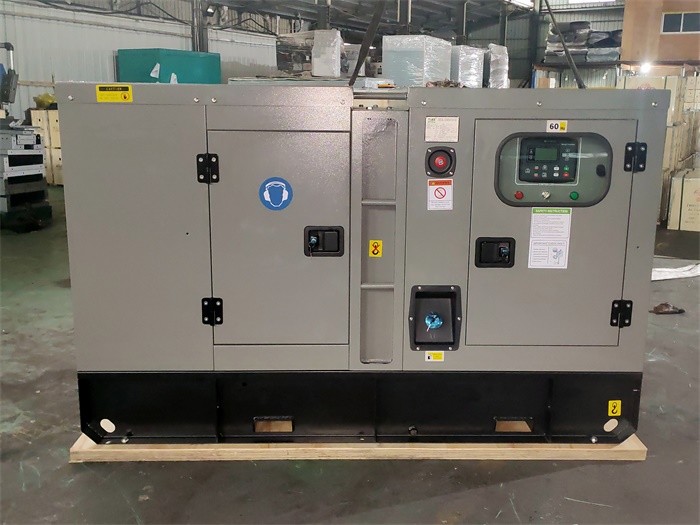

Premium Weichai Diesel Generator - Rated Frequency 50Hz Rated Speed 1500rpm Rated 45kVA
Product Description:
Weichai Diesel Generator is a reliable emergency diesel generator set specifically designed to provide reliable power generation in demanding and challenging environments. This diesel power generator set features a powerful Weichai engine, rated speed of 1500rpm/min, and a variety of rated voltage options from 220, 230, 240, 380, 400, and 415V, with a rated power of 36KW. This diesel generator set is designed to be durable and reliable, and it is the perfect solution for those in need of a dependable power generation solution. It is ideal for emergency power generation in both residential and commercial applications, and it is an excellent choice for those who need a reliable source of power for their operations. This Weichai diesel generator set is perfect for those looking for reliable diesel power generation at an affordable price.
Features:
- Product Name: Weichai Diesel Generator
- Brand: Weichai
- Type: Diesel Generator
- Fuel Consumption: 230g/kw.h
- Rated Frequency: 50Hz
- Rated Speed: 1500rpm/min
- Continuous Generator
- Generator Set Diesel Engine
- Industrial l Generator Sets
Technical Parameters:
| Technical Specification: | ||
| Max 50kVA Diesel Engine Generator Set Specification | ||
| Genset Model | TG50WC | TG50WCS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 54.8A | |
| Prime Power | 36kW / 45kVA | |
| Standby Power | 40kW / 50kVA | |
| Engine Model | WP2.3D48E200 | |
| Alternator Model | TGI224S36 | |
| Controller | HGM6120N | |
| Weight & Dimensions | ||
| Length (mm) | 1800 | 2300 |
| Width (mm) | 850 | 980 |
| Height (mm) | 1360 | 1460 |
| Weight (kgs) | 1000 | 1450 |
| Engine Specification | ||
| Brand | Weichai | |
| Engine Model | WP2.3D48E200 | |
| Prime/Standby power | 44kW / 48kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged & Intercooled | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 89 x 92 | |
| Displacement (L) | 2.3 | |
| Cooling | water | |
| Compression Ratio | 17.3:1 | |
| Engine Oil capacity (L) | 6.7 | |
| Coolant Capacity ( In radiator) | 6.7 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 9.9 | |
| 75% Load (L/h) | 7.4 | |
| 50% Load (L/h) | 4.9 | |
| 25% Load (L/h) | 2.5 | |
| Alternator Specification | ||
| Brand | Tecgen Power | |
| Model | TGI224S36 | |
| Rate Output | 36kW | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Smartgen | |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
We have teamed up with world-renowned diesel engine manufacturers such as Cummins, Perkins, Deutz, LovoL, Doosan, SDEC, Ricardo, Isuzu, FAW, Yangdong, Weichai,MTU and etc., to ensure reliable and efficient generator services.
The generator comes with a standard 50°C radiator with fan and enough engine cooling system to guarantee long time working. We source world-renowned brushless alternators from the likes of Stamford, Leroy Somer, Marathon, Tecgen, and Mecc alte.
The high-end generator set is also equipped with an advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model with Deep sea, Smartgen, ComAp and MEBAY softwares.
In addition, we use high-quality steel of thickness ranging from 2mm to 6mm as the material to build the covers of these generator sets.
High-density sound-absorbing material enables sound insulation and fireproofing effect. The generator also comes with 12V/24V DC battery with charger and wiring. To meet longer stand-by time requirements, we equip the generator with 10-12 hour fuel tank with fuel indicator. Further, the control and power output box comes with a high IP55 protection class and is waterproof and equipped with electric leakage protect and breaker.
Our generator set design also comes with certain unique features, such as the turn-back type air inflow & air outlet design to reduce the noise and improve engine efficiency. We offer various new design models, such as Silent, Supper silent, Soundproof, Trailer type, Container type and are manufactured to meet worldwide standards such as GB/T2820, ISO8528, IEC34, CE, EPA Tier4.
Customization:
Customized Service for Tecgen Weichai Diesel Generator
- Brand Name: Tecgen Weichai Diesel Generator
- Model Number: TG50WCS
- Place of Origin: Fuzhou, China
- Certification: ISO / CE / SASO / CIQ
- Minimum Order Quantity: 1 Unit
- Price: Negotiation
- Packaging Details: Plastic film package or Polywooden Package
- Delivery Time: 15 Working Days
- Payment Terms: T/T / L/C
- Supply Ability: 300 Units Per Month
- Rated Power: 36KW / 45kVA
- Max Power: 40kW / 50kVA
- Rated Voltage: 220, 230, 240, 380, 400, 415V
- Type: Diesel Generator
- Fuel Consumption: 230g/kw.h
- Rated Speed: 1500rpm/min
- Features: Continuous Generator, Generator Set Diesel Engine, Diesel Power Generator Set
Packing and Shipping:
Weichai Diesel Generator is shipped in a secure package, ensuring that it is protected during transit. The package includes:
- Diesel generator
- Installation manual
- Safety instructions
- Warranty card
All packages are shipped via a reliable shipping service, such as OOCL or Maersk. We provide tracking information for all shipment, so you can easily track your generator's progress.
We take extra care to ensure that all packages are securely packaged and shipped in a timely manner.
FAQ:
- Q1: What is the Brand Name of Tecgen Weichai Diesel Generator?
- A1: The Brand Name of Tecgen Weichai Diesel Generator is Tecgen Weichai.
- Q2: What is the Model Number of Tecgen Weichai Diesel Generator?
- A2: The Model Number of Tecgen Weichai Diesel Generator is TG50WCS.
- Q3: Where is the place of origin of Tecgen Weichai Diesel Generator?
- A3: The place of origin of Tecgen Weichai Diesel Generator is Fuzhou, China.
- Q4: What certifications does Tecgen Weichai Diesel Generator have?
- A4: Tecgen Weichai Diesel Generator has ISO / CE / SASO / CIQ certifications.
- Q5: What is the minimum order quantity for Tecgen Weichai Diesel Generator?
- A5: The minimum order quantity for Tecgen Weichai Diesel Generator is 1 Unit.
