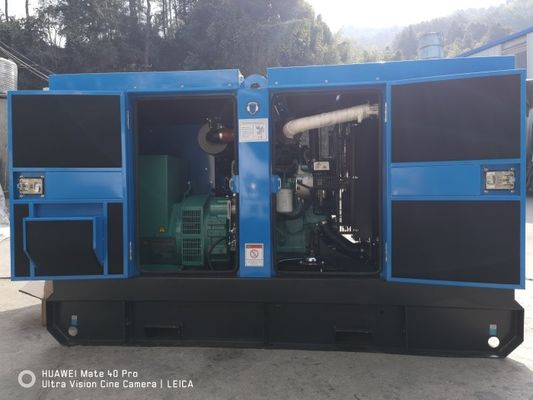

Silent Enclosed 231kVA Weichai Diesel Generator Couple With 3 Phase 4 Wire AC Alternator
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Weichai Diesel Generator |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TG254WCS |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plastic film package or Polywooden Package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand | Weichai | Type | Silent DG Genset |
|---|---|---|---|
| Rated Power | 185KW / 231kVA | Usage | Continuous Or Backup Unit |
| Rated Speed | 1500rpm/min | Rated Frequency | 50Hz |
| Company Type | Factory / Manufacturer | Rated Voltage | 220, 230, 240, 380, 400, 415V |
| Highlight | 231kVA Weichai Diesel Generator,Weichai Diesel Generator 3 Phase,185KW weichai marine genset |
||
Product Description
Silent Enclosed 231kVA diesel generator sets couple with 3 phase / 4 wire AC alternator
Product Description:
Weichai Diesel Generator Set
Weichai is a factory and manufacturer of superior quality diesel power generator sets. The Weichai diesel generator sets are renowned for their reliable, efficient performance and proven durability. Our Weichai diesel power generator sets have a rated frequency of 50Hz and a rated speed of 1500rpm/min. They are suitable for both continuous and backup use, making them ideal for a variety of applications. With their impressive power systems, our Weichai diesel generator sets provide reliable power and energy supply for your business or home.
Features:
- Product Name: Weichai Diesel Generator
- Usage: Continuous Or Backup Unit
- Rated Voltage: 220, 230, 240, 380, 400, 415V
- Rated Speed: 1500rpm/min
- Company type: Factory / Manufacturer
- Type: Silent DG Genset
- Keywords: Weichai Diesel Genset, Weichai Diesel Generating Set, Weichai Diesel Generator Set
Technical Parameters:
| Technical Specification: | ||
| Prime 231kVA DG Diesel Engine Generator Set Specification | ||
| Genset Model | TG254WC | TG254WCS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 Phase, 4 Wires | |
| Rate Current | 333.4A | |
| Prime Power | 185kW / 231kVA | |
| Standby Power | 204kW / 254kVA | |
| Engine Model | WP10D238E200 | |
| Alternator Model | TGI274S185 | |
| Controller | HGM6110N | |
| Weight & Dimensions | ||
| Length (mm) | 2400 | 2900 |
| width (mm) | 950 | 1100 |
| Height (mm) | 1400 | 1650 |
| Weight (kgs) | 1750 | 2400 |
| Engine Specification | ||
| Brand | WEICHAI | |
| Engine Model | WP10D238E200 | |
| Prime power (Max) | 167kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged & InterCooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 105 x 130 | |
| Displacement (L) | 6.75 | |
| Cooling | water | |
| Compression Ratio | 17:1 | |
| Engine Oil capacity (L) | 12 | |
| Coolant Capacity ( In radiator) | 12 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 50.7 | |
| 75% Load (L/h) | 38.0 | |
| 50% Load (L/h) | 25.3 | |
| 25% Load (L/h) | 12.7 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S185 | |
| Rate Output | 185kW | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Smartgen | |
| Model | HGM6110N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarms | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Weichai Diesel Generator – Tecgen Weichai Diesel Generator (TG254WCS)
Tecgen Weichai Diesel Generator (TG254WCS) is a powerful and reliable Weichai DG Genset developed by Tecgen, a manufacturer and factory based in Fuzhou, China. With a rated power of 185KW / 231kVA and rated speed of 1500rpm/min, this Weichai Diesel Power Genset is ideal for residential, commercial and industrial applications.
The Tecgen Weichai Diesel Generator is ISO / CE / SASO / CIQ certified and comes with a minimum order quantity of 1 unit. Rated voltage options include 220, 230, 240, 380, 400 and 415V. Price is negotiable and it is supplied in either plastic film package or polywooden package. Delivery time is 15 working days and payment terms include T/T and L/C. The factory has a production capacity of 300 units per month.
Tecgen Weichai Diesel Generator is the perfect choice for customers looking for a reliable Weichai Diesel Generator Set. It is backed by world-class Weichai brand and is ideal for those who value quality and performance.
Customization:
Weichai Diesel Generator
Brand Name: Tecgen Weichai Diesel Generator
Model Number: TG254WCS
Place of Origin: Fuzhou, China
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Plastic film package or Polywooden Package
Delivery Time: 15 Working Days
Payment Terms: T/T / L/C
Supply Ability: 300 Units Per Month
Rated Speed: 1500rpm/min
Rated Power: 185KW / 231kVA
Rated Voltage: 220, 230, 240, 380, 400, 415V
Type: Silent DG Genset
Rated Frequency: 50Hz
Weichai Diesel Generator Set is a reliable power source for commercial and industrial applications. It features a Weichai Diesel Engine, a durable and efficient power generator, enabling dependable and continuous power output. With its low noise emission and high fuel efficiency, it is an ideal choice for wide range of applications. It is certified with ISO / CE / SASO / CIQ, and the minimum order quantity is 1 unit. The price is negotiable, and the delivery time is 15 working days. It is packaged in plastic film package or polywooden package, and the payment terms are T/T / L/C.
Weichai Diesel Power Genset offers a rated speed of 1500rpm/min, a rated power of 36kw, rated voltage of 220, 230, 240, 380, 400 and 415v, and a rated frequency of 50Hz. It has a supply ability of 300 units per month, making it an ideal choice for commercial and industrial applications. It is reliable, efficient and cost-effective, providing continuous and reliable power.
Packing and Shipping:
Weichai Diesel Generator Packaging and Shipping
Weichai Diesel Generators are packaged and shipped to ensure they are safe during transit. Each generator is placed in a sturdy, reinforced cardboard box, and surrounded by cushioning material to protect it from damage. The box is then sealed and labeled with the relevant shipping information for easy tracking and identification. The generator is then loaded onto a truck, ship, or airplane and shipped to its final destination.
FAQ:
Q&A for Weichai Diesel Generator
Q1: What is the Brand Name for Tecgen Weichai Diesel Generator?
A1: The Brand Name for Tecgen Weichai Diesel Generator is Tecgen Weichai Diesel Generator.
Q2: What is the Model Number of Tecgen Weichai Diesel Generator?
A2: The Model Number of Tecgen Weichai Diesel Generator is TG254WCS.
Q3: Where is the Place of Origin for Tecgen Weichai Diesel Generator?
A3: The Place of Origin for Tecgen Weichai Diesel Generator is Fuzhou, China.
Q4: What are the Certifications for Tecgen Weichai Diesel Generator?
A4: The Certifications for Tecgen Weichai Diesel Generator are ISO / CE / SASO / CIQ.
Q5: What is the Minimum Order Quantity for Tecgen Weichai Diesel Generator?
A5: The Minimum Order Quantity for Tecgen Weichai Diesel Generator is 1 Unit.
