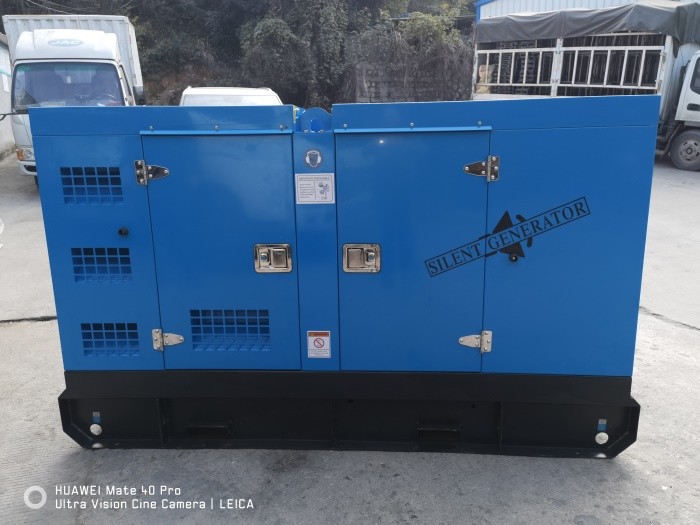

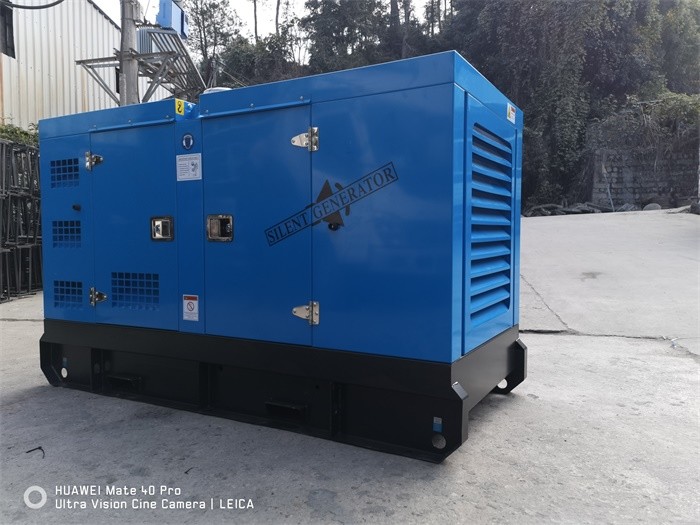

380V 125kVA Weichai Diesel Powered Generator 100kW
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Weichai Diesel Generator |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TG138WCS |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plastic film package or Polywooden Package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent DG Genset | Rated Frequency | 50Hz |
|---|---|---|---|
| Brand | Weichai | Company Type | Factory / Manufacturer |
| Rated Power | 125kVA | Rated Speed | 1500rpm/min |
| Rated Voltage | 220, 230, 240, 380, 400, 415V | Usage | Continuous Or Backup Unit |
| Highlight | 125kVA diesel powered generator,Weichai diesel powered generator,100kW diesel power generator for home |
||
Product Description
380V 125kVA Weichai Diesel Power Generator - Reliable Source of Power Generation
Product Description:
Weichai Diesel Generator is a reliable power system manufactured by Weichai, a top global manufacturer in the industry. Weichai Diesel Generator is a silent DG Genset with a rated power of 125kVA, suitable for both continuous and backup use. It has a rated frequency of 50Hz, and is renowned for its superior quality and excellent performance. Our Weichai Diesel Power System is designed to provide reliable power to residential, commercial, industrial and agricultural applications. With its quality components and advanced technology, Weichai Diesel Generating Set is the ideal choice for those seeking reliable and cost-effective power solutions.
Features:
- Product Name: Weichai Diesel Generator
- Brand: Weichai
- Rated Frequency: 50Hz
- Type: Silent DG Genset
- Rated Power: 125kVA / 100kW
- Rated Speed: 1500rpm/min
- Tags: Weichai Diesel Genset, Weichai Diesel Generator Set, Weichai Diesel Power Generator Set
Technical Parameters:
| Technical Specification: | ||
| 110kW Weichai Diesel Engine Generator Set Specification | ||
| Genset Model | TG138WC | TG138WCS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 Phase, 4 Wires | |
| Rate Current | 144.3A | |
| Prime Power | 100kW / 125kVA | |
| Standby Power | 110kW / 138kVA | |
| Engine Model | WP6D132E200 | |
| Alternator Model | TGI274S100 | |
| Controller | HGM6110N | |
| Weight & Dimensions | ||
| Length (mm) | 1800 | 2450 |
| width (mm) | 950 | 1100 |
| Height (mm) | 1150 | 1450 |
| Weight (kgs) | 1550 | 2050 |
| Engine Specification | ||
| Brand | WEICHAI | |
| Engine Model | WP6D132E200 | |
| Prime power | 120kW / 132kW | |
| Injection | Indirect | |
| Aspiration | Turbocharged & InterCooled | |
| No. of cylinders | 6 | |
| Bore of Stroke (mm) | 105 x 130 | |
| Displacement (L) | 6.75 | |
| Cooling | water | |
| Compression Ratio | 17:1 | |
| Engine Oil capacity (L) | 12 | |
| Coolant Capacity ( In radiator) | 12 | |
| Governor | Mech | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 30 | |
| 75% Load (L/h) | 23 | |
| 50% Load (L/h) | 16 | |
| 25% Load (L/h) | 8 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI274S100 | |
| Rate Output | 125kVA | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Smartgen | |
| Model | HGM6110N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarms | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
The Weichai Diesel Power Generator is a reliable source of electrical power for any application. It is perfect for industrial, commercial, and residential use. The Tecgen Weichai Generator is designed with the highest quality components, making it an excellent choice for those who need a dependable power source. The Weichai Diesel Power System comes with a Weichai DG Genset that offers superior performance and reliability. This generator is equipped with the latest technology for efficient operation and optimal performance. It is also designed with a powerful engine and advanced control systems for maximum output and fuel efficiency.
The Tecgen Weichai Generator is certified by ISO, CE, SASO, and CIQ, and is available in a variety of sizes. It is also backed by a one-year limited warranty. The minimum order quantity is one unit and the price is negotiable. The packaging is available in plastic film package or polywooden package and the delivery time is 15 working days. Payment terms are available through T/T or L/C. The Weichai Diesel Power Generator has a rated power of 125kVA / 100KW and is available in 220, 230, 240, 380, 400, and 415V. It has a rated frequency of 50Hz and a rated speed of 1500rpm/min. The supply ability of this generator is 300 units per month.
Customization:
Tecgen Weichai Diesel Generator
Brand Name: Tecgen Weichai Diesel Generator
Model Number: TG138WCS
Place of Origin: Fuzhou, China
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Plastic film package or Polywooden Package
Delivery Time: 15 Working Days
Payment Terms: T/T / L/C
Supply Ability: 300 Units Per Month
Rated Speed: 1500rpm/min
Rated Frequency: 50Hz
Usage: Continuous Or Backup Unit
Company type: Factory / Manufacturer
Rated Power: 125kVA / 100kW
Weichai Diesel Power Generator is a reliable and cost-effective generator system for commercial and industrial use. It is capable of producing high-quality power with low maintenance. The Weichai Diesel Generator System is designed to meet the most demanding requirements for continuous or backup power generation. This Weichai Diesel Power Generator is equipped with a reliable and efficient Weichai diesel engine, making it a reliable and cost-effective choice for your commercial and industrial needs.
Packing and Shipping:
Packaging and Shipping
Weichai Diesel Generator is packed using an EPE foam lining and a five-layer corrugated board box to ensure that the product is safe and secure during shipment.
Weichai Diesel Generator is shipped via air, sea, or ground freight. We can also use express services if needed.
```
FAQ:
Q&A about Tecgen Weichai Diesel Generator
Q1: What is the Brand Name of the generator?
A1: The Brand Name of the generator is Tecgen Weichai Diesel Generator.
Q2: What is the Model Number of the generator?
A2: The Model Number of the generator is TG138WCS.
Q3: Where is it produced?
A3: It is produced in Fuzhou, China.
Q4: What certifications does the generator have?
A4: It has ISO / CE / SASO / CIQ certifications.
Q5: What are the terms of payment?
A5: The terms of payment are T/T / L/C.
