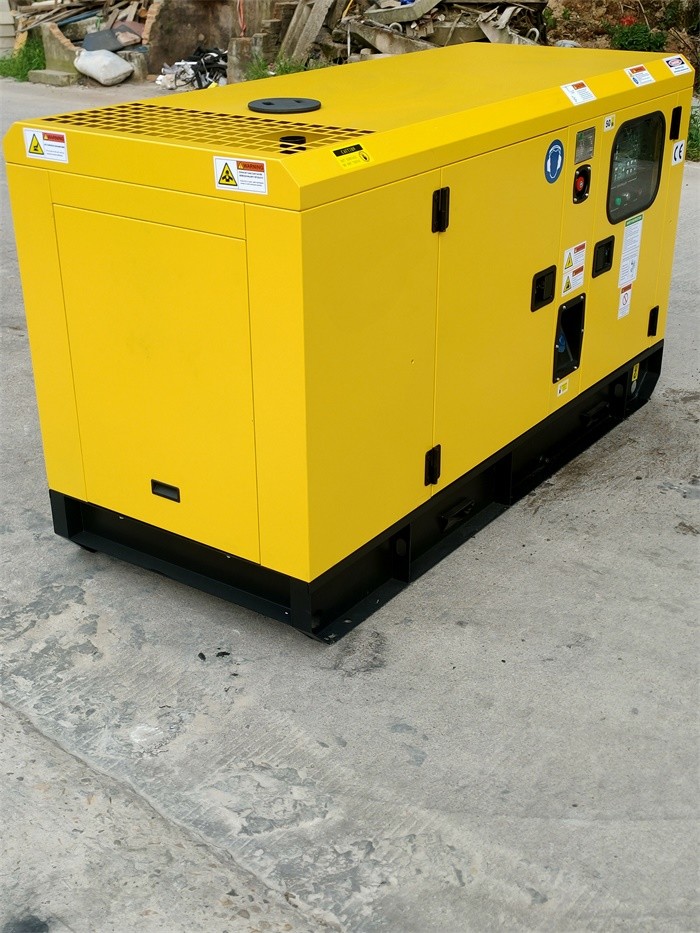

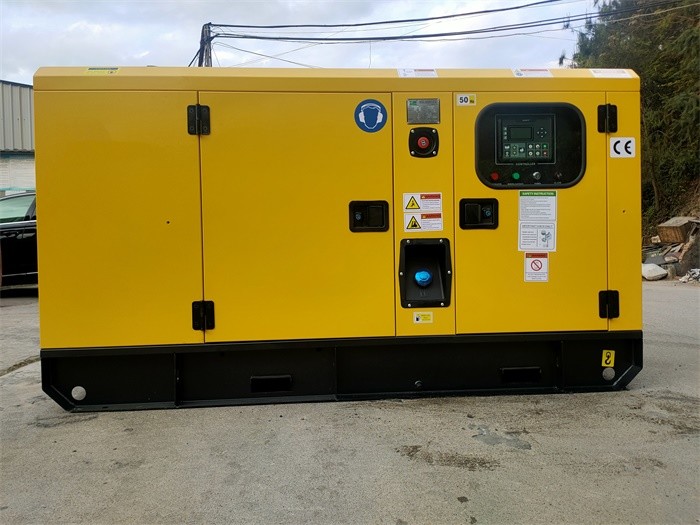

Standby Power 20KW Weichai Silent Diesel Generator For Home
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Weichai Diesel Generator |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TG25WCS |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plastic film package or Polywooden Package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Company Type | Factory / Manufacturer | Type | Silent DG Genset |
|---|---|---|---|
| Brand | Weichai | Rated Frequency | 50Hz |
| Rated Speed | 1500rpm/min | Rated Voltage | 220, 230, 240, 380, 400, 415V |
| Usage | Continuous Or Backup Unit | Rated Power | 18kW / 23kVA |
| Highlight | 20KW silent diesel generator for home,23kVA silent diesel generator for home,18kW silent generator |
||
Product Description
StandbyPower 20KW Weichai generator set silent case diesel generating set home use
Product Description:
Weichai Diesel Generating Set is a reliable and efficient power solution for industrial and commercial applications. It is specifically designed for continuous operation or as a backup unit. This Weichai Diesel Generating Set is high performance, yet quiet and durable. It has a 50Hz rated frequency and 1500rpm/min rated speed, making it ideal for a wide range of applications. The Weichai Diesel Generating Set is also designed to be quiet and efficient, meaning it can be used in residential and commercial areas without creating a disturbance. The Weichai Diesel Generating Set is reliable and proven to provide safe, clean and reliable power. It is built with the highest quality parts for long-term reliability and performance.
Features:
- Product Name: Weichai Diesel Generator
- Rated Voltage: 220, 230, 240, 380, 400, 415V
- Rated Speed: 1500rpm/min
- Type: Silent DG Genset
- Company type: Factory / Manufacturer
- Brand: Weichai
- Keywords: Weichai Diesel Generator, Weichai Diesel Power Generator Set, Weichai Diesel Generating Set
Technical Parameters:
| Technical Specification: | ||
| Emergency 20kW WEICHAI Generator Set Specification | ||
| Genset Model | TG25WC | TG25WCS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 33.2A | |
| Prime Power | 18kW / 23kVA | |
| Standby Power | 20kW / 25kVA | |
| Engine Model | WP2.3D25E200 | |
| Alternator Model | TGI184S18 | |
| Controller | HGM6120N | |
| Weight & Dimensions | ||
| Length (mm) | 1750 | 2300 |
| Width (mm) | 840 | 980 |
| Height (mm) | 1360 | 1460 |
| Weight (kgs) | 550 | 800 |
| Engine Specification | ||
| Brand | Weichai | |
| Engine Model | WP2.3D25E200 | |
| Prime/Standby power | 23kW / 25kW | |
| Injection | Indirect | |
| Aspiration | Natural ASP | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 89 x 92 | |
| Displacement (L) | 2.3 | |
| Cooling | water | |
| Compression Ratio | 17.3:1 | |
| Engine Oil capacity (L) | 4 | |
| Coolant Capacity ( In radiator) | 4 | |
| Governor | Electric | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 4.9 | |
| 75% Load (L/h) | 3.7 | |
| 50% Load (L/h) | 2.5 | |
| 25% Load (L/h) | 1.2 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S18 | |
| Rate Output | 18kW | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Smartgen | |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Applications:
Tecgen Weichai Diesel Generator, model number TG25WCS, is a powerful diesel power generator set manufactured by Fuzhou-based Tecgen. It is certified by ISO, CE, SASO and CIQ. The minimum order quantity is one unit and the price is negotiable. It is packed in either plastic film package or Polywooden Package and it can be delivered within 15 working days after payment. Tecgen is capable of providing up to 300 units of Weichai Diesel Generator sets per month.
Tecgen Weichai Diesel Generating Set is designed for both continuous and backup electricity supply. It supports rated voltage of 220, 230, 240, 380, 400 and 415V and syandby power of 20KW. It is a silent DG genset, which makes it suitable for a wide variety of applications. As a factory or manufacturer based in Fuzhou, Tecgen has built a solid reputation for its Weichai Diesel Generator System, and has received various positive reviews from both domestic and overseas clients.
Customization:
Weichai Diesel Power Generator
- Brand Name: Tecgen Weichai Diesel Generator
- Model Number: TG25WCS
- Place of Origin: Fuzhou, China
- Certification: ISO / CE / SASO / CIQ
- Minimum Order Quantity: 1 Unit
- Price: Negotiation
- Packaging Details: Plastic film package or Polywooden Package
- Delivery Time: 15 Working Days
- Payment Terms: T/T / L/C
- Supply Ability: 300 Units Per Month
- Rated Speed: 1500rpm/min
- Usage: Continuous Or Backup Unit
- Standby Power: 20KW / 25kVA
- Brand: Weichai
- Rated Voltage: 220, 230, 240, 380, 400, 415V
Weichai Diesel Generating Set, Weichai DG Genset is the reliable and efficient power generator you need for your business. Contact us for more information!
Packing and Shipping:
Weichai Diesel Generator packaging and shipping includes:
- Product is packed in a wooden case with foam inside to avoid vibration and damage.
- The wooden case will be strapped with steel strap and with Weichai's logo.
- It will be shipped with a truck to the customer's destination.
FAQ:
- Q1: What is the brand name of the Weichai Diesel Generator?
- A1: The brand name of the Weichai Diesel Generator is Tecgen Weichai Diesel Generator.
- Q2: What is the model number of the Weichai Diesel Generator?
- A2: The model number of the Weichai Diesel Generator is TG25WCS.
- Q3: Where is the Weichai Diesel Generator made?
- A3: The Weichai Diesel Generator is made in Fuzhou, China.
- Q4: What certifications does the Weichai Diesel Generator have?
- A4: The Weichai Diesel Generator has ISO / CE / SASO / CIQ certifications.
- Q5: How much does the Weichai Diesel Generator cost?
- A5: The price of the Weichai Diesel Generator is negotiable.
