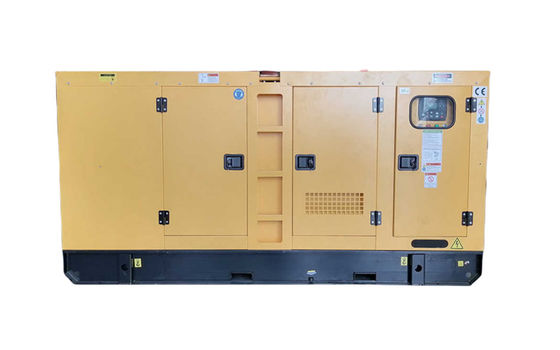

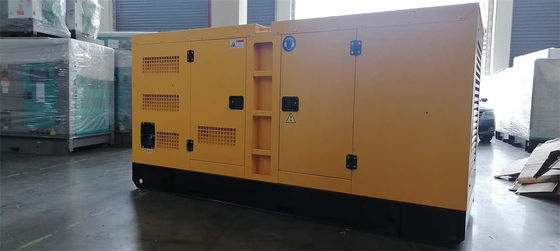

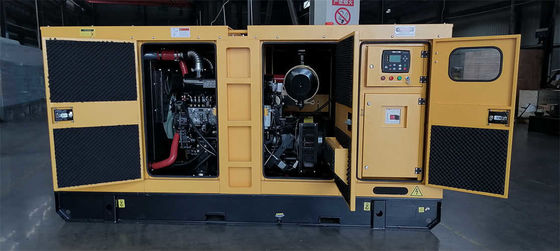

100KVA 110KVA Power Diesel Generator with Durable Engine for Your Industrial Needs
| Place of Origin | China |
|---|---|
| Brand Name | Ricardo Generator |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TG110R |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood case / Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 400 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Open / Silent | Frequency | 50Hz@1500rpm Or 60Hz@1800rpm |
|---|---|---|---|
| Engine Model | R6105AZD | Controller Model | HGM6120N |
| Alternator Type | Brushless | Alternator Insulation | IP21 ~ IP23 |
| Rated Voltage | 220/380V, 230V/400V, 240V/415V,127/220V Etc. Other Voltage Is Optional | Options | ATS / Water Heater |
Product Description
100KVA 110KVA Power Diesel Generator with Durable Engine for Your Industrial Needs
Product Description:
Ricardo Backup Generators are the perfect choice for reliable, cost-effective, and secure power.
Features:
- Product Name: Ricardo Diesel Generators
- Frequency: 50Hz@1500rpm Or 60Hz@1800rpm
- Alternator Insulation: IP21 ~ IP23
- Options: ATS / Water Heater
- Rated voltage:: 220/380V, 230V/400V, 240V/415V,127/220V Etc. Other Voltage Is Optional
- Genset Type: Open / Silent
Technical Parameters:
| Technical Parameter for Diesel Generator | Genset Model | TG110R |
| Prime Power | 100kVA/80kW | |
| Standby Power | 110kVA/88kW | |
| Frequency | 50Hz | |
| Rated Voltage | 400V | |
| Power Factor | 0.8 | |
| Engine Brand | Ricardo | |
| Engine Model | R6105AZD | |
| Alternator Brand | Tecgen | |
| Alternator Model | TGI274S-80 | |
| Engine General Data | Engine Power(kW) | 100 |
| Cyl / Arrangement | 6L | |
| Air Intake way | Turbo | |
| Bore×Stroke (mm×mm) | 105x130 | |
| Speed Governor | Mechanical | |
| Fuel Consumption (g/kw.h) | 224 | |
| Alternator Data | Model | TGI274S-80 |
| Brand | Tecgen Stamford | |
| Rate Output | 100kVA/80kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Control System | Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brand | Mebay, Deif, Deepsea | |
| Starting Voltage | 24V | |
Applications:
Ricardo Diesel Engine Generators are designed with top-grade Ricardo diesel engines, making them reliable and fuel-efficient.
Customization:
Ricardo Diesel Generators: The Perfect Backup GeneratorRicardo Generators provide the perfect backup power solution for any application. Our diesel powered generators are designed with a Ricardo engine and come with a range of options, including Automatic Transfer Switch (ATS) and water heater. All our generators are ISO, CE, SASO and CIQ certified, with a minimum order quantity of one unit.
Support and Services:
Technical Support and Service for Ricardo Diesel Generators
We take pride in providing our customers with the highest quality of service, and our technical support team is highly experienced and knowledgeable. Our team is dedicated to helping customers get the most out of their generators, and we are committed to providing them with the highest level of service and satisfaction.
FAQ:
Q&A about Ricardo Diesel Generators
- Q: What is the brand name of Ricardo Diesel Generators?
A: The brand name of Ricardo Diesel Generators is Ricardo Generator. - Q: What is the model number of Ricardo Diesel Generators?
A: The model number of Ricardo Diesel Generators is TGR. - Q: Where are Ricardo Diesel Generators made?
A: Ricardo Diesel Generators are made in China. - Q: What certifications does Ricardo Diesel Generators have?
A: Ricardo Diesel Generators have ISO / CE / SASO / CIQ certifications. - Q: What is the minimum order quantity for Ricardo Diesel Generators?
A: The minimum order quantity for Ricardo Diesel Generators is 1 unit.
