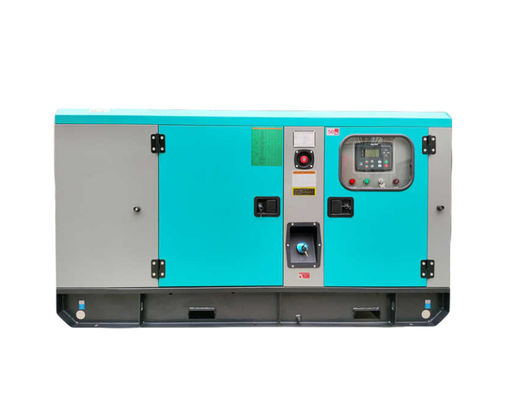

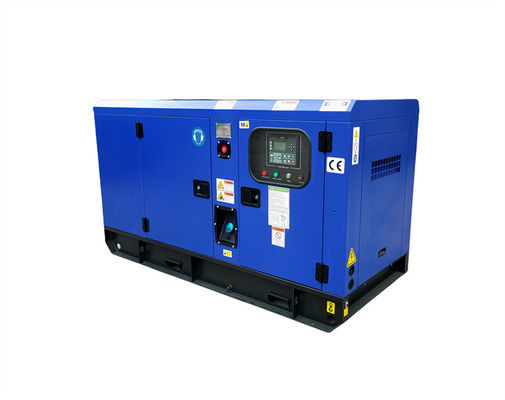

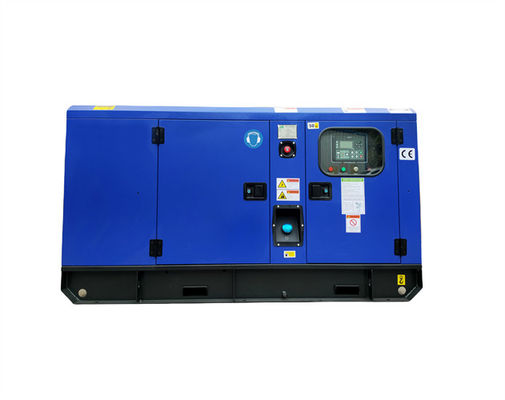

50HZ 400V 30KVA Silent Power Generator Set With Ricardo Engine And Brushless Alternator
| Place of Origin | China |
|---|---|
| Brand Name | Ricardo |
| Certification | CE/SONCAP/FCC/SGS |
| Model Number | TG33RS |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood case Package or Plastic film package in container |
| Delivery Time | 15-20 working days after received deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 400 Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Diesel Generator Set | Type | Silent Type |
|---|---|---|---|
| Engine Brand | Ricardo | Alternator Brand | Tecgen |
| Control System | AMF/ATS | Output Type | AC Single Phase/Three Phase |
| Conditions Of Use | Land Use | Cooling Method | Water Cooling |
| Ambient Temp | ≤40 C | Genset Color | Color Is Optional |
| Highlight | 400V silent 3 phase generator,30KVA Silent Power Generator Set,Ricardo Engine Silent Power Generator Set |
||
Product Description
50HZ 400V 30KVA Silent Power Generator Set with Ricardo Engine and Brushless Alternator
1) Engine: Ricardo diesel engine, Water-cooled
2) Alternator: Tecgen Stamford Tech Brushless Alternator
Brushless H class insulation, Self excitation, IP 23 protection, AVR regulator,THF < 5%,low radio interference.
3) 3 phase 4 wires / 1 phase 2 wires
4) Three phase voltage Available :208V/220V/230V/240V/380V/390V/400V/415V/440V/460V/480V
Single phase available:100-250V
30KVA Silent Power Diesel Generator Set
50HZ 3 Phase 400V
| Technical Parameter for Diesel Generator | Genset Model | TG33R/S |
| Prime Power | 30kVA/24kW | |
| Standby Power | 33kVA/26kW | |
| Frequency | 50Hz | |
| Rated Voltage | 400V | |
| Power Factor | 0.8 | |
| Engine Brand | Ricardo | |
| Engine Model | K4100D | |
| Alternator Brand | Tecgen | |
| Alternator Model | TGI184S-24 | |
| Engine General Data | Engine Power(kW) | 30.1 |
| Cyl / Arrangement | 4L | |
| Air Intake way | Natural | |
| Bore×Stroke (mm×mm) | 100x115 | |
| Speed Governor | Mechanical | |
| Fuel Consumption (g/kw.h)) | 258.4 | |
| Alternator Data | Model | TGI184S-22 |
| Brand | Tecgen Stamford | |
| Rate Output | 30kVA/24kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Control System | Brand | |
| Model | TG6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brand | Mebay, Smartgen,Deif, Deepsea | |
| Starting Voltage | 12V | |
Genset Feature:
Engine
· Heavy duty diesel engine
· Four stroke, water cooled
· 12V and 24V stater and charge alternator
· Cooling radiator and fan
· Maintenance free battery including ract and cable
· Flexible fuel connection hoses and manual oil sump drain valve
· Exhaust silencer
Alternator
· Brushless, single bearing, flexible disc
· Insulation class: H
· Protection class: IP23
· Self-exciting and Self-regulation
Canopy
· All canopy designed with modular principles
· All metal canopy parts painted by electrostatic polyester power paint
· Soundproof design ensure that the noise level be controlled in small scope
· Convenient to lift and move
· Easy to maintenance and operate
Base Frame
· Base frame including position for forklift and crane
· Integral fuel tank
· Daily fuel tank continuously supply for 8-24 hours
· Fuel tank easy to maintain and clean
· Anti-vibration pads are flexed between engine and alternator.
Control System
Control, monitor and protect the Generator Set including:
· High water temperature
· Low oil pressure
· Over and under speed
· Over current
· Under/Over generator voltage
· Start and stop failure
· Low and high battery voltage
· Charge fail
· Emergency stop
Service:
1)Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2)Service quality assurance:
Our sale staffs are all experlence and professional ,who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service:
We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply:
We provide all kinds of spare parts and technical support.
