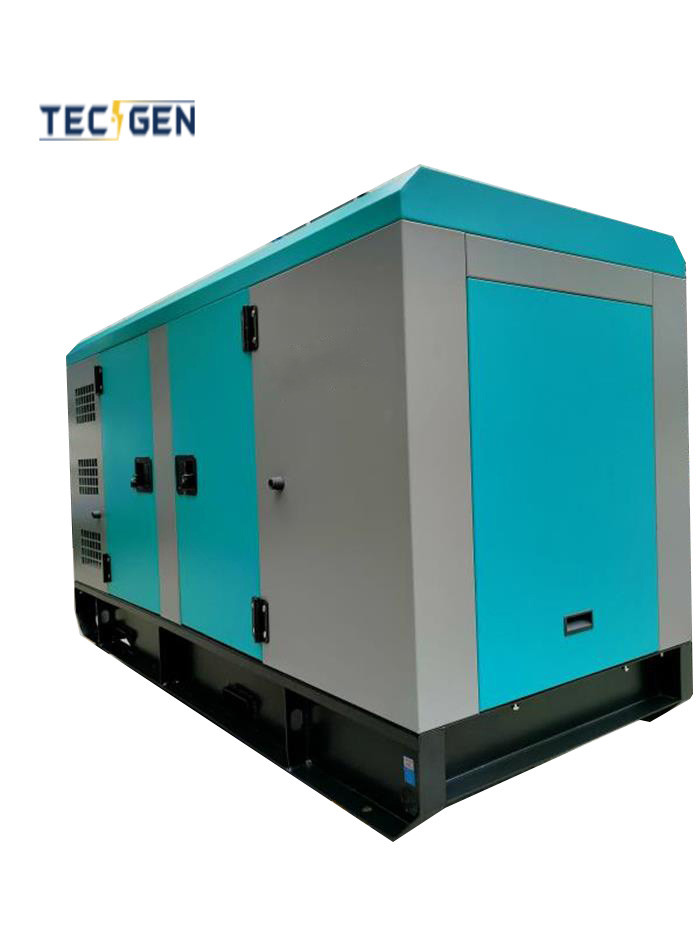

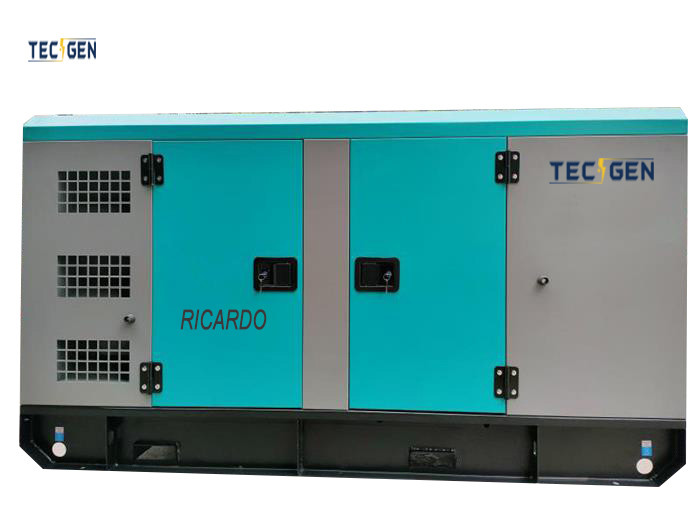

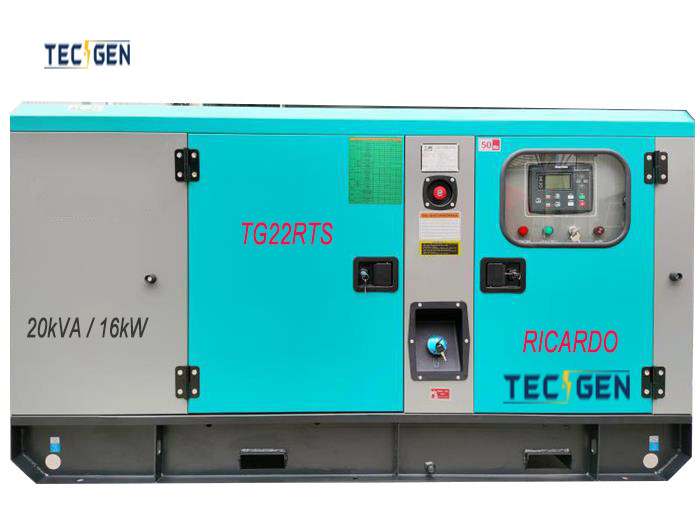

Ricardo diesel generator 20kVA Weifang Ricardo engine genset for emergency power
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE |
| Model Number | TG22RTS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C, D/P, , D/A, Western Union |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Ricardo Generator Set | Engine | Weifang Ricardo ZH490D |
|---|---|---|---|
| Prime Power | 16kW / 20kVA | Max Power | 18kW / 22kVA |
| Frequency | 50HZ | Rated Speed | 1500rpm |
| Genset Type | Silent Type | Advantage | Stable, Reliable, Adaptability, Low Price |
| Highlight | ricardo generator,generator ricardo,ricardo engine generator |
||
Product Description
Ricardo diesel generator 20kVA Weifang Ricardo engine genset for emergency power
By Brand new Weifang Ricardo Diesel Engine
Alternator Coupling with Copy Stamford, Stamford, Leroy Somer or Meccalte alternator
Mounted with 50C original factory radiator
Controlled by MEBAY DC52D digital controller as standard controller, DEIF for Option
Ricardo Diesel generator: 16kW / 20kVA Generator silent type /Open Type Diesel Generator set China Factory Supply With Weifang Ricardo Egnine
Engine Brand: Weifang Ricardo ZH490D
Alternator Brand: Copy Stamford, Leroy Somer, Stamford for options
Controller: Mebay DC52D as standard, DEIF, Smartgen, Deepsea and ComAp for options
Fuel tank: fuel tank for 8 hours continuous working, bigger fuel tank customed acceptable
Canopy: Canopy and open type for options
Certificate: CE / SGS
Working Condition : Below 1000m Altitude
| Ricardo Diesel Generator Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG22RTS | ZH490D | TGI184S16 | Mebay DC52D | 20kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port or any ports in China (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Ricardo Diesel Generator | |||||
| Engine Model | ZH490D Weifang Ricardo | ||||
| Alternator Mode | TGI184S16 Copy Stamford | ||||
| Rated Output | 20kVA / 16kW | ||||
| Standby Output | 22kVA / 18kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 220 / 380V | ||||
| Rated Current | 30.4A | ||||
| Breaker | 63A Aisikai Breaker | ||||
| ATS | 63A Built-in ATS or Wall-mounted Box | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 75dB(A) | ||||
| Net Weight | 620KGS | ||||
| Genset size | L1910 * W910 * H1150mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Ricardo Diesel Generator | |||||
| Manufacture | Weifang Ricardo | ||||
| Model | ZH490D | ||||
| Rated Output/Speed | 22KW/1500RPM | ||||
| Standby Output/Speed | 24KW/1500RPM | ||||
| Aspiration | Natural ASP | ||||
| Speed Governor | MECH OR Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 90*100mm | ||||
| Displacement | 2.54 L | ||||
| Compression ratio | 18:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 4.8 L / h | ||||
| Fuel Consumption/standby output | 5.4 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Ricardo Diesel Generator | |||||
| Alternator Model | TGI184S16 | ||||
| Manufacture | Copy Stamford | ||||
| Rate Output | 20kVA | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Ricardo Diesel Generator | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | MEBAY DC52D | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 Celsius degree radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Ricardo Diesel Generator advantage
1. The model has been in the market for a long time, is stable, reliable, and has strong adaptability.
2. In after-sales service, the cost of purchasing accessories is low, there are many technicians who know how to repair, and the cost-effectiveness is high.
3. The parts have high universality and access channels, with low prices.
FAQ
Q: Do you offer OEM service?
A: Yes, we can provide OEM or ODM service for our Ricardo diesel generator
Q: What is your payment term?
A: 20% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 7-20 days after receiving deposit or original L/C.
Q: What’s your warranty of Ricardo diesel generator?
A: We provide 18 months or 1500 running hours for our Ricardo diesel generator
