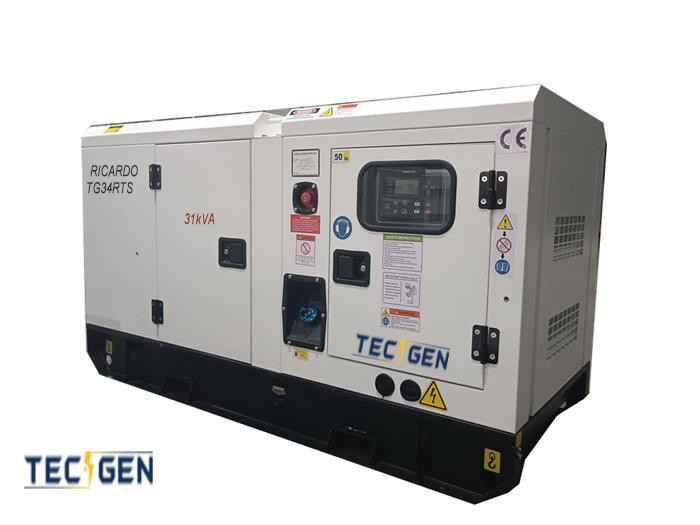

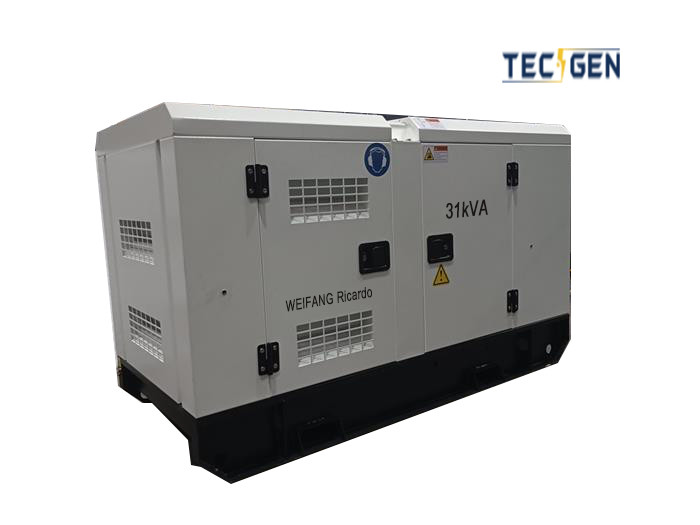

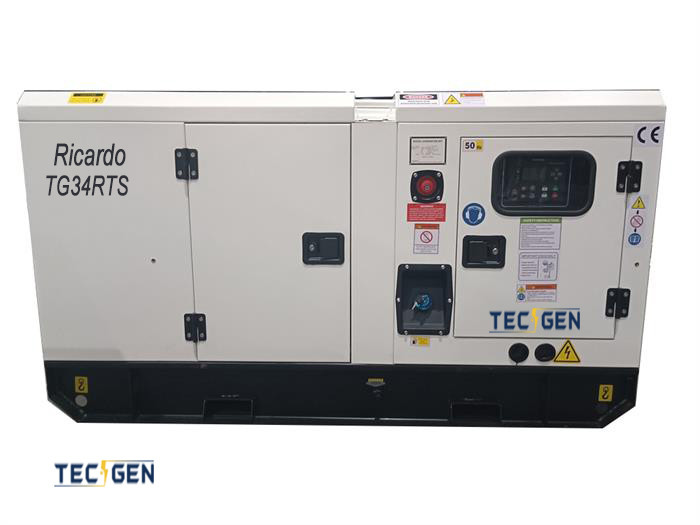

Ricardo diesel generator 31kVA Ricardo diesel engine ZH4102D generator silent enclosed
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE |
| Model Number | TG34RTS |
| Minimum Order Quantity | One Set |
| Price | 2100USD |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C, D/A, D/P |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Silent Ricardo Genset | Prime Output | 31kVA / 25kW |
|---|---|---|---|
| Max Power | 34kVA / 27kW | Engine Brand | Weifang Ricardo Series Engine |
| Alternator | Copy Stamford | Speed Governor | MECH Or Electric |
| ATS | Built-in Or ATS Box | Color | RAL Standards Or Customed |
| Highlight | ricardo generator,generator ricardo,ricardo engine generator |
||
Product Description
Ricardo diesel generator 31kVA Ricardo diesel engine ZH4102D generator silent enclosed
Ricardo Diesel Generator Set specs:
Engine Brands: Powered by Weifang Ricardo ZH4102D 4-cylinder water cooled engine
Rated output: 13kW to 300kW / 16kVA to 375kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled
Speed Governor method: MECH or Electric
Rated speed: 50Hz at 1,500rpm / 60Hz at 1,800rpm
Noise level: 60dB to 72dB at 7 meters away
Alternator:
Brands: AC brushless alternator, single bearing, brushless type,
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Generator Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed: 1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic 1.0% voltage regulation in static conditions (maximum)
Protection class: IP23
Control panel: Mebay, DEIF, Smartgen, Deepsea, ComAp, Tecgen
31kVA Ricardo Diesel Generator Datasheets:
| Ricardo Diesel Generator Set Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG34RTS | ZH4102D | TGI184S25 | Mebay DC52D | 31kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Ricardo Diesel Generator Set | |||||
| Engine Model | ZH4102D | ||||
| Alternator Mode | TGI184S25 Copy Stamford | ||||
| Rated Output | 31kVA / 25kW | ||||
| Standby Output | 34kVA / 27kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 220 / 380V | ||||
| Rated Current | 47.1A | ||||
| Breaker | 63A Aisikai Breaker | ||||
| ATS | 63A Built-in ATS | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 85dB(A) | ||||
| Net Weight | 640KGS | ||||
| Genset size | L1600 * W700 * H1000mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Ricardo Diesel Generator Set | |||||
| Manufacture | Weifang Ricardo | ||||
| Model | ZH4102D | ||||
| Rated Output/Speed | 33KW/1500RPM | ||||
| Standby Output/Speed | 36KW/1500RPM | ||||
| Aspiration | Natural ASP | ||||
| Speed Governor | MECH OR Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 102*115mm | ||||
| Displacement | 3.76 L | ||||
| Compression ratio | 19:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 7.4 L / h | ||||
| Fuel Consumption/standby output | 8.1 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Ricardo Diesel Generator Set | |||||
| Alternator Model | TGI184S25 | ||||
| Manufacture | Copy Stamford | ||||
| Rate Output | 31kVA | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Ricardo Diesel Generator Set | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | MEBAY DC52D | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Weifang Ricardo Diesel Generator Key Features:
- Efficient ZH4102D engine by Weifang Ricardo
- Copy Stamford alternator (TGI184S25) for reliable power generation
- User-friendly Mebay DC52D controller for easy operation and monitoring
- Integrated ATS (Automatic Transfer Switch) for seamless power transfer
- Voltage regulation rate: ≤±1%
- Frequency regulation rate: ≤±5%
- High-quality components: Aisikai Breaker
- Standard protection: Power Factor 0.8, 3-phase, 4-wire connection
- Fuel-efficient design with a running time of 8 hours
- Additional options available: Integrated Fuel Tank, Water Heater, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
FAQ?
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 15 days after receiving deposit or original L/C.But if your order with some special design.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, CIQ for Egypt, SASO for Saudi Arabia, etc
