43kVA Weifang ricardo diesel generators with soundproof enclosed for home use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE |
| Model Number | TG47RTS |
| Minimum Order Quantity | One Set |
| Price | 2300USD |
| Packaging Details | Stretch film packaging or Polywooden Package |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | L/C, T/T, , D/P, D/A |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Genset Type | Soundproof | Output Type | AC 3 Phase |
|---|---|---|---|
| Frequency | 50HZ | Rated Output | 43kVA / 34kW |
| Standby Output | 47kVA / 38kW | Engine Model | ZH4105D |
| Engine Brand | Weifang Ricardo | Shipment Port | Fuzhou Port Or Any Ports In China |
| Highlight | ricardo generator,generator ricardo,ricardo engine generator |
||
Product Description

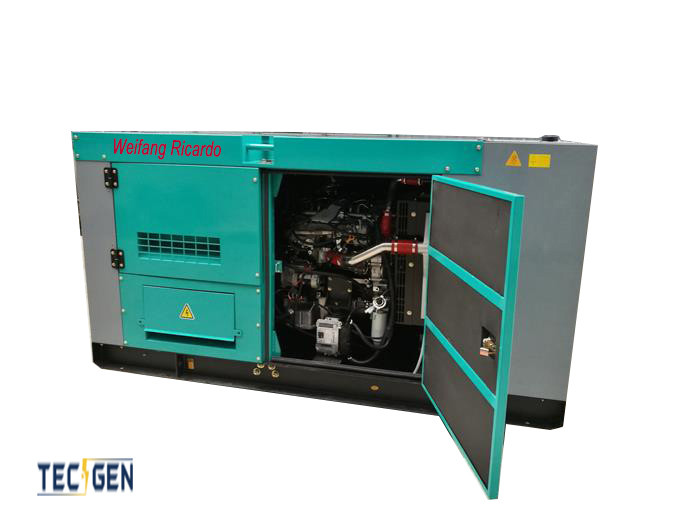

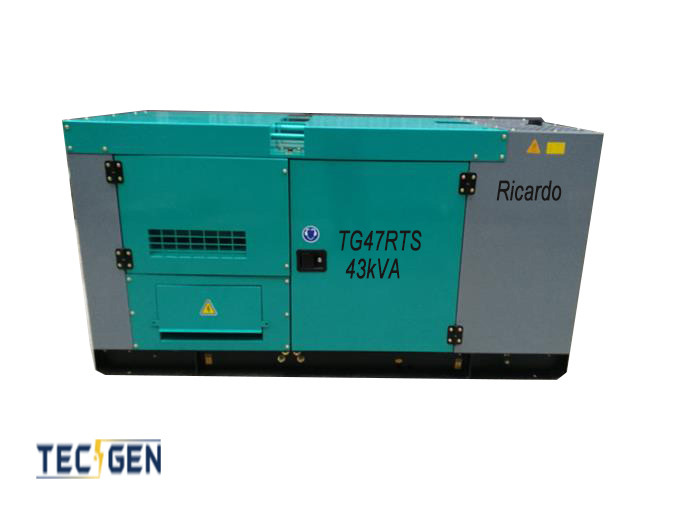

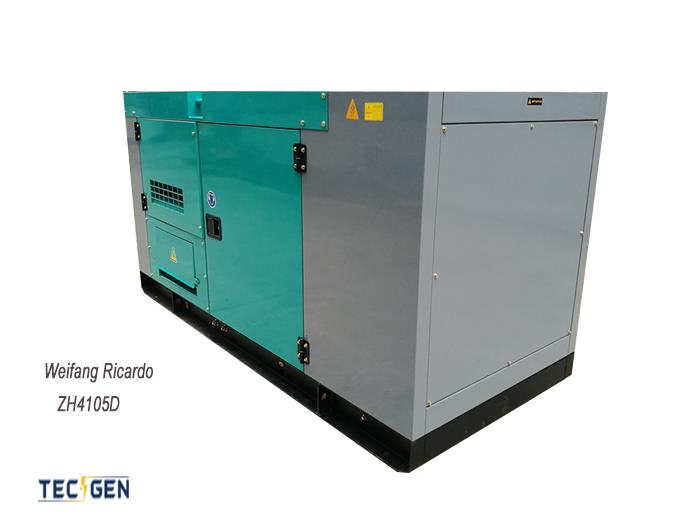

43kVA Weifang ricardo diesel generators with soundproof enclosed for home use
Ricardo Diesel Generator Data/Specification:
Voltage Available:
- 50Hz: 380V/220V, 400V/230V, 415V/240V, 480V/277V
- 60Hz: 220V/127V, 230V/132V, 220V/440V, 240V/480V
Ricardo Generator Set Specifications:
- Basic Specifications:
- Voltage: 220V/380V
- Frequency: 50Hz
- Power Factor: 0.8
- Phase: Three-phase, four-wire
- Key Features:
- Base fuel tank for 8 hours (customizable from 8 to 24 hours or Integrated Fuel Tank).
- Versatile: Suitable for open type, soundproof type, automatic type, trailer type, etc.
- Automatic Alarm System: Equipped with acousto-optic alarms and protection for various situations, such as start failure, water over temperature, oil pressure drop, overspeed, overload, and overcurrent.
Ricardo Diesel Generator General Datasheets:
| 43kVA Weifang Ricardo Generator Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG47RTS | ZH4105D | TGI224S34 | Mebay DC52D | 43kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of 43kVA Weifang Ricardo Generator | |||||
| Engine Model | ZH4105D | ||||
| Alternator Mode | TGI224S34 Copy Stamford | ||||
| Rated Output | 43kVA / 34kW | ||||
| Standby Output | 47kVA / 38kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 220 / 380V | ||||
| Rated Current | 65.3A | ||||
| Breaker | 100A Aisikai Breaker | ||||
| ATS | 100A Built-in ATS | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 85dB(A) | ||||
| Net Weight | 730KGS | ||||
| Genset size | L1650 * W720 * H1050mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for 43kVA Weifang Ricardo Generator | |||||
| Manufacture | Weifang Ricardo | ||||
| Model | ZH4105D | ||||
| Rated Output/Speed | 38KW/1500RPM | ||||
| Standby Output/Speed | 40KW/1500RPM | ||||
| Aspiration | Turbochagred | ||||
| Speed Governor | MECH OR Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 102*120mm | ||||
| Displacement | 4.15 L | ||||
| Compression ratio | 18:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 10.1 L / h | ||||
| Fuel Consumption/standby output | 11.4 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for 43kVA Weifang Ricardo Generator | |||||
| Alternator Model | TGI224S34 | ||||
| Manufacture | Copy Stamford | ||||
| Rate Output | 34kW | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of 43kVA Weifang Ricardo Generator | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | MEBAY DC52D | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Engine Specifications:
- Rated Speed: 1500rpm, four-strokes, water-cooling system, compliant with ISO3046 standard.
- Rated Output: Available from 8kW to 200kW.
- Weichai Engine Models: 495D, R4105D, R4105ZD, R6105ZD, R6105ZLD, R6105AZLD, R6105IZLD, 6113ZLD.
- Key Features of the Engine:
- High efficiency, ensuring low exhaust emissions and excellent start-up performance.
- Equipped with a 24V DC start motor for reliable and efficient starting.
- Engine-driven alternator for self-powering capabilities.
- High-pressure oil pump for optimized fuel delivery.
- Turbocharged for enhanced power output.
- Includes three filters for efficient filtration and engine protection.
- SAE flywheel shell for easy connection to various equipment.
Supply standard collocation for Ricardo Diesel Generator:
(1)Diesel engine with all accessories, 3 filter, electrical systems.
(2)Alternator.
(3)Steel structure.
(4)Fan and water cooling system.
(5)Flange connector.
(6)12V/24vstarting motor and charge engine.
(7)Air cleaner, fuel cleaner, oil cleaner.
(8)On-board control panel.
(9)MCCB air conservation switch.
(10)12V/24V starting accumulator and battery line.
