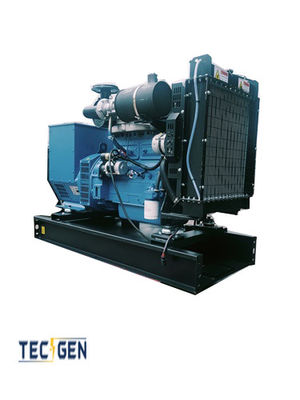

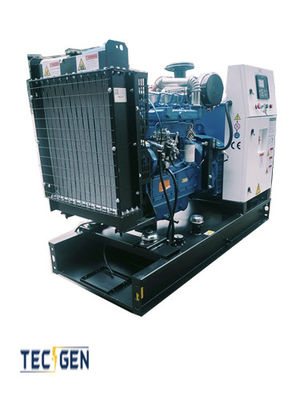

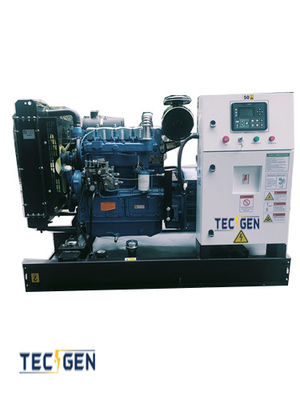

23kVA Ricardo generator 3 phase generator with open frame type for backup use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Production | Ricardo Generator | Engine | Ricardo Tianhe ZH490D |
|---|---|---|---|
| Alternator Model | TGI184S18 | Frequency | 50Hz |
| Rate Speed | 1500RPM | Rate Voltage | 230 / 400V |
| AMPS | 32.5A | Power | 23kVA Prime / 25kVA Standby |
| Highlight | ricardo generator,generator ricardo,ricardo engine generator |
||
Product Description
23kVA Ricardo generator 3 phase generator with open frame type for backup use
Ricardo Diesel Generator Sets: Premium Quality, Reliable Performance
Powerful & Efficient: 16kW / 20kVA silent or open type diesel generator sets, powered by the renowned Weifang Ricardo ZH490D diesel engine.
Flexible Alternator Options: Choose from top-tier alternator brands like Copy Stamford, Leroy Somer, or Stamford to meet your specific power requirements.
Sophisticated Control: Equipped with the Mebay DC52D digital controller as standard, ensuring precise and reliable operation. Options include DEIF, Smartgen, Deepsea, and ComAp controllers.
Durable Construction: Features a robust 50C original factory radiator for optimal cooling and extended lifespan.
Customizable Fuel Solution: Standard 8-hour fuel tank for continuous operation, with the option for larger custom-made fuel tanks.
Versatile Configurations: Available in canopy or open type configurations, tailored to your specific application needs.
Certified Quality: CE and SGS certifications guarantee compliance with international standards and reliability.
Optimal Working Conditions: Designed for operation at altitudes below 1000m, ensuring peak performance in most environments.
Trusted Supply: Backed by a China factory with years of experience in supplying Ricardo diesel generator sets, you can trust in our commitment to quality and reliability.
23kVA Weifang Ricardo Generator Specifications:
| Ricardo Diesel Generator Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG25RT | ZH490D | TGI184S18 | Mebay DC52D | 23kVA | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port or any ports in China (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Ricardo Generator | |||||
| Engine Model | ZH490D Weifang Ricardo | ||||
| Alternator Mode | TGI184S18 Copy Stamford | ||||
| Rated Output | 23kVA / 18kW | ||||
| Standby Output | 25kVA / 20kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 230 / 400V | ||||
| Rated Current | 32.5A | ||||
| Breaker | 63A Aisikai Breaker | ||||
| ATS | 63A Built-in ATS or Wall-mounted Box | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 75dB(A) | ||||
| Net Weight | 650KGS | ||||
| Genset size | L1500 * W600 * H950mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Ricardo Generator | |||||
| Manufacture | Weifang Ricardo Seies | ||||
| Model | ZH490D | ||||
| Rated Output/Speed | 22KW/1500RPM | ||||
| Standby Output/Speed | 24KW/1500RPM | ||||
| Aspiration | Natural ASP | ||||
| Speed Governor | MECH OR Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 90*100mm | ||||
| Displacement | 2.54 L | ||||
| Compression ratio | 18:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 5 L / h | ||||
| Fuel Consumption/standby output | 5.4 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Ricardo Generator | |||||
| Alternator Model | TGI184S18 | ||||
| Manufacture | Copy Stamford | ||||
| Rate Output | 23kVA | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Ricardo Generator | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | MEBAY DC52D | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 Celsius degree radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Advantages of Ricardo Diesel Generator:
- Long-standing Stability: Proven in the market for years, Ricardo diesel generators offer unparalleled stability and reliability, adapting to diverse applications.
- Cost-Effective After-sales Service: With affordable accessory costs and numerous experienced technicians, maintaining your generator is highly cost-effective.
- Widely Available Parts: Enjoy easy access to low-cost, universally compatible parts, ensuring smooth operations and minimal downtime.
FAQ:
Q: Do you provide OEM services?
A: Absolutely! Customized Ricardo diesel generators are our specialty.
Q: What are your payment terms?
A: 20% upfront, balance before shipment. We also accept irrevocable L/C.
Q: How long does it take to deliver?
A: Typically 7-20 days after deposit or L/C confirmation.
Q: What's the warranty period?
A: 18 months or 1500 running hours, guaranteed.
