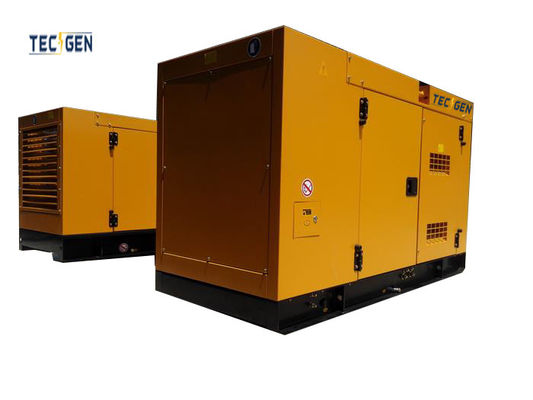

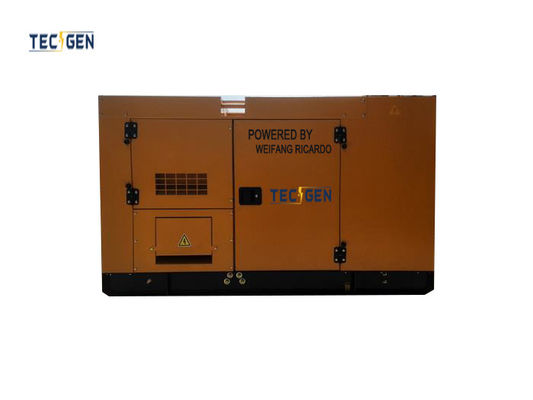

Silent diesel generator 18kVA ricardo engine generator for emergency power use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Ricardo Genset Silent | Max Output | 14kW / 18kVA |
|---|---|---|---|
| Frequency | 60Hz | Output Type | AC 3 Phase |
| IP Code | IP23 | Generator Efficiency | 98.5% |
| Diesel Engine | Weifang Ricardo | Production Capacity | 300 Units Per Month |
| Highlight | ricardo generator,generator ricardo,ricardo engine generator |
||
Product Description
Silent diesel generator 18kVA ricardo engine generator for emergency power use
Product Overview:
- Power Output: 13kW - 300kW
- Voltage Options: 480V, 440V, 400V, 220V, 208V, 120V
- Frequency: 60Hz
- Engine: Perkins, Water-cooled
- Alternator: Stamford, Leroysomer, or Tecgen (TGI)
- Control Panel: DEIF Controller, CE Certified
Engine Features:
- Cooling: Forced Water cooled
- Starting Method: MECH OR Electric
- Speed: 1,800rpm
- Noise Level: 65-75dB(A) at 7m
Alternator Specs:
- Rated Output: 7kVA - 1000kVA
- Voltage: 480V or Customed
- Frequency: 60Hz
- Power Factor: 0.8
- Phase: 3-phase, 4-wire
- Connection: Y or Custom
- Excitation: Phase Compound, or Brushless
- Voltage Regulation: Automatic, ±1.0% Static
- Protection: IP 22 or IP23
- Engine Connection: Direct Flywheel Coupling
Control Panel Highlights:
- Manufactured by: MEBAY
- Controller: MEBAY DC52D
- Instrumentation: Standard Engine, Voltmeter, Ammeter, Frequency Meter
- Protection: MCCB with Overload & Short Circuit
- Options: AMF Control Panel or ATS (Built-in, Box, Cabinet)
- Certification: CE Approved
18kVA Ricardo Genset Specifications:
| 18kVA Ricardo Engine Generator Datasheet | ||||
| Ricardo Generator Set | Genset Type | Soundproof | ||
| Genset Model | TG18RSD6 | |||
| Prime Output | 13kW / 16kVA | |||
| Max Output | 14kW / 18kVA | |||
| Engine model | Ricardo 4YT23-20D | |||
| Alternator | TGI164S13 | |||
| Frequency | 60Hz | |||
| Speed | 1800rpm | |||
| Voltage | 480V | |||
| Output Type | 3 Phase, 4 Wire | |||
| Current | 19.5A | |||
| Controller | MEBAY DC52D | |||
| ATS | Built-in ATS / Wall mounted Box | |||
| Breaker | Aisikai / Delixi | |||
| Battery | Varta | |||
| Fuel Tank | 8 running Hours | |||
| Demission | L1900x900x1170mm | |||
| Weight | 600kgs | |||
| Weifang Ricardo Generator set parameters | ||||
| Voltage setting range | ≥±10% | |||
| Steady state voltage regulation rate | ≤0.5% | |||
| Transient voltage deviation (100% sudden power reduction) | ≤+17% | |||
| Transient Voltage Deviation (40% Sudden Power) | ≤-6.5% | |||
| Voltage Stability Time (100% Sudden Power Reduction) | ≤2.8S | |||
| Voltage Stability Time (40% Sudden Power) | ≤2.5S | |||
| Frequency adjustment range | ≥±10%Adjustble | |||
| Frequency volatility | ≤±0.25% | |||
| Transient frequency deviation (100% sudden power reduction) | ≤+8% | |||
| Transient frequency deviation (40% sudden power) | ≤-5% | |||
| Frequency Recovery Time (100% Sudden Power Reduction) | ≤1.48S | |||
| Frequency recovery time (40% sudden power) | ≤1.35S | |||
| Weifang Ricardo Diesel Engine Parameters | ||||
| Weifang Ricardo Engine 4YT23-20D | Brand | Weifang Ricardo | ||
| Model | 4YT23-20D | |||
| Prime power | 20kW | |||
| Combustion | Direct Injection | |||
| No. of Cylinders | 6 Cylinder | |||
| Aspiration | Natural Aspiration | |||
| Compression Ratio | 18 : 1 | |||
| Speed | 1800rpm | |||
| Displacement | 2.31 | |||
| Bore* Storke | 88mm*95mm | |||
| governor | Electric | |||
| Start motor | DC 24V | |||
| Cooling Capacity | 5.5 | |||
| Cooling Type | Water cooling | |||
| FUEL CONSUMPTION | 225g/kW.h | |||
| AC Brushless Alternator Parameters | ||||
| Alternator TGI164S13 | Brand | Tecgen | ||
| Model | TGI164S13 | |||
| Rate Output | 13kW | |||
| Rate Speed | 1800rpm | |||
| Frequency | 60Hz | |||
| Altitude | ≤1000 | |||
| Alternator type | Single bearing, brushless type | |||
| Connection Type | 3 phase, 4 wire | |||
| Protection Grade | IP23 | |||
| Insulation Class | H | |||
| Voltage Regulation | AVR | |||
| Option brand | Stamford,Leroy Somer,Meccalte | |||
| Ricardo Genset Controller System | ||||
| Controller MEBAY DC52D | Brand | MEBAY | ||
| Model | DC52D | |||
| Working Voltage | DC8.0V to DC35.0V, continuous | |||
| Overall Dimensions (mm) | 233*38.5*173 | |||
| Functions | AMF/ATS | |||
| RS485 & CAN communication | ||||
| 9 Inlet & 7 Outlet | ||||
| PLC & BTN | ||||
| Protections | Under-speed | |||
| Over-speed | ||||
| Configurable crank connect | ||||
| Battery monitoring | ||||
| Charging alternator | ||||
| Pre-heat | ||||
| Coolant temperature | ||||
| Lube oil pressure | ||||
| Fuel level detection | ||||
| Fuel theft detection | ||||
| ECU communication failure | ||||
| ECU diagnostic lamp | ||||
| Option brand | DEEPSEA,Smartgen,ComAp | |||
| Optional accessories | ||||
| Engine | Alternator | Electrical system | ||
| Water Heater | Anti-condensation heater | Anti-condensation heater | ||
| Oil preheater | PMG | Unit control screen with three remote functions | ||
| Air starting motor | Parallel | ATS automatic load transfer screen | ||
| Heavy Air Filter for Desert | Generators of other temperature rise grades | Full-automatic parallel screen for multiple units | ||
| Heavy duty secondary muffler | RTD temperature sensor, 2 per phase | Remote control system separate from unit | ||
| Fuel system | Other | Cooling system | ||
| 12/24h Base tank | Super Silent Canopy | Split water tank | ||
| Oil - water separator | Static sound box generator set |
|
||
| Fully automatic oil supply system | Vehicle-mounted power generation vehicle | Heat exchanger and external circulation cooling tower | ||
| Integrated Fuel Tank | Towing generator set | Marine cooling system | ||
| Delivery Date of Diesel Generator Set | ||||
| Spot goods | QTY(Set) | 12 – 24 Sets | 24 – 120 Sets | |
| Delivery Time | 7-15 Days | 15 – 25 Days | ||
| Custom | Delivery Time | 20 Days | 20 – 30 Days | |
Stable & Reliable Power of Weifang Ricardo Diesel Engine Genset
- Low Noise & Vibration: Quiet, smooth operation.
- Maintenance-Friendly: Simple, cost-effective maintenance.
- Durable & Long-Lasting: Reliable for extended use.
Fuel-Efficient Performance
- Advanced Fuel Technology: Up to 95% fuel efficiency.
- Cost Savings: Lower fuel costs for you.
Ease of Operation & Maintenance
- User-Friendly Design: No technical expertise required.
- Safe to Use: Precise operation ensures operator safety.
Comprehensive Maintenance Service
- Tailored Solutions: Custom maintenance to meet your needs.
- Regular Upkeep: Ensuring safe, reliable operation.
Affordable Pricing
- Competitive Rates: Reasonable prices for your budget.
- Flexible Quoting: Tailored prices to fit your needs.
