Open frame Diesel Generator 1250kVA Weichai Diesel Generator With Burshless Alternator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Weichai Diesel Generator | Type Of Genset | Open-frame |
|---|---|---|---|
| Frequency | 50Hz / 380V | Engine Model | 12M33D1210E200 |
| Cylinder Of Engine | 12 Cylinders, V Type | Alternator | Copy Stamford TGI404S1000 |
| Controller | DEIF SGC-420 | Silent Type Option | 20ft Container Canopy Or 40ft Container |
| Highlight | burshless alternator Open-frame diesel generator,1250kVA Open-frame diesel generator,Weichai Open-frame diesel generator |
||
Product Description

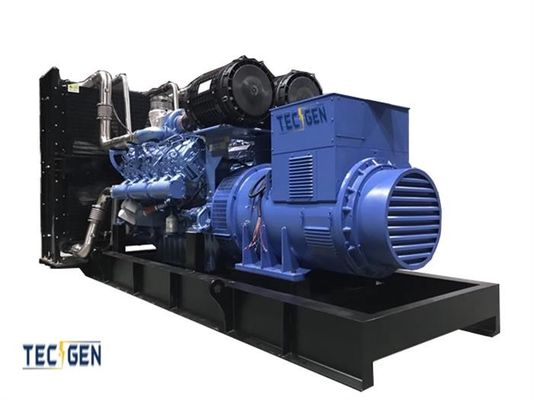

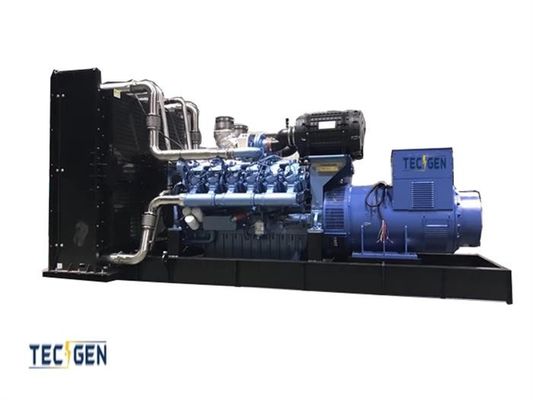

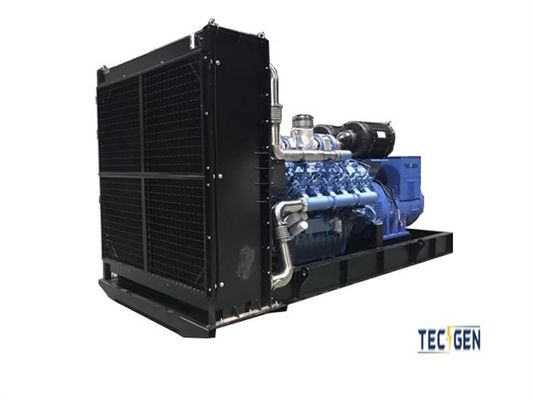

Open-frame diesel generator 1250kVA Weichai diesel generator with burshless alternator
Product Description: 1250kVA Weichai Open-Frame Diesel Generator Set
Introducing our robust 1250kVA Weichai Diesel Generator Set, a powerhouse designed to meet the demands of industrial and marine applications. With its powerful engine and generator, it delivers reliable and efficient power for a variety of uses.
Key Features:
- High-Power Output: Delivers a prime power of 1000kW/1250kVA and standby power of 1100kW/1375kVA.
- Durable Engine: 12M33D1210E200, a 12-cylinder, four-stroke, turbocharged engine for long-lasting performance.
- Efficient Generator: TGI404S1000 generator ensures smooth and reliable power generation.
Standard Features
- Advanced Control: Equipped with a DEIF SGC-420 controller for precise generator control and monitoring.
- Electronic Speed Control: Ensures smooth and efficient adjustment of generator speed.
- Durable Components: Includes a 50°C water tank, 24V maintenance-free lead-acid battery, battery rack, 1000L fuel tank, and industrial-grade muffler.
- Safety Features: Circuit breakers provide protection against overloads and short circuits.
Usage of Weichai Diesel Generator:
Ideal for industrial, commercial, and marine applications where reliable and continuous power is crucial.
Weichai Diesel Generator Technical Specifications:
| Technical Parameter for Weichai Diesel Generator | Genset Model | TG1375WC |
| Prime Power | 1000kW/1250kVA | |
| Standby Power | 1100kW/1375kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 220/380V | |
| Power Factor | 0.8 | |
| Governor | Electric | |
| Noise level (7m) | 95db(A) | |
| Engine Brand | Weichai | |
| Engine Model | 12M33D1210E200 | |
| Alternator Brand | Tecgen | |
| Alternator Brand | TGI404S1000 | |
| Dimension | Open: L4600 x W2100 x H2200mm | |
| Silent: L6000 x W2300 x H2400 | ||
| Fuel Tank Capacity | 900L |
12 Cylinders Weichai Diesel Engine Specifications:
| Engine General Data | Engine Brand | Weichai |
| Engine Model | 12M33D1210E200 | |
| Rated Output | 1100kW | |
| Rated Speed | 1500rpm | |
| Number of Cylinders | 12 | |
| Cylinder arrangement | V-type | |
| Displacement (L) | 39.2 | |
| Aspiration | Turbocharged & Intercooled | |
| Bore×Stroke (mm×mm) | 150x185 | |
| Compression Ratio | 15:1 | |
| Cooling | Forced Water Cooled | |
| Fuel Consumption at 100% load(L/H) | 261 |
Burshless Type Alternator & Controller Panel Parameters:
| Alternator Data | Model | TGI404S1000 |
| Brand | Tecgen | |
| Rate Output | 1250kVA | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | DEIF |
| Model | SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS & RS485 Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Circuit breaker | Delixi Brand 2000A Breaker | |
| Auto Transfer Switch | 2000A ATS Cabinet | |
| Genset Options | Output Socket | |
| 40ft Container Silent Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Options:
- ATS Cabinet: Seamless power transition in case of outages.
- Soundproof Enclosures: Available in 20' or 40' container sizes for reduced noise levels.
- Extended Fuel Tank: Extended operation without frequent refills.
- Remote Monitoring: Real-time access to generator status and performance.
- Oil-Water Separator: Improves fuel efficiency and extends engine lifespan.
- Output Switch: Convenient for controlling power distribution.
- Water Jacket Heater: Ensures smooth startup in cold environments.
- 3000-Hour Spare Parts Kit: Ensures timely replacements and uninterrupted operation.
Optional Engine Brands:
- Cummins, Perkins, Weichai, Deutz, SDEC, Yuchai, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine
Optional Generator Brands:
- Stamford, Leroy Somer, Meccalte, Marathon
Weichai Diesel Generator Types:
- Open-Frame, Soundproof, Containerized Soundproof, Trailer-Mounted Soundproof
FAQ
Q: What is the standby power rating of this Weichai generator set?
A: The standby power rating is 1100kW/1375kVA.
Q: Is this generator set suitable for industrial use?
A: Yes, it is designed for both industrial and marine applications, offering reliable and efficient power.
Q: Can I customize this generator set with optional features?
A: Yes, a range of optional features and configurations are available to meet your specific needs.
Backed by our annual production capacity of 5000 units and a comprehensive 18-month or 1500-hour warranty, our 1250kVA Weichai Diesel Generator Set is a reliable and powerful solution for your power needs.
