Silent Diesel Generator 75kVA Ricardo Engine Generator With 8 Hours Running Fuel Tank
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Ricardo Engine Generator | Prime Power | 75kVA |
|---|---|---|---|
| Max Power | 83kVA | Frequency | 50Hz |
| Voltage | 240 / 415V | Noise Level (7m) | 72db(A) |
| Engine Model | R4105AZLD | Option | Integrated-Fuel-Tank |
| Highlight | 75kVA Silent diesel generator,Ricardo engine Silent diesel generator,75kVA diesel generator |
||
Product Description

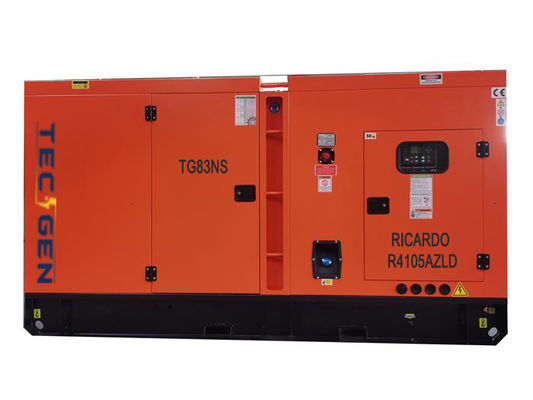

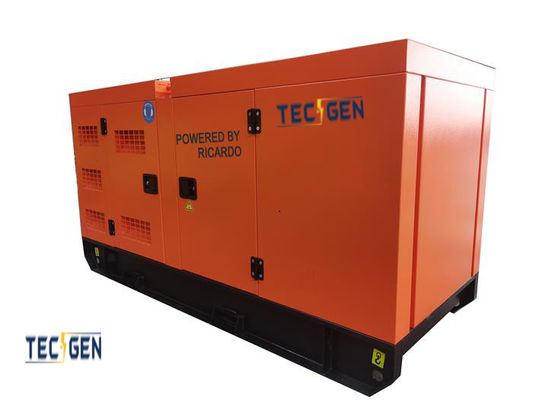

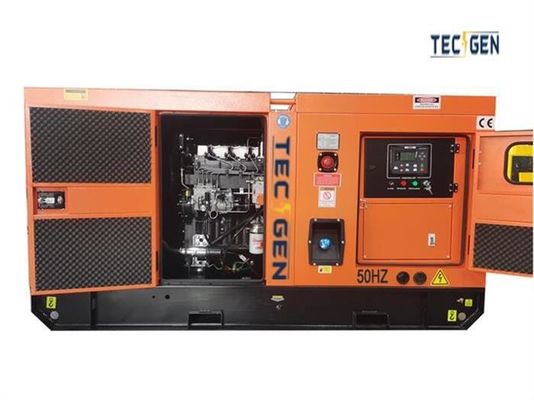

Silent diesel generator 75kVA Ricardo engine generator with 8 hours running fuel tank
Key Features of Diesel Generators for Reliable Power Supply:
Power & Efficiency
Choose a generator with the right power rating for your needs, ensuring high efficiency and fuel economy.
Durability
With heavy-duty components, diesel generators offer durability and reliability, especially in harsh environments.
Noise Level
Consider the noise level, especially for residential or noise-sensitive areas. Low-noise models or sound-reducing enclosures can help.
Maintenance
Choose a brand with easy access to spare parts and a reliable service network for smooth maintenance and timely repairs.
75kVA Ricardo Engine Generator Specifications:
| Technical Parameter for 75kVA Ricardo Engine Generator | Genset Model | TG83NS |
| Prime Power | 60kW/75kVA | |
| Standby Power | 66kW/83kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 240/415V | |
| Power Factor | 0.8 | |
| Governor | Electric | |
| Noise level (7m) | 72db(A) | |
| Engine Brand | Ricardo | |
| Engine Model | R4105AZLD | |
| Alternator Brand | Copy Stamford | |
| Alternator Brand | TGI224S60 | |
| Dimension | Open: L1900 x W900 x H1250mm | |
| Silent: L2700 x W1100 x H1550 | ||
| Fuel Tank Capacity | 150L |
Ricardo Engine Datasheets:
| Engine General Data | Engine Brand | Ricardo |
| Engine Model | R4105AZLD | |
| Rated Output | 66kW | |
| Rated Speed | 1500rpm | |
| Number of Cylinders | 4 | |
| Cylinder arrangement | In-line | |
| Displacement (L) | 4.5 | |
| Aspiration | Turbocharged & Intercooled | |
| Bore×Stroke (mm×mm) | 105x130 | |
| Compression Ratio | 16:1 | |
| Cooling | Forced Water Cooled | |
| Fuel Consumption at 100% load(L/H) | 16.5 |
AC Alternator Datasheets:
| Alternator Data | Model | TGI224S60 |
| Brand | Copy Stamford | |
| Rate Output | 60kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator |
Controller System & Options:
|
Control System |
Brand | Tecgen |
| Model | 6120U | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Circuit breaker | Delixi Brand 160A Breaker | |
| Auto Transfer Switch | 160A ATS | |
| Genset Options | Output Socket | |
| Integrated Fuel Tank for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Product Description:
Introducing the 75kVA Ricardo Engine Diesel Generator Set, a powerful and efficient solution for your power needs. With a prime power rating of 60kW/75kVA and a standby power rating of 66kW/83kVA, it's designed to handle various loads with ease.
Key Features
- Silent Operation: Engineered for minimal noise output, making it suitable for noise-sensitive environments.
- Reliable Engine: Powered by the robust R4105AZLD engine, ensuring smooth and consistent performance.
- High-Quality Generator: Equipped with the TGI224S60 generator from a renowned Chinese motor brand, delivering dependable power output.
Options:
- ATS (Automatic Transfer Switch): For seamless power transition, ensuring uninterrupted power supply.
- Built-In Fuel Tank: Convenient storage for extended operation without frequent refills.
- Oil-Water Separator: Improving fuel efficiency and extending engine lifespan.
With its combination of power, reliability, and optional extras, the 75kVA Weifang Ricardo Silent Diesel Engine Generator Set is the perfect choice for your power backup and industrial needs. Order yours today!
