Marine Diesel Generator 150kW Weichai Marine Diesel Generator With Sea water Heater Exchanger
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / CCS / Emission Certificate |
| Model Number | TG206WCM |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 20 Days |
| Payment Terms | T/T, L/C, D/A, D/P |
| Supply Ability | 100 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Marine Diesel Generator | Usage | Marine Use |
|---|---|---|---|
| Frequency | 50Hz | Prime Genset Output | 150kW / 188kVA |
| Standby Genset Output | 165kW / 206kVA | Engine | Weichai P10CD200E200 |
| Cooling System | Sea-water Heater Exchanger | Certificate | CCS |
| Highlight | 150kW marine diesel generator,188kVA marine diesel generator,Weichai marine diesel generator |
||
Product Description

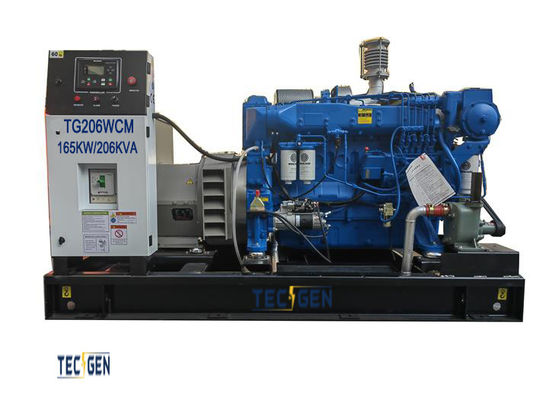

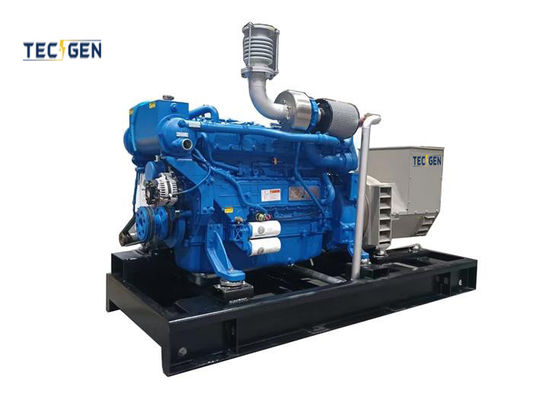

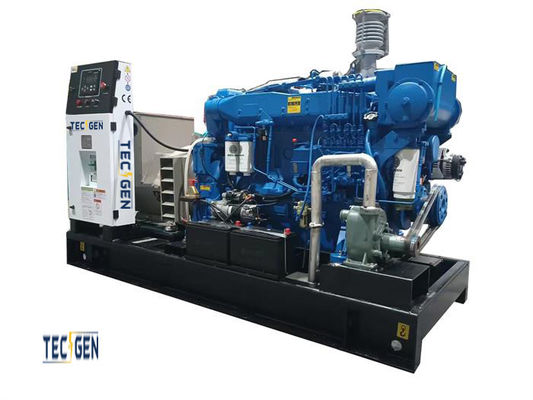

Marine diesel generator 150kW Weichai marine diesel generator with Sea-water Heater Exchanger
Product Description for 150kW Weichai Marine Diesel Generator Set
Standard Features:
- Power output: 150kW/188kVA (Prime) & 165kW/206kVA (Standby)
- Voltage: 240/415V, Three-phase, 50Hz
- Engine: P10CD200E200, 6-cylinder, 4-stroke turbocharged
- Generator: TGI274S150M
- Controller: DEIF SGC-420, electronic speed control
- Seawater heat exchanger
- 24V maintenance-free lead-acid battery with battery rack
- 8-hour fuel tank
- Circuit breaker & industrial muffler
- Forklift slots for easy transportation
Key Features:
- High efficiency and reliability for marine applications
- Quiet operation with advanced sound reduction technology
- Easy maintenance with electronic monitoring and control
- Durable construction for long-term use in harsh marine environments
150kW Weichai Marine Diesel Generator Specifications:
| Technical Parameter for Marine Diesel Generator | Genset Model | TG206WCM |
| Prime Power | 150kW/188kVA | |
| Standby Power | 165kW/206kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 240/415V | |
| Power Factor | 0.8 | |
| Governor | Electric | |
| Noise level (7m) | 90db(A) | |
| Engine Brand | Weichai Marine | |
| Engine Model | P10CD200E200 | |
| Alternator Brand | Tecgen | |
| Alternator Brand | TGI274S150M | |
| Dimension | Open: L2400 x W950 x H1200mm | |
| Silent: L3000 x W1200 x H1600 | ||
| Fuel Tank Capacity | 190L | |
| Marine Engine General Data | Engine Brand | Weichai Marine |
| Engine Model | P10CD200E200 | |
| Rated Output | 182kW | |
| Rated Speed | 1500rpm | |
| Number of Cylinders | 6 | |
| Cylinder arrangement | In-line | |
| Displacement (L) | 4.76 | |
| Aspiration | Turbocharged & CAC | |
| Bore×Stroke (mm×mm) | 108x130 | |
| Compression Ratio | 19:1 | |
| Cooling | Sea-water heater Exchanger | |
| Fuel Consumption at 100% load(L/H) | 19 | |
| Alternator Data | Model | Tecgen |
| Brand | TGI274S150M | |
| Rate Output | 150kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single & Double | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | DEIF |
| Model | SGC-420 | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS & RS485 Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Sea-water Exchanger | |
| Circuit breaker | Delixi Brand 300A Breaker | |
| Auto Transfer Switch | 300A Built-in ATS | |
| Genset Options | Output Socket | |
| Silent Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Usage:
Ideal for marine vessels, boats, and offshore facilities that require reliable and efficient power generation. Suitable for both prime and standby power needs.
Options:
- ATS cabinet for automatic transfer switching
- Outdoor silent package for reduced noise emissions
- Extended fuel tank for longer operation without refueling
- Remote monitoring system for real-time status updates
- Oil-water separator for environmental compliance
- Output switch for convenient power distribution
- 3000-hour spare parts package for peace of mind maintenance
FAQ:
- Q: What is the warranty period for this generator set?
A: The warranty period is 18 months or 1500 hours, whichever comes first. - Q: Can I choose a different engine brand?
A: Yes, we offer optional engine brands such as SDEC, Yangchai, Yuchai, and Weifang Ricardo Cummins. - Q: How about the production capacity of your factory?
A: Our factory has an annual production capacity of 5000 generator sets, ensuring timely delivery and scalability. - Q: What are the available enclosure types?
A: You can choose from open frame, silent, containerized silent, and trailer-mounted silent enclosures.
