94KVA Weichai Power 75KW Diesel Generator For Standby Output 50Hz 103KVA
| Place of Origin | China |
|---|---|
| Brand Name | Weichai Power |
| Certification | CE/SONCAP/FCC/SGS |
| Model Number | TG103WP |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiation |
| Packaging Details | Plywood case Package or Plastic film package in container |
| Delivery Time | 15-20 working days after received deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 Units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open Type Or Silent Type | Cooling System | Water Cooled |
|---|---|---|---|
| Durability | High | Noise Level | Low |
| Starting System | Electric | Color | Optional |
| Highlight | 50Hz Weichai Power Diesel Generator,Standby Output Weichai Power Diesel Generator,75KW Weichai Power Diesel Generator |
||
Product Description

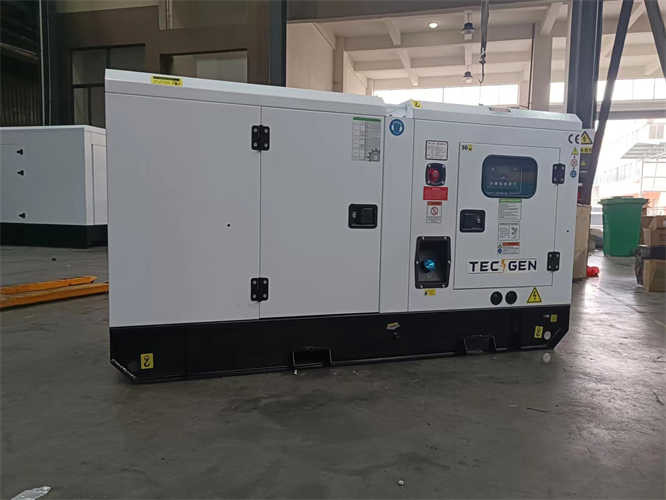

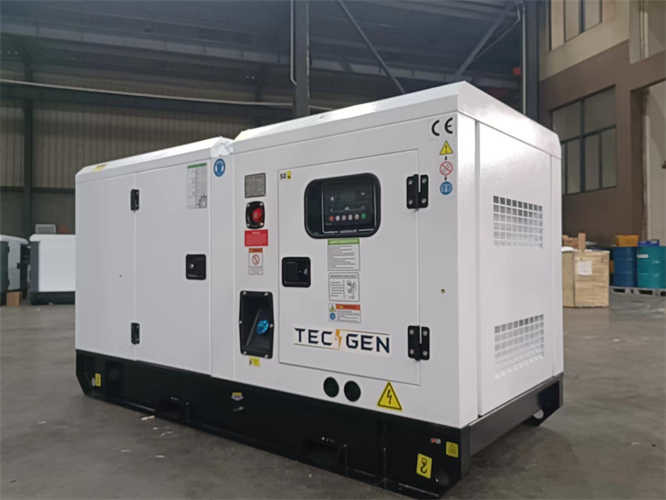

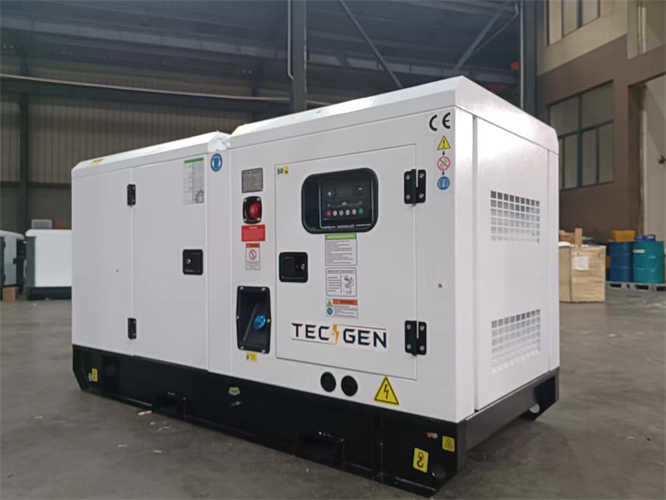

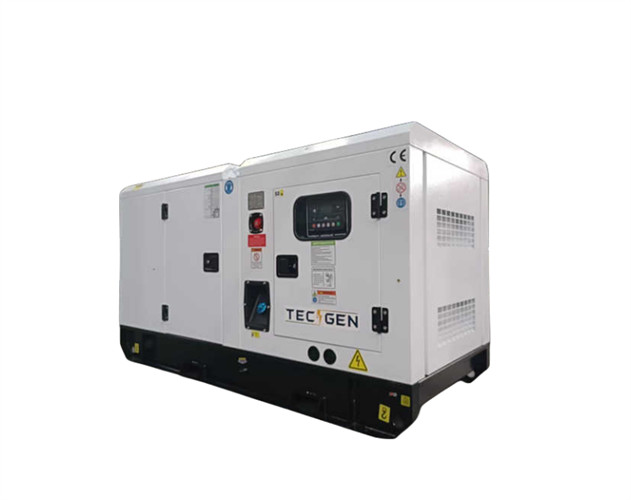

94KVA Weichai Power 75KW Diesel Generator For Standby Output 50Hz 103KVA
Products: 94kVA/75kW Weichai Diesel Generator Set
Standby Output: 103kVA/83kW
Prime Output: 94kVA/75kW
Supply Scope: Diesel engine, Alternator, Automatic start / stop control panel, Dry type air fillter, fuel filter, oil filter, 4V D.C automatic battery charger, Max. 50 degree celsius radiator, Batteries, rack and cable, Ripple flex exhaust pipe, flange and muffler, Circuit breaker, Base Fuel tank, Complete users' manual.
Testing: Tecgen Power provides a full line of brand new and high quality products. Every unit is strictly factory tested.
Services Parts: Service and parts are avaiable from Tecgen Power or distributors in your location.
Engine
· Heavy duty diesel engine
· Four stroke, water cooled
· 12V and 24V stater and charge alternator
· Cooling radiator and fan
· Maintenance free battery including ract and cable
· Flexible fuel connection hoses and manual oil sump drain valve
· Exhaust silencer
Alternator
· Brushless, single bearing, flexible disc
· Insulation class: H
· Protection class: IP23
· Self-exciting and Self-regulation
Canopy
· All canopy designed with modular principles
· All metal canopy parts painted by electrostatic polyester power paint
· Soundproof design ensure that the noise level be controlled in small scope
· Convenient to lift and move
· Easy to maintenance and operate
Base Frame
· Base frame including position for forklift and crane
· Integral fuel tank
· Daily fuel tank continuously supply for 8-24 hours
· Fuel tank easy to maintain and clean
· Anti-vibration pads are flexed between engine and alternator.
Control System
Control, monitor and protect the Generator Set including:
· High water temperature
· Low oil pressure
· Over and under speed
· Over current
· Under/Over generator voltage
· Start and stop failure
· Low and high battery voltage
· Charge fail
· Emergency stop
Specifications:
| Technical Parameter for Diesel Generator | Genset Model | TG103WP |
| Prime Power | 94kVA/75kW | |
| Standby Power | 103kVA/83kW | |
| Frequency | 50Hz | |
| Rated Voltage | 400V | |
| Power Factor | 0.8 | |
| Engine Brand | Weichai | |
| Engine Model | WP4.1D100E200 | |
| Alternator Brand | Tecgen | |
| Alternator Model | TGI274S-75 | |
| Engine General Data | Engine Power(kW) | 90 |
| Cyl / Arrangement | 4L | |
| Air Intake way | Turbo | |
| Bore×Stroke (mm×mm) | 105x118 | |
| Speed Governor | Electrical | |
| Fuel Consumption (g/kw.h)) | 201 | |
| Alternator Data | Model | TGI274S-75 |
| Brand | Tecgen | |
| Rate Output | 94kVA/75kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Control System | Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brand | Deepsea, Deif, ComAp | |
| Starting Voltage | 24V | |
Tecgen Power Generator Feature:
1, Output range: 5kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, Chint circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Large fuel tank ensure continuous running.
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date
