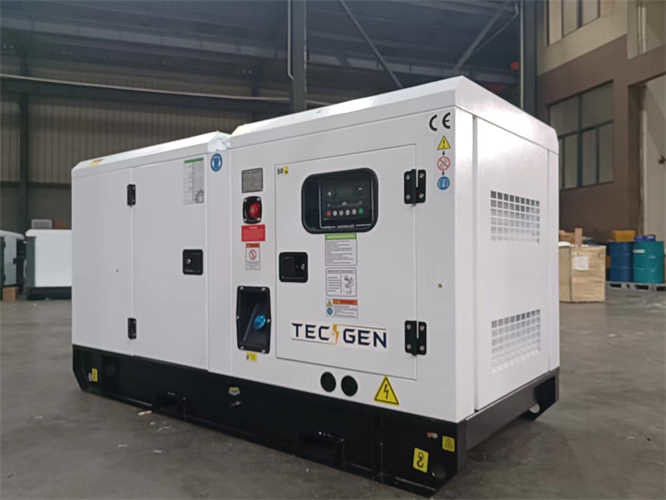

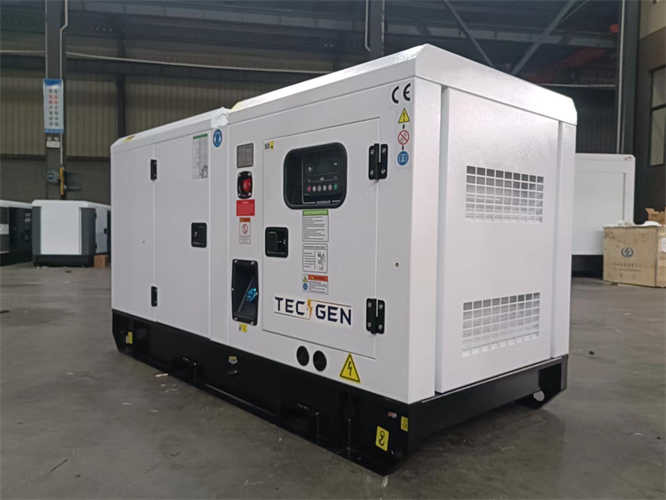

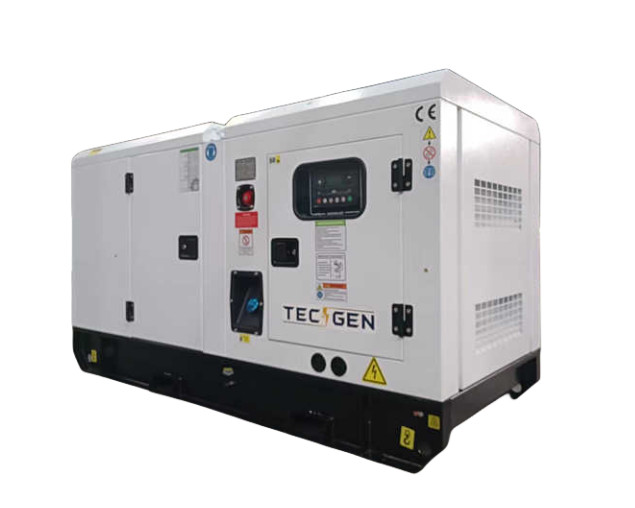

100KVA 80KW Diesel Generator Set Powered By Weichai Engine WP4D100E200
| Place of Origin | China |
|---|---|
| Brand Name | Tecgen Weichai Genset |
| Certification | ISO / CE / SASO / CIQ |
| Model Number | TG110WP |
| Minimum Order Quantity | 1 SET |
| Price | Negotiation |
| Packaging Details | Plywood case / Foam and PE film package |
| Delivery Time | 15 Working Days |
| Payment Terms | T/T / L/C |
| Supply Ability | 300 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine Brand | Weichai | Alternator Brand | Stamford / Leroy Somer / Tecgen |
|---|---|---|---|
| Genset Type | Open / Silent Type | Frequency | 50Hz/60Hz |
| Power Output | 100kVA/80kW | Voltage | 380V, 400V, 415V And Other Voltage Is Optional |
| Options | Auto Transfer Switch(ATS) | Warranty | 18 Months |
| Highlight | 80KW Diesel Generator Set,100KVA Diesel Generator Set,WP4D100E200 Diesel Generator Set |
||
Product Description
100KVA 80KW Diesel Generator Set Powered By Weichai Engine WP4D100E200
Standby Output: 110kVA/88kW
Prime Output: 100kVA/80kW
Supply Scope: Diesel engine, Alternator, Automatic start / stop control panel, Dry type air fillter, fuel filter, oil filter, 4V D.C automatic battery charger, Max. 50 degree celsius radiator, Batteries, rack and cable, Ripple flex exhaust pipe, flange and muffler, Circuit breaker, Base Fuel tank, Complete users' manual.
Testing: Tecgen Power provides a full line of brand new and high quality products. Every unit is strictly factory tested.
Services Parts: Service and parts are avaiable from Tecgen Power or distributors in your location.
Technical Parameters:
| Technical Parameter for Diesel Generator | Genset Model | TG110WP |
| Prime Power | 100kVA/80kW | |
| Standby Power | 110kVA/88kW | |
| Frequency | 50Hz | |
| Rated Voltage | 400V | |
| Power Factor | 0.8 | |
| Engine Brand | Weichai | |
| Engine Model | WP4D100E200 | |
| Alternator Brand | Tecgen | |
| Alternator Model | TGI274S-80 | |
| Engine General Data | Engine Power(kW) | 90 |
| Cyl / Arrangement | 4L | |
| Air Intake way | Turbo | |
| Bore×Stroke (mm×mm) | 105x130 | |
| Speed Governor | Electrical | |
| Fuel Consumption (g/kw.h)) | 203 | |
| Alternator Data | Model | TGI274S-80 |
| Brand | Tecgen | |
| Rate Output | 100kVA/80kW | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Protection Grade | IP 23 | |
| Control System | Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| Alarm | ||
| Optional brand | Deepsea, Deif, ComAp | |
| Starting Voltage | 24V | |
.
Tecgen Power Generator Feature:
1, Output range: 5kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
Customization:
Weichai Diesel Generator Customization Service
Brand Name: Tecgen Weichai Genset
Model Number: TG110WP
Place of Origin: China
Certification: ISO / CE / SASO / CIQ
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood case / Foam and PE film package
Delivery Time: 15 Working Days
Payment Terms: T/T / L/C
Supply Ability: 300 Units Per Month
Warranty: 18 Months
Power Output: 100kVA/80kW
Options: Auto Transfer Switch(ATS)
Alternator Brand: Stamford / Leroy Somer / Tecgen
Choose Tecgen Weicahi Power Genset for your customized diesel generator needs. With our quality products and excellent service, we are committed to providing you with the best power solution.
