Ricardo Diesel Engine Generator 20kW Ricardo Diesel Genset Silent With 63A ATS Box
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SONCAP / SASO / COC / PVOC |
| Model Number | TG28RTS |
| Minimum Order Quantity | One Set |
| Price | 2350$ |

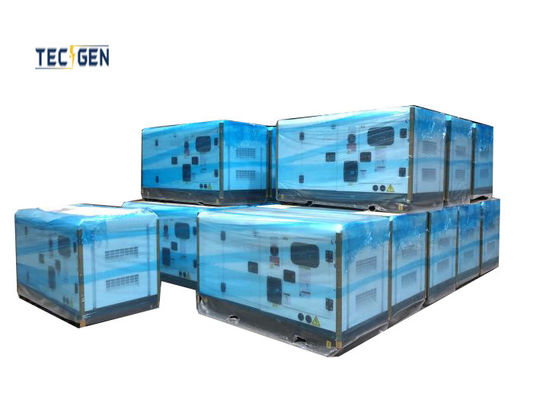

| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 20 Working Days |
| Payment Terms | T/T, L/C, D/A, D/P, DDU, DDP |
| Supply Ability | 250 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Ricardo Diesel Engine Generator | Type Of Unit | Silenced |
|---|---|---|---|
| Prime Power | 20kW | Max Power | 22kW |
| Engine Model | Ricardo ZH493D | Engine Output | 25kW Prime |
| Alternator Model | TGI184S20 | ATS | 63A Wall Mounted ATS Box (MTS) |
| Highlight | silent Ricardo diesel engine generator,63A Ricardo diesel engine generator,20kW Ricardo diesel engine generator |
||
Product Description

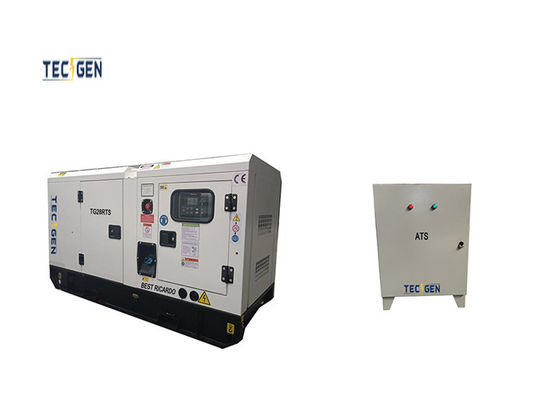

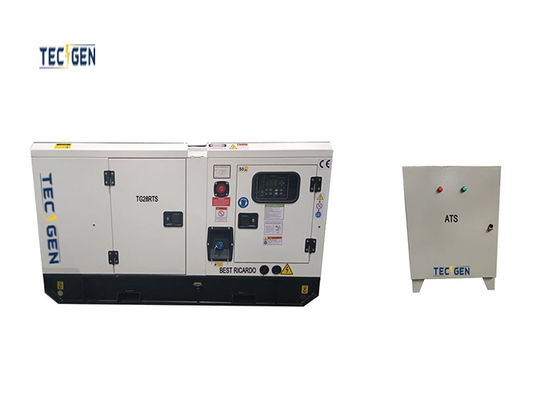

Ricardo diesel engine generator 20kW Ricardo diesel genset silent with 63A ATS Box
Product Description: 20kW Ricardo Diesel Engine Generator - Reliable Power Solution
Standard Features:
• Power Output: 20kW/25kVA (Prime) & 22kW/28kVA (Standby)
• Three-phase, 4-wire, 50Hz
• Engine Speed: 1500rpm
• Voltage: 240/415V
• Engine Model: ZH493D, 4-cylinder, 4-stroke, naturally aspirated
• Generator Model: TGI184S20
• Controller: Mebay DC52D
• Mechanical or Electronic Speed Control
• 63A Wall-mounted MTS Box
• 24V Maintenance-free Lead-acid Battery with Battery Rack
• 8-hour Fuel Tank
• Delixi Circuit Breaker
• Industrial Grade Muffler
• Forklift Access Holes
Key Features:
Experience high efficiency and reliable performance with the 20kW Ricardo Diesel Engine Generator. Its key features include:
• Low Noise & Vibration Levels: Enjoy a quiet and smooth operation, minimizing disturbances.
• Easy Maintenance & Long Service Life: Designed for hassle-free maintenance and extended durability.
• Compact Design for Easy Transportation: The generator's compact size allows for convenient transportation and installation.
• Versatile Applications: Ideal for residential, commercial, and industrial settings, providing reliable power during outages or as a backup source.
20kW Ricardo Diesel Genset Technical Parameters:
| Ricardo Diesel Engine Generator Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG28RTS | ZH493D | TGI184S20 | Mebay DC52D | 20kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port or any ports in China (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Ricardo Diesel Genset | |||||
| Engine Model | ZH493D Weifang Ricardo | ||||
| Alternator Mode | TGI184S20 Copy Stamford | ||||
| Rated Output | 25kVA / 20kW | ||||
| Standby Output | 28kVA / 22kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 240 / 415V | ||||
| Rated Current | 34.8A | ||||
| Breaker | 63A Aisikai Breaker | ||||
| ATS | 63A Built-in ATS or Wall-mounted Box | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 75dB(A) | ||||
| Net Weight | 750KGS | ||||
| Genset size | L2100 * W950 * H1100mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Ricardo Diesel Genset | |||||
| Manufacture | Weifang Ricardo | ||||
| Model | ZH493D | ||||
| Rated Output/Speed | 25KW/1500RPM | ||||
| Standby Output/Speed | 28KW/1500RPM | ||||
| Aspiration | Natural ASP | ||||
| Speed Governor | MECH OR Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 93*100mm | ||||
| Displacement | 2.72 L | ||||
| Compression ratio | 18:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 5.95 L / h | ||||
| Fuel Consumption/standby output | 6.5 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Ricardo Diesel Genset | |||||
| Alternator Model | TGI184S20 | ||||
| Manufacture | Copy Stamford | ||||
| Rate Output | 20kW | ||||
| Rated voltage(V) | 240 / 415V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Ricardo Diesel Genset | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | MEBAY DC52D | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 Celsius degree radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage:
This generator is perfectly suited for powering homes, offices, workshops, and other facilities during power outages or as a reliable backup power source.
Options:
Customize your generator with the following options to meet your specific requirements:
• Built-in ATS: Automatic Transfer Switch for seamless power transfer during outages.
• Outdoor Soundproof Enclosure: Reduce noise levels and protect the generator from environmental elements.
• Extended Fuel Tank: Increase the fuel capacity for extended runtime.
• Remote Monitoring System: Allows remote monitoring and control of the generator's performance.
• Oil-Water Separator: Enhances the generator's efficiency by separating oil and water.
• Jacket Water Heater: Facilitates quick engine startups in cold environments.
• Output Switch: Conveniently control the power output of the generator.
• 3000-hour Replacement Parts Package: Includes spare parts for extended maintenance.
• Extended Warranty Periods: Extend the standard warranty period for added peace of mind.
Engine Brands:
Choose from a variety of reputable engine brands, including SDEC, Yangchai, Yuchai, FAWDE, Quanchai, Perkins, Deutz Cummins, and more.
Generator Brands:
Select from renowned generator brands such as Stamford, Leroy Somer, Meccalte, and Marathon.
Chassis Types:
Tailor your generator configuration with the following chassis types:
• Open Frame
• Soundproof
• Ultra-Soundproof
• Trailer-Mounted Soundproof
Advantage:
Discover the advantages of the 20kW Ricardo Diesel Engine Generator:
• Factory Capacity: Benefit from our annual production capacity of 5000 units, ensuring fast delivery.
• Customizable Configurations: Configure the generator according to your specific needs and preferences.
• Competitive Pricing & Fast Delivery: Enjoy competitive pricing and prompt delivery to meet your project timelines.
• Comprehensive Warranty & After-sales Service: Standard warranty of 18 months or 1500 hours, with extended warranty options available.
FAQ:
Q: What is the fuel consumption of this generator?
A: Fuel consumption depends on the load and operating conditions. Please consult our technical team for specific details.
Q: Can I add an ATS system to the generator?
A: Yes, the ATS system is an optional feature that can be added to the generator.
Q: How long does the warranty period last?
A: The standard warranty period is 18 months or 1500 hours, but extended warranty options are also available.
Q: Can I choose a different engine or generator brand?
A: Yes, we offer a range of engine and generator brands to suit your preferences and requirements.
