50Hz Diesel Generator 45kVA Baudouin Diesel Generator With CE Certificate
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG50WBS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 20 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 250 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Soundproof | Engine Brand | Baudouin |
|---|---|---|---|
| Engine Model | 4M06G50/5 | Alternator Brand | Stamford |
| Alternator Model | S1L2-R1 | Prime Genset Power | 36kW / 45kVA |
| Engine Power | 44kW Prime At 1500rpm | Frequency | 50Hz |
| Highlight | 50Hz diesel generator,Baudouin 50Hz diesel generator,45kVA 50Hz diesel generator |
||
Product Description

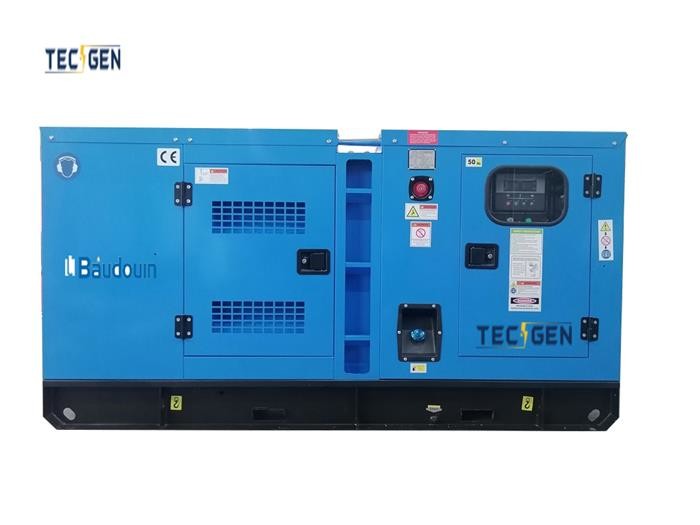

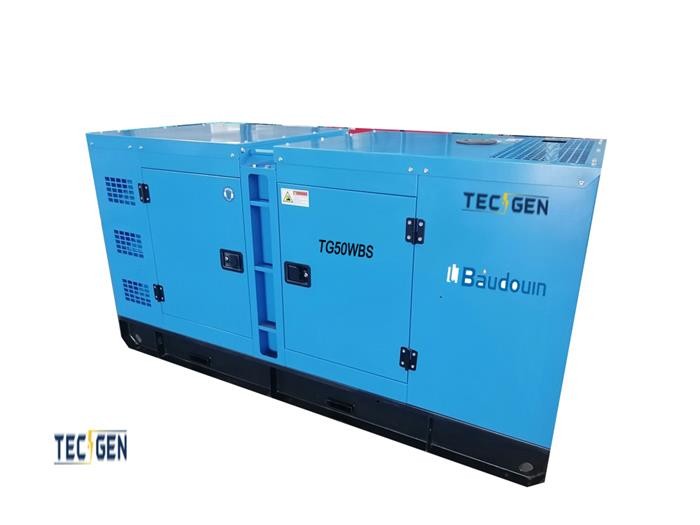

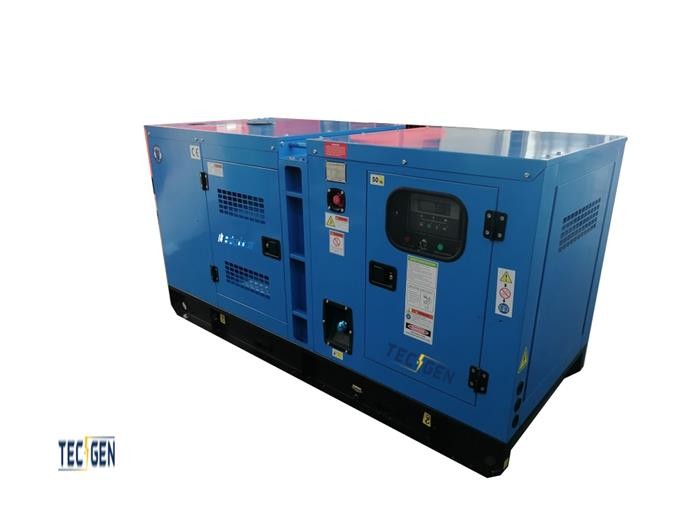

50Hz Diesel generator 45kVA Baudouin diesel generator with CE certificate
Product Description for Baudouin Diesel Generator Set
Introducing our Silent Baudouin Diesel Generator, a state-of-the-art solution for reliable and sustainable power supply. Powered by the robust Baudouin 4M06G50/5 diesel engine, this generator delivers an impressive 36kW/45kVA of prime power and a maximum output of 40kW/50kVA.
Standard Features:
- Soundproof design for ultra-quiet operation
- 4-cylinder, 4-stroke turbocharged and intercooled engine
- Stamford S1L2-R1 brushless alternator for efficient power generation
- DEIF SGC-420 multifunction controller for precise control
- 24V maintenance-free lead-acid battery
- 8-hour integrated fuel tank for extended operation
Key Features:
- Baudouin Diesel Engine for powerful and efficient performance
- Industrial-grade muffler for reduced noise levels
- Forklift pockets for easy transportation
- Corrosion-resistant design suitable for coastal or damp environments
Usage:
Ideal as a backup power source for various applications, our Silent Power Generator ensures uninterrupted power supply in critical situations. Whether it's powering essential equipment in hospitals, data centers, or industrial facilities, this generator delivers reliable and silent power when needed.
45kVA Baudouin Diesiel Generator Specifications:
| 45kW Baudouin Diesel Generator Technical Datasheets | ||||||
| Genset model | TG50WBS | |||||
| Genset Type | Silent | |||||
| Rate Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
| Frequency | 50Hz | |||||
| Speed | 1500rpm | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 65.0A | |||||
| Prime Power | 36kW / 45kVA | |||||
| Standby Power | 40kW / 50kVA | |||||
| Engine | Brand | Weichai Baudouin | ||||
| Model | 4M06G50/5 | |||||
| Alternator | Brand | Stamford | ||||
| Model | S1L2-R1 | |||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Genset Weight | 950kgs | |||||
| Genset Dimensions | L2480 * W 1000 * 1400 | |||||
| Baudouin Diesel Engine Data | ||||||
| Brand | Baudouin | |||||
| Engine Model | 4M06G50/5 | |||||
| Number of Cylinders | 4 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Turbocharged & Aftercooled | |||||
| Displacement | 2.3L | |||||
| Compression ratio | 17.5:1 | |||||
| Bore×Stroke | 89*92mm | |||||
| Speed | 1500rpm | |||||
| Prime Power | 44kW | |||||
| Standby Power | 48kW | |||||
| Speed Governor | MECH or Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 225g/kwh@1500rpm | |||||
| Stamford Alternator Data | ||||||
| Brand | Stamford | |||||
| Model | S1L2-R1 | |||||
| Frequency/speed | 50HZ/1500RPM | |||||
| Rate Output | 45.8kVA | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| DEIF Controller System | ||||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Function | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
| 16kW ~ 600kW | Deutz | Marathon | DEIF | |||
| 7kW ~ 64kW | Yangdong |
Tecgen
|
||||
| 7kW ~ 76kW | Quanchai | |||||
| 18kW ~ 3000kW | Weichai | |||||
| 8kW ~ 800kW | SDEC | |||||
| 12kW ~ 320kW | FAWDE | |||||
| 18kW ~ 1200kW | Yuchai | |||||
| 11kW ~ 104kW | Beinei Aircooled | |||||
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Options:
- ATS (Automatic Transfer Switch) for seamless power transfer
- Extended fuel tank for longer operation
- Remote monitoring and start-up capabilities
- Oil-water separator and water jacket heater for enhanced engine protection
Advantages of Baudouin Genset:
- Wide range of voltage options to meet different power needs
- High-quality components for long-lasting performance
- Customizable with various engine and alternator brands
- Comprehensive 18-month or 1500-hour after-sales service
FAQ:
- Q: How long can the generator run on a full tank?
A: The generator can run for up to 8 hours on a full tank. - Q: Is the generator easy to transport?
A: Yes, the generator is equipped with forklift pockets for convenient transportation. - Q: Can the generator be customized with specific engine and alternator brands?
A: Yes, we offer a range of optional engine and alternator brands to choose from.
