35kVA Baudouin Power Generator 28kW Diesel Engine Generator For Continuous Operation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Baudouin Power Generator | Frequency | 50Hz |
|---|---|---|---|
| Voltage | 440V//415V/400V/380V/230V/220V/110V | Engine Brand | Baudouin |
| Engine Model | 4M06G35/5 | Alternator Model | Stamford S1L2-J1 32kVA |
| Max Output Of Genset | 35kVA | Engine Origin | China |
| Highlight | continuous operation Baudouin power generator,diesel engine Baudouin power generator,35kVA Baudouin power generator |
||
Product Description
35kVA Baudouin power generator 28kW diesel engine generator for continuous operation

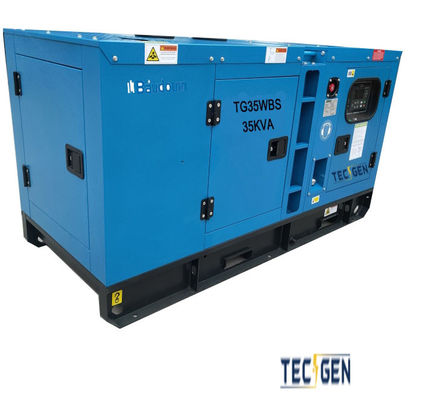

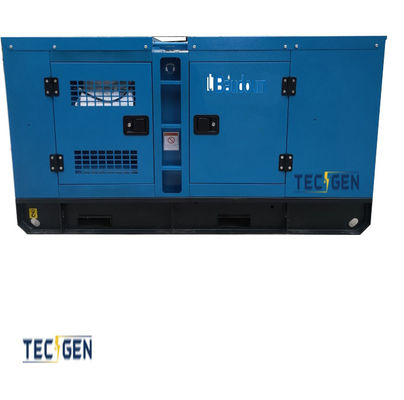

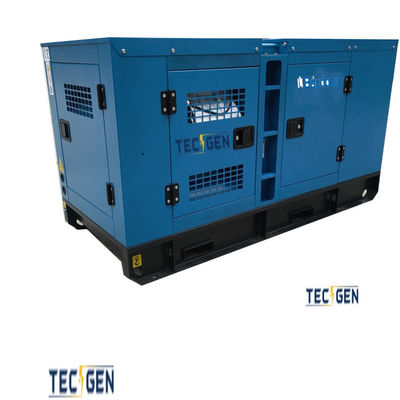

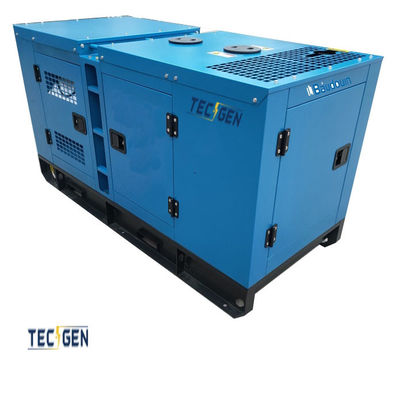

Standby Baudouin Diesel Power Generator - TG35WBS Silent Model
Overview:
Introducing 35kVA Baudouin Generator, model TG35WBS, a silent-type generator designed for reliable backup power. With its robust construction and advanced features, it's the perfect solution for critical power needs.
Technical Specifications:
- Engine: Baudouin 4M06G35/5, 4-cylinder turbocharged & intercooled.
- Alternator: Stamford S1L2-J1, brushless, self-excited with AVR.
- Controller: DEIF SGC-420 for precise power management.
- Output: 26kW / 32kVA prime power, 28kW / 35kVA standby power.
- Voltage Options: 440V, 415V, 400V, 380V, 230V, 220V, 110V.
- Dimensions & Weight: L2200 x W1000 x H1400, 830kgs.
Key Features:
- Ultra-silent design for discreet operation.
- Multi-voltage output options for versatility.
- Forced water cooling cycle for efficient engine cooling.
- MECH or electrical speed governor for precise control.
- IP23 protection grade for added safety.
35kVA Standby Baudouin Power Generator Parameters:
| 35kVA Standby Baudouin Power Generator Technical Datasheets | ||||||
| Genset model | TG35WBS | |||||
| Genset Type | Silent | |||||
| Rate Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
| Frequency | 50Hz | |||||
| Speed | 1500rpm | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 45.2A | |||||
| Prime Power | 26kW / 32kVA | |||||
| Standby Power | 28kW / 35kVA | |||||
| Engine | Brand | Weichai Baudouin | ||||
| Model | 4M06G35/5 | |||||
| Alternator | Brand | Stamford | ||||
| Model | S1L2-J1 | |||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Genset Weight | 830kgs | |||||
| Genset Dimensions | L2200 * W 1000 * 1400 | |||||
| Baudouin Diesel Engine Data | ||||||
| Brand | Baudouin | |||||
| Engine Model | 4M06G35/5 | |||||
| Number of Cylinders | 4 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Turbocharged & Intercooled | |||||
| Displacement | 2.3L | |||||
| Compression ratio | 17.5:1 | |||||
| Bore×Stroke | 89*92mm | |||||
| Speed | 1500rpm | |||||
| Prime Power | 30kW | |||||
| Standby Power | 33kW | |||||
| Speed Governor | MECH or Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 225g/kwh@1500rpm | |||||
| Stamford Alternator Data | ||||||
| Brand | Stamford | |||||
| Model | S1L2-J1 | |||||
| Frequency/speed | 50HZ/1500RPM | |||||
| Rate Output | 32kVA | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| DEIF Controller System | ||||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Function | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
| 16kW ~ 600kW | Deutz | Marathon | DEIF | |||
| 7kW ~ 64kW | Yangdong |
Tecgen
|
||||
| 7kW ~ 76kW | Quanchai | |||||
| 18kW ~ 3000kW | Weichai | |||||
| 8kW ~ 800kW | SDEC | |||||
| 12kW ~ 320kW | FAWDE | |||||
| 18kW ~ 1200kW | Yuchai | |||||
| 11kW ~ 104kW | Beinei Aircooled | |||||
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Applications:
Ideal for hospitals, data centers, factories, and other facilities that require a dependable and silent backup power source.
Why Choose Us?
- Reliable Baudouin diesel engine for long-lasting performance.
- Stamford alternator for stable and efficient power output.
- DEIF controller for intelligent power management.
- Customizable options to meet your specific requirements.
Contact Us:
For more information or to place an order, contact us today. We offer competitive pricing and exceptional customer service. Don't let power outages interrupt your operations - invest in a Baudouin Diesel Power Generator for peace of mind.
