40kVA Baudouin Diesel Generator Set 50Hz Diesel Electric Power Generator For Home Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | 40kVA Baudouin Diesel Generator Set | Type | Soundproof |
|---|---|---|---|
| Frequency | 50Hz | Engine Brand | Weichai Baudouin |
| Engine Model | 4M06G44/5 | Alternator Model | Stamford S1L2-N1 |
| Controller | DEIF SGC-420 | Option | Super Silent / Waterproof Canopy, ATS, Parallel System |
| Highlight | home use diesel generator set,40kVA home use diesel generator,50Hz diesel generator set |
||
Product Description

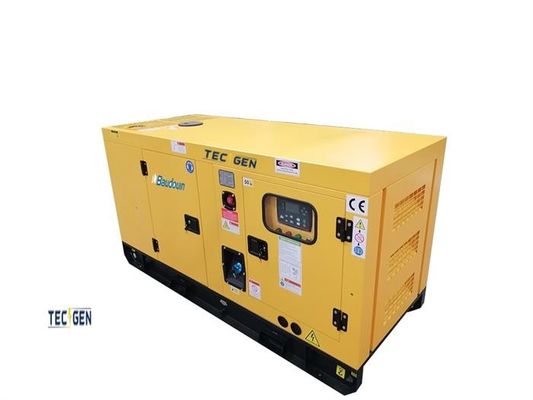

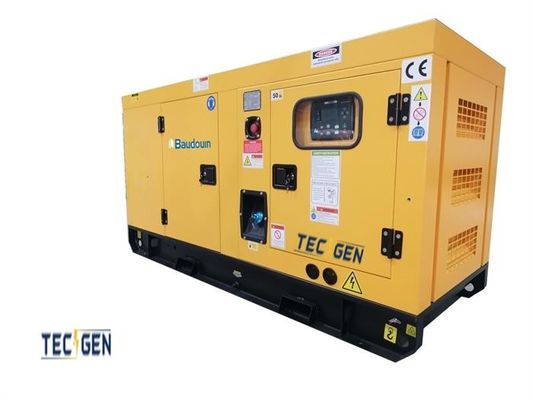

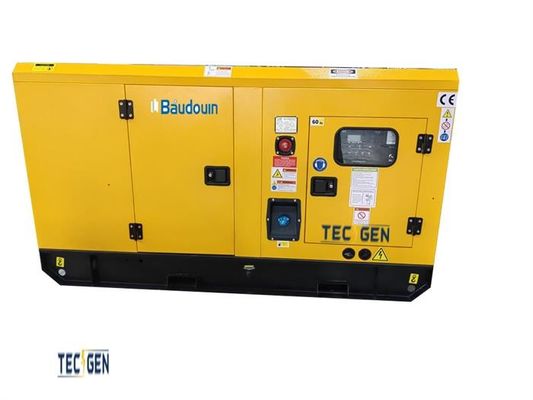

40kVA Baudouin diesel generator set 50Hz diesel electric power generator for home use
Product Description for 40kVA Baudouin Diesel Generator Set
Introducing our Standby Baudouin Generator, a reliable standby power solution designed for continuous and silent operation. Featuring a Baudouin 4M06G44/5 diesel engine and Stamford S1L2-N1 alternator, it ensures a stable power supply for critical applications.
Standard Features:
- Ultra-silent design for discrete operation
- 4-cylinder turbocharged and intercooled engine
- 240/415V output with multiple voltage options
- DEIF SGC-420 controller for precise management
- 24V maintenance-free battery
- 8-hour integrated fuel tank
Key Features:
- Weichai Baudouin Diesel Engine for dependable performance
- 50Hz, 1500rpm operation for smooth power delivery
- Industrial-grade muffler for reduced noise
- Forklift pockets for easy transportation
Usage:
Ideal for hospitals, data centers, and other facilities that require a reliable backup power source. Ensures uninterrupted operation of critical equipment during power outages.
40kVA Baudouin Diesel Generator Set Datasheets:
| 40kVA Baudouin Diesel Generator Set Technical Datasheets | ||||||
| Genset model | TG44WBS | |||||
| Genset Type | Silent | |||||
| Rate Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
| Frequency | 50Hz | |||||
| Speed | 1500rpm | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 55.6A | |||||
| Prime Power | 32kW / 40kVA | |||||
| Standby Power | 35kW / 44kVA | |||||
| Engine | Brand | Weichai Baudouin | ||||
| Model | 4M06G44/5 | |||||
| Alternator | Brand | Stamford | ||||
| Model | S1L2-N1 | |||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Genset Weight | 890kgs | |||||
| Genset Dimensions | L2200 * W 1000 * 1400 | |||||
| Baudouin Diesel Engine Data | ||||||
| Brand | Baudouin | |||||
| Engine Model | 4M06G44/5 | |||||
| Number of Cylinders | 4 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Turbocharged & Intercooled | |||||
| Displacement | 2.3L | |||||
| Compression ratio | 17.5:1 | |||||
| Bore×Stroke | 89*92mm | |||||
| Speed | 1500rpm | |||||
| Prime Power | 41kW | |||||
| Standby Power | 44kW | |||||
| Speed Governor | MECH or Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 225g/kwh@1500rpm | |||||
| Stamford Alternator Data | ||||||
| Brand | Stamford | |||||
| Model | S1L2-N1 | |||||
| Frequency/speed | 50HZ/1500RPM | |||||
| Rate Output | 41.2kVA | |||||
| No. of Phase | 3 Phase, 4 Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| DEIF Controller System | ||||||
| Controller | Brand | DEIF | ||||
| Model | SGC-420 | |||||
| Function | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Set Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
| 16kW ~ 600kW | Deutz | Marathon | DEIF | |||
| 7kW ~ 64kW | Yangdong |
Tecgen
|
||||
| 7kW ~ 76kW | Quanchai | |||||
| 18kW ~ 3000kW | Weichai | |||||
| 8kW ~ 800kW | SDEC | |||||
| 12kW ~ 320kW | FAWDE | |||||
| 18kW ~ 1200kW | Yuchai | |||||
| 11kW ~ 104kW | Beinei Aircooled | |||||
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Options:
- ATS (Automatic Transfer Switch) for automatic power switching
- Extended 24-hour fuel tank for longer runtime
- Remote monitoring and start-up capabilities
- Oil-water separator and water jacket heater for engine protection
Advantages:
- Corrosion-resistant design suitable for harsh environments
- Customizable with various engine and alternator brands
- Comprehensive after-sales service for peace of mind
FAQ:
- Q: What is the noise level of the generator?
A: The generator is designed for ultra-silent operation, ensuring minimal noise disturbance. - Q: Can the generator be customized with different voltage outputs?
A: Yes, we offer a range of voltage options to meet your specific requirements. - Q: How long does the generator run on a full tank?
A: The generator can run for up to 8 hours on a full tank, ensuring continuous power supply.
