AC Silent Single Phase Diesel Generator Baudouin Generator Set 16kW 20kVA
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Type | AC Single Phase | Genset Type | Silent Type |
|---|---|---|---|
| Frequency | 50Hz | Voltage | 240V/230V/220V/110V |
| Power Factor | PF 1 / PF 0.8 | Standby Output | 16kW |
| Engine Brand | Baudouin | Engine Model | 4M06G20/5 |
| Highlight | 20kVA Single phase diesel generator,16kW Single phase diesel generator,Baudouin Single phase diesel generator |
||
Product Description

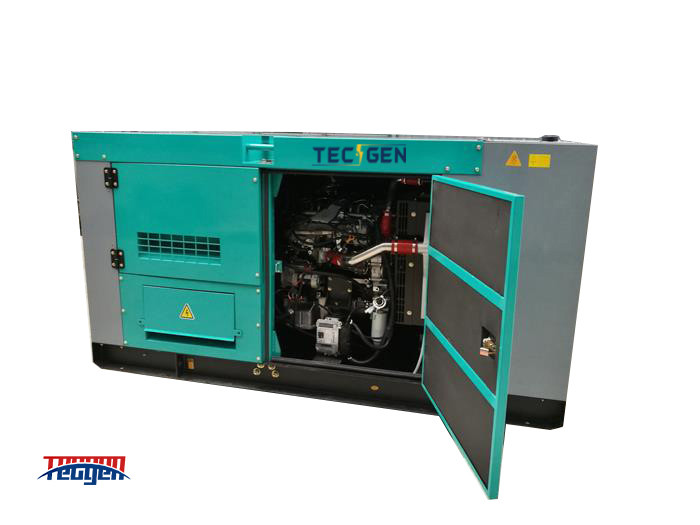

AC silent single phase diesel generator Baudouin generator set 16kW 20kVA
Product Description - Silent Single Phase Diesel Generator

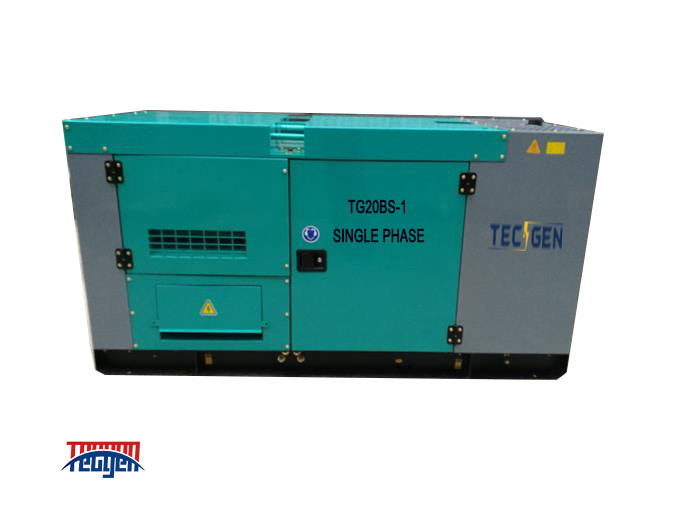

Introducing our premium TG20BS-1 silent single phase diesel generator, a powerful and reliable solution for your backup power needs. This generator is designed for silent operation, making it ideal for use in noise-sensitive environments.
Standard Features:
- High-efficiency Baudouin diesel engine with 4-stroke cycle and natural aspiration for optimal performance.
- Stamford alternator with single bearing, brushless, self-excited design and AVR for stable voltage output.
- Deepsea controller with auto mains failure function for seamless power transfer.
- Silent enclosure for reduced noise levels.
Key Features:
- Robust construction with a 760kg weight and compact dimensions for easy transportation and installation.
- Multiple power output options, including prime power of 15kW and standby power of 16kW.
- Wide voltage range compatibility (240V/230V/220V/110V) to suit various applications.
- Forced water cooling system for enhanced engine durability.
16kW Single Phase Diesel Generator Specifications:
| Single Phase Diesel Generator Technical Datasheets | ||||||
| Genset model | TG20BS-1 | |||||
| Genset Type | Silent | |||||
| Rate Voltage | 240V/230V/220V/110V | |||||
| Frequency | 50Hz | |||||
| Speed | 1500rpm | |||||
| Output Type | Single Phase | |||||
| P.F(COS) | P.F. 0.8 | |||||
| Prime Output Current | 78.3A | |||||
| Prime Power | 15kW / 18kVA | |||||
| Standby Power | 16kW / 20kVA | |||||
| Engine | Brand | Baudouin | ||||
| Model | 4M06G20/5 | |||||
| Alternator | Brand | Stamford | ||||
| Model | SOL2-G1 | |||||
| Controller | Brand | DEEPSEA | ||||
| Model | DSE6120 | |||||
| Genset Weight | 760kgs | |||||
| Genset Dimensions | L2200 * W 1000 * 1400 | |||||
| Baudouin Diesel Engine Data | ||||||
| Brand | Baudouin | |||||
| Engine Model | 4M06G20/5 | |||||
| Number of Cylinders | 4 Cylinder in Line | |||||
| Cycle | 4-troke | |||||
| Aspiration | Natural Intake | |||||
| Displacement | 2.3L | |||||
| Compression ratio | 17.5:1 | |||||
| Bore×Stroke | 89*92mm | |||||
| Speed | 1500rpm | |||||
| Prime Power | 20kW | |||||
| Standby Power | 22kW | |||||
| Speed Governor | MECH or Electrical | |||||
| Cooling System | Forced water cooling cycle | |||||
| Starting system | DC Motor | |||||
| Fuel Consumption at 100% Load | 207g/kwh@1500rpm | |||||
| Stamford Alternator Data | ||||||
| Brand | Stamford | |||||
| Model | SOL2-G1 | |||||
| Frequency/speed | 50HZ/1500RPM | |||||
| Rate Output | 18kVA | |||||
| No. of Phase | Single Phase, Three Wire | |||||
| Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
| Power factor | 0.8 | |||||
| Insulation Grade | H | |||||
| Protection Grade | IP23 | |||||
| Working Condition | Below 1000m | |||||
| Bearing | Single | |||||
| Coupling | Direct | |||||
| Voltage adjust range | ≥5% | |||||
| Voltage regulation NL-FL | ≤±1% | |||||
| DEIF Controller System | ||||||
| Controller | Brand | Deepsea | ||||
| Model | DSE6120 | |||||
| Function | Auto Mains (Utility) Failure | |||||
| Static with auto. battery charger | ||||||
| Emergency stop push button | ||||||
| ATS & RS485 Connection | ||||||
| CAN Functions | ||||||
| Diesel Generator Output ranges & Brand Options | ||||||
| Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
| 17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
| 10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
| 16kW ~ 600kW | Deutz | Marathon | DEIF | |||
| 7kW ~ 64kW | Yangdong |
Tecgen
|
||||
| 7kW ~ 76kW | Quanchai | |||||
| 18kW ~ 3000kW | Weichai | |||||
| 8kW ~ 800kW | SDEC | |||||
| 12kW ~ 320kW | FAWDE | |||||
| 18kW ~ 1200kW | Yuchai | |||||
| 11kW ~ 104kW | Beinei Aircooled | |||||
| 7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
| 6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
| 6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
| 17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
| 210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
| 6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
Silent single phase diesel generator is suitable for a wide range of applications, including residential, commercial, and industrial settings. It can be used as a backup power source during power outages or as a primary power source in remote locations.
Advantages:
- Low fuel consumption rates, ensuring cost-effective operation.
- IP23 protection grade for added safety and reliability.
- Easy-to-use controls and intuitive interface for convenient operation.
- Compatible with various engine speed governors (MECH or Electrical) for flexible operation.
Options:
We offer a range of options to customize your diesel generator to your specific needs. Choose from different diesel engine brands (such as Cummins, Weifang Ricardo, Deutz, etc.), alternator brands (including Leroy Somer, Tecgen, Marathon), and controller systems (DEIF, Mebay, etc.). We also provide various power output ranges to suit your power requirements.
FAQ:
- Q: What is the noise level of the silent diesel generator?
A: The TG20BS-1 is designed for silent operation, ensuring minimal noise levels for a peaceful environment. - Q: Can I use this generator for commercial applications?
A: Yes, this generator is suitable for both residential and commercial use. - Q: How do I maintain the diesel engine?
A: Regular maintenance is essential for optimal performance. Please refer to the engine's maintenance manual for detailed instructions.
Q: What is the fuel consumption rate of this generator?
A: The fuel consumption rate is 207g/kwh at 1500rpm when operating at 100% load.
Q: How does the automatic mains failure function work?
A: The DEEPSEA controller automatically switches to generator power when the utility power fails, ensuring uninterrupted power supply.
