Single Phase Ricardo Diesel Generator 28kVA Weifang Ricardo Generator For Backup Power
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Type | Single Phase | Rate Power | 22kW / 28kVA |
|---|---|---|---|
| Max Power | 24kW / 30kVA | Voltage | 220V |
| Frequency | 50Hz | Engine Brand | Ricardo |
| Engine Model | N4100DS-30 | Engine Power | 30kW |
| Highlight | Single phase Ricardo diesel generator,backup power Ricardo diesel generator,28kVA Ricardo diesel generator |
||
Product Description

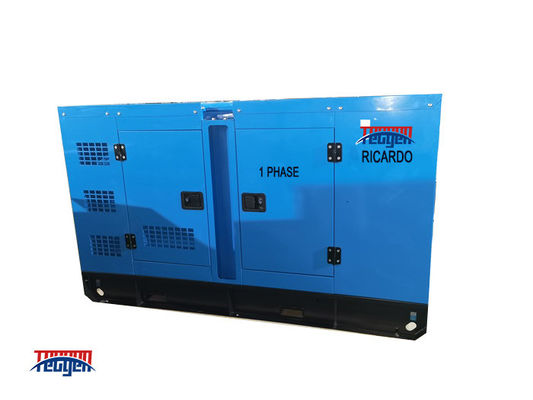

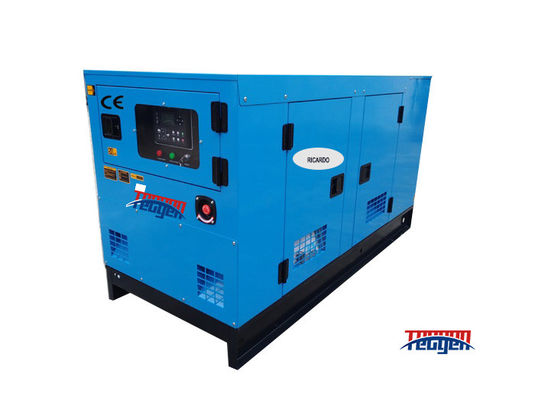

Single phase Ricardo diesel generator 28kVA Weifang Ricardo generator for backup power
Product Description: Single Phase Ricardo Diesel Generator - The Ultimate Backup Power Solution
Standard Features:
- Powerful KOFO Ricardo Series diesel engine.
- Reliable TGI184S22 alternator for stable power output.
- Automatic voltage regulation for consistent voltage delivery.
- User-friendly control panel with AMF module and emergency stop button.
- Robust construction for long-term durability.
Key Features:
- High-efficiency design, maximizing fuel economy.
- Quiet operation, minimizing noise pollution.
- Easy maintenance and repair access.
- Compact size, suitable for limited spaces.
- IP23 enclosed alternator for enhanced safety.
Single Phase Ricardo Diesel Generator Specifications:
| Technical Specification: | ||
| Single Phase Generator Set Specification | ||
| Genset Model | TG30R-1 | TG30RS-1 |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 220V | |
| Phase | Single Phase | |
| Rate Current | 127.3A | |
| Prime Power | 22kW / 28kVA | |
| Standby Power | 24kW / 30kVA | |
| Engine Model | N4100DS-30 | |
| Alternator Model | TGI184S22 | |
| Controller | Mebay DC52D | |
| Weight & Dimensions | ||
| Length (mm) | 1450 | 1950 |
| width (mm) | 780 | 870 |
| Height (mm) | 1000 | 1100 |
| Weight (kgs) | 660 | 900 |
| Engine Specification | ||
| Brand | KOFO Ricardo Series | |
| Engine Model | N4100DS-30 | |
| Prime power (kW) | 30 | |
| Injection | Indirect | |
| Aspiration | Naturally Aspirated | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 100 x 115 | |
| Displacement (L) | 3.61 | |
| Cooling | water | |
| Compression Ratio | 17:1 | |
| Engine Oil capacity (L) | 5.5 | |
| Coolant Capacity ( In radiator) | 5.5 | |
| Governor | Mech | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 6.2 | |
| 75% Load (L/h) | 4.6 | |
| 50% Load (L/h) | 3.0 | |
| 25% Load (L/h) | 1.5 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S22 | |
| Rate Output (kVA) | 28 | |
| Pole | 4 | |
| Output Type | Single Phase | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Mebay | |
| Model | DC52D | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Usage:
Ideal for residential, commercial, and industrial applications that require a dependable single-phase power source. Whether it's powering essential appliances during a power outage or serving as a backup for critical machinery, our single phase ricardo diesel generator is the perfect solution.
Advantages:
- Fast startup time, ensuring prompt power restoration.
- Long operational lifespan, reducing the need for frequent replacements.
- Low maintenance costs, saving you money in the long run.
- Versatile options for customization, meeting specific needs.
Optional Equipments:
- ATS Box for automatic transfer switching.
- Remote Control for convenient operation from afar.
- Daily Fuel Tank for extended runtime without refilling.
- Engine and Water Heaters for cold weather operation.
- Trailer Type for easy transportation and relocation.
FAQ:
- Q: What is the difference between the TG30R-1 and TG30RS-1 models?
A: The TG30R-1 is an open-type generator set, while the TG30RS-1 is a silent-type generator set with reduced noise levels. - Q: Is the generator easy to maintain?
A: Yes, the generator has been designed with easy maintenance in mind, with accessible components and a user-friendly control panel. - Q: What makes your single phase ricardo diesel generator stand out?
A: Our generator stands out due to its powerful diesel engine, reliable alternator, and advanced control system, all wrapped in a compact and durable design.
Searching for a reliable and efficient single phase diesel generator? Look no further than our Weifang Ricardo Generator. With its robust construction, high-efficiency design, and versatile options, it's the perfect choice for your backup power needs.
