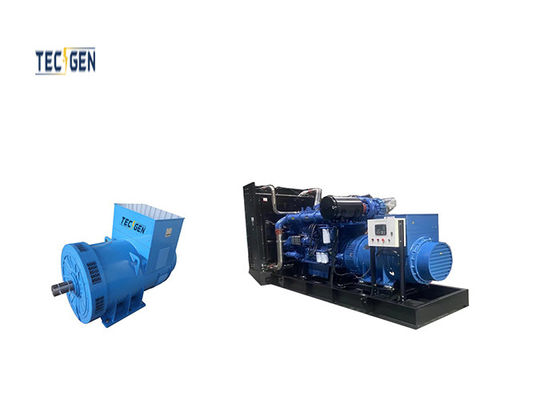

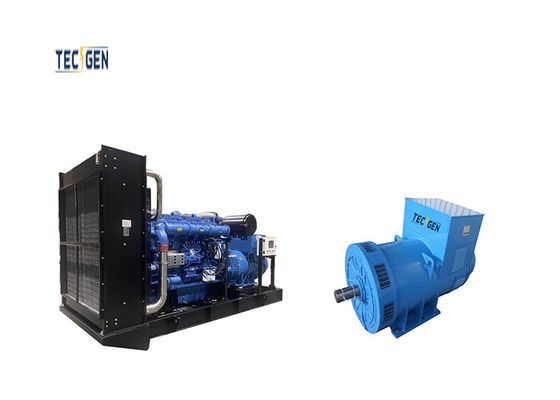

Emergency Industrial Genset 720kW Open Type Generator Powered By Baudouin Engine

  • Emergency Industrial Genset 720kW Open Type Generator Powered By Baudouin Engine
  • Emergency Industrial Genset 720kW Open Type Generator Powered By Baudouin Engine
Place of Origin Fuzhou, China
Brand Name Tecgen Power
Certification CE / SASO / SONCAP / COC / PVOC
Model Number TG1000B
Minimum Order Quantity 1 unit
Price Negotiation
Packaging Details Stretch film packaging
Delivery Time 7 - 15 Working Days
Payment Terms T/T, L/C
Supply Ability 200 Units Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Baudouin Diesel Generator Type Open Type
Frequency 50Hz Rate Speed 1500rpm
Prime Output 720kW Standby Output 800kW
Engine Brand Baudouin Engine Model 8M33G1000/5
Highlight

Baudouin engine Emergency industrial genset

,

720kW Emergency industrial genset

,

open Emergency industrial genset
Leave a Message
Product Description

Emergency industrial genset 720kW open type generator powered by Baudouin engine





Product Description: 720kW Open Type Generator - Emergency Industrial Genset





Standard Features:



  • Rated Output of 720kW / 900kVA for robust power generation.
  • 50Hz frequency for stable and reliable electricity supply.
  • 240/415V rated voltage compatible with most industrial applications.
  • Three-phase, 0.8 power factor for efficient energy transfer.
  • Sturdy construction with dimensions of L4385 x W1730 x H2000 mm.





Key Features:



  • Baudouin 8M33G1000/5 diesel engine for dependable performance.
  • Tecgen TGI404S720 alternator with 100% pure copper windings for maximum efficiency.
  • Smartgen HGM6120N control system with comprehensive monitoring and protection functions.
  • Integrated fuel tank for extended operation without refueling.
  • Option for ATS Box/Cabinet for automatic transfer switch capabilities.



Emergency Industrial Genset 720kW Open Type Generator Powered By Baudouin Engine 0





720kW Open Type Baudouin Diesel Generator Specification:



Baudouin Diesel Power Genset Datasheet
Genset Model TG1000B
Rated Output 720kW / 900kVA
Standby Output 800kW / 1000kVA
Frequency 50Hz
Rated Voltage 240/415V
Output Type Three Phase, 0.8
Rated Current (A) 1252.1A
Dimension (mm) L4385 x W1730 x H2000
Gross Weight (kg) 6500
Diesel Engine Brand Baudouin
Model 8M33G1000/5
Configuration Four-stroke,Water-cooling,Direct Injection
Rated Power 815kW
Rated Speed (rpm) 1500rpm
Cylinder No. 8
Bore*Stroke (mm) 150 x 185
Displacement(L) 26.1
Intake Turbochaged
Oil Consumption (g/Kw*h) 236@100% load
Starting method 24V DC
Alternator Brand Tecgen
Model TGI404S720
Rated Power 900kVA
Materials 100% pure copper
Efficiency 92.50%
Voltage Regulation <=±1
Voltage Regulation Brushless, Self-excitation
Insulation Class H
Option brands Stamford / Leroy Somer / Meccalte
Control System Brand Smartgen
Model HGM6120N
Working Voltage DC8.0V to DC35.0V, continuous
Overall Dimensions (mm) 233*38.5*173
Panel Cutout (mm) 219*158
Working Condition 0 to 95 % RH. To IEC 60068-2-78
Functions AMF/ATS
RS485 & CAN communication
9 Inlet & 7 Outlet
PLC & BTN
Protections Under-speed
Over-speed
Configurable crank connect
Battery monitoring
Charging alternator
Pre-heat
Coolant temperature
Lube oil pressure
Fuel level detection
Fuel theft detection
ECU communication failure
ECU diagnostic lamp
Option brands Deepsea / Smartgen / ComAp / Mebay
Genset option equipment
Integrated-Fuel-Tank ATS Box / Cabinet
PMG Alternator Sync Panel
Trailer Type Engine Heater
Water Heater Fuel – Water Separator
Maintenance Timetable of Diesel Generating Set
Items Job Content Everyday Every Week Every Month Every Six Month Every Year or 250 Hours
Lubricating System Check Oil leakage √ √ √ √ √
Level of engine oil √ √ √ √ √
Replace Oil Filter       √ √
Engine Olil       √ √
Clean Crankcase box       √ √
Cooling System Check Oil leakage √ √ √ √ √
Radiator Block     √ √ √
Soft Tube and Joint     √ √ √
Fluid   √ √ √ √

Antifreeze and

Anticorrosion

     √ √ √
Belt Status       √ √

Add Grease

lubricant

 Fan and Tensing       √ √
Belt wheel       √ √
Check Driving Belt wheel and pump       √ √
Replace Cooling Liquid Every 12 months
Clean Cooling System
Airflow System Check Oil Gas     √ √ √
Cleaner   √ √ √ √
Pipe Fittings and Joint       √ √
Replace Core of Air Cleaner         √
Fuel System Check Leakage √ √ √ √ √
Quality of Fuel   √ √ √ √
Pump Nozzle         √
Fuel pipe and Joint       √ √
Oil Pump     √ √ √
Discharged Deposition of Fuel Tank     √ √ √
Replace Filter of oil       √ √
Check Nozzle Every Two Years
Adjust Value         √





Usage:



The 720kW open type generator is designed for emergency and industrial use, providing reliable backup power in case of utility power failures. It is suitable for hospitals, factories, data centers, and other critical facilities that require uninterrupted power supply.





Emergency Industrial Genset 720kW Open Type Generator Powered By Baudouin Engine 1





Advantages:



  • High efficiency and low fuel consumption, reducing operating costs.
  • Easy maintenance with regularly scheduled checks and long service intervals.
  • Durable and reliable components ensure long-term performance.
  • Quiet operation with low noise levels, minimizing disturbance to the surrounding environment.
  • Comprehensive protection features safeguard the genset from damage and extend its lifespan.





Options:



  • Choose from a variety of option brands for alternator, control system, and other components.
  • Customize the genset with additional equipment such as PMG alternator, sync panel, and water heater.
  • Trailer type available for easy transportation and deployment.





FAQ:



  • Q: What is the standby output of this generator?
    A: The standby output of this generator is 800kW / 1000kVA, ensuring ample power reserve for unexpected demand spikes.
  • Q: How often does the genset require maintenance?
    A: The genset requires regular maintenance checks as per the maintenance timetable. This includes checks on the lubricating system, cooling system, and other components.
  • Q: Is this genset suitable for outdoor use?
    A: Yes, the open type design of this generator makes it suitable for outdoor use. However, it should be placed in a well-ventilated area to prevent overheating.
