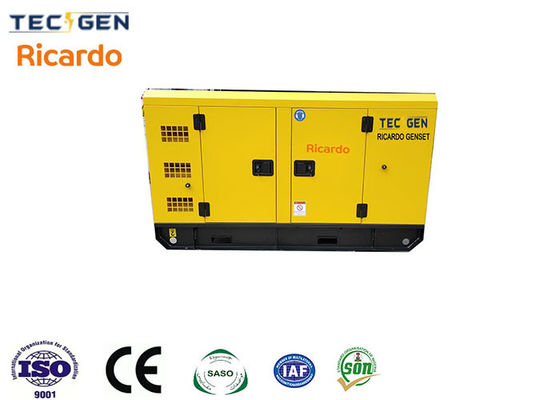

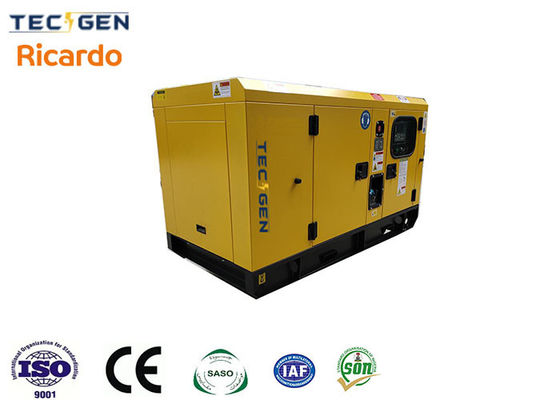

28kVA Weifang Ricardo diesel generator 3 Phase Ricardo generators for home use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Soundproof | Frequency | 60Hz / 1800rpm |
|---|---|---|---|
| Voltage | 480V | Phase No | 3 Phase |
| Engine Model | Ricardo 4YT23-30D | Prime Power | 22kW / 28kVA |
| 1 Hours Power | 24kW / 30kVA | Option | BUilt-in ATS Or Wall Mounted ATS Box |
| Highlight | home use Weifang Ricardo diesel generator,3 Phase Weifang Ricardo diesel generator,28kVA Weifang Ricardo diesel generator |
||
Product Description
28kVA Weifang Ricardo diesel generator 3 Phase Ricardo generators for home use
Standard Features:
- Soundproof design for reduced noise levels during operation.
- Built-in ATS (Automatic Transfer Switch) for seamless power transfer during mains failure.
- High-quality Ricardo 4YT23-30D engine for reliable and efficient performance.
- Tecgen TGI184S22 brushless alternator for stable and consistent power output.
- MEBAY DC52D controller with various protection features and communication capabilities.
- 3-phase, 4-wire output type for versatile power distribution.
- Varta battery for reliable starting and operation.
- Aisikai/Delixi breaker for enhanced electrical safety.
- 8-hour fuel tank capacity for extended operation.
Key Features:
- Prime Output: 22kW / 28kVA, Max Output: 24kW / 30kVA, providing ample power for your needs.
- Voltage: 208V, Frequency: 60Hz, and Speed: 1800rpm for stable and consistent power delivery.
- Steady state voltage regulation rate of ≤0.5% ensures precise voltage control.
- Transient voltage deviation of ≤+17% (100% sudden power reduction) guarantees stable voltage during load changes.
- Efficient water-cooling system with a cooling capacity of 5.5 ensures optimal engine performance.
- Electric governor and DC 24V start motor for reliable and easy engine control.
28kVA Weifang Ricardo Diesel Generator Specifications:
| 28kVA Weifang Ricardo Diesel Generator Datasheet | ||||
| Ricardo Generator Set | Genset Type | Soundproof | ||
| Genset Model | TG30RSD6 | |||
| Prime Output | 22kW / 28kVA | |||
| Max Output | 24kW / 30kVA | |||
| Engine model | Ricardo 4YT23-30D | |||
| Alternator | TGI184S22 | |||
| Frequency | 60Hz | |||
| Speed | 1800rpm | |||
| Voltage | 208V | |||
| Output Type | 3 Phase, 4 Wire | |||
| Current | 77.7A | |||
| Controller | MEBAY DC52D | |||
| ATS | Built-in ATS / Wall mounted Box | |||
| Breaker | Aisikai / Delixi | |||
| Battery | Varta | |||
| Fuel Tank | 8 running Hours | |||
| Demission | L2200x900x1150mm | |||
| Weight | 750kgs | |||
| 28kVA Weifang Ricardo Generator set parameters | ||||
| Voltage setting range | ≥±10% | |||
| Steady state voltage regulation rate | ≤0.5% | |||
| Transient voltage deviation (100% sudden power reduction) | ≤+17% | |||
| Transient Voltage Deviation (40% Sudden Power) | ≤-6.5% | |||
| Voltage Stability Time (100% Sudden Power Reduction) | ≤2.8S | |||
| Voltage Stability Time (40% Sudden Power) | ≤2.5S | |||
| Frequency adjustment range | ≥±10%Adjustble | |||
| Frequency volatility | ≤±0.25% | |||
| Transient frequency deviation (100% sudden power reduction) | ≤+8% | |||
| Transient frequency deviation (40% sudden power) | ≤-5% | |||
| Frequency Recovery Time (100% Sudden Power Reduction) | ≤1.48S | |||
| Frequency recovery time (40% sudden power) | ≤1.35S | |||
| Weifang Ricardo Diesel Engine Parameters | ||||
| Weifang Ricardo Engine 4YT23-30D | Brand | Weifang Ricardo | ||
| Model | 4YT23-30D | |||
| Prime power | 30kW | |||
| Combustion | Direct Injection | |||
| No. of Cylinders | 4 Cylinder | |||
| Aspiration | Turbocharged | |||
| Compression Ratio | 18 : 1 | |||
| Speed | 1800rpm | |||
| Displacement | 2.31 | |||
| Bore* Storke | 88mm*95mm | |||
| governor | Electric | |||
| Start motor | DC 24V | |||
| Cooling Capacity | 5.5 | |||
| Cooling Type | Water cooling | |||
| FUEL CONSUMPTION | 230g/kW.h | |||
| AC Brushless Alternator Parameters | ||||
| Alternator TGI184S22 | Brand | Tecgen | ||
| Model | TGI184S22 | |||
| Rate Output | 22kW | |||
| Rate Speed | 1800rpm | |||
| Frequency | 60Hz | |||
| Altitude | ≤1000 | |||
| Alternator type | Single bearing, brushless type | |||
| Connection Type | 3 phase, 4 wire | |||
| Protection Grade | IP23 | |||
| Insulation Class | H | |||
| Voltage Regulation | AVR | |||
| Option brand | Stamford,Leroy Somer,Meccalte | |||
| Ricardo Genset Controller System | ||||
| Controller MEBAY DC52D | Brand | MEBAY | ||
| Model | DC52D | |||
| Working Voltage | DC8.0V to DC35.0V, continuous | |||
| Overall Dimensions (mm) | 233*38.5*173 | |||
| Functions | AMF/ATS | |||
| RS485 & CAN communication | ||||
| 9 Inlet & 7 Outlet | ||||
| PLC & BTN | ||||
| Protections | Under-speed | |||
| Over-speed | ||||
| Configurable crank connect | ||||
| Battery monitoring | ||||
| Charging alternator | ||||
| Pre-heat | ||||
| Coolant temperature | ||||
| Lube oil pressure | ||||
| Fuel level detection | ||||
| Fuel theft detection | ||||
| ECU communication failure | ||||
| ECU diagnostic lamp | ||||
| Option brand | DEEPSEA,Smartgen,ComAp | |||
| Optional accessories | ||||
| Engine | Alternator | Electrical system | ||
| Water Heater | Anti-condensation heater | Anti-condensation heater | ||
| Oil preheater | PMG | Unit control screen with three remote functions | ||
| Air starting motor | Parallel | ATS automatic load transfer screen | ||
| Heavy Air Filter for Desert | Generators of other temperature rise grades | Full-automatic parallel screen for multiple units | ||
| Heavy duty secondary muffler | RTD temperature sensor, 2 per phase | Remote control system separate from unit | ||
| Fuel system | Other | Cooling system | ||
| 12/24h Base tank | Super Silent Canopy | Split water tank | ||
| Oil - water separator | Static sound box generator set |
|
||
| Fully automatic oil supply system | Vehicle-mounted power generation vehicle | Heat exchanger and external circulation cooling tower | ||
| Integrated Fuel Tank | Towing generator set | Marine cooling system | ||
| Delivery Date of Diesel Generator Set | ||||
| Spot goods | QTY(Set) | 12 – 24 Sets | 24 – 120 Sets | |
| Delivery Time | 7-15 Days | 15 – 25 Days | ||
| Custom | Delivery Time | 20 Days | 20 – 30 Days | |
Usage:
The 28kVA Weifang Ricardo Diesel Generator is ideal for various applications, including:
- Industrial sites: Powering machinery, equipment, and tools.
- Construction sites: Providing reliable power for construction activities.
- Residential areas: Acting as a backup power source during power outages.
- Commercial establishments: Ensuring uninterrupted operations for businesses.
- Events and outdoor activities: Powering lighting, sound systems, and other equipment.
Advantages:
- Reliable Performance: The Weifang Ricardo engine and Tecgen alternator ensure dependable power generation.
- Fuel Efficiency: With a fuel consumption rate of 230g/kW.h, it offers cost-effective operation.
- Compact Design: The generator set has a demission of L2200x900x1150mm, making it space-efficient.
- Easy Operation: The MEBAY DC52D controller provides user-friendly control and monitoring.
- Versatile Connectivity: The generator is equipped with RS485 and CAN communication for seamless integration into your power system.
Options:
- Option Brands: Stamford, Leroy Somer, Meccalte alternators for customization based on your requirements.
- Optional Accessories: Water heater, anti-condensation heater, oil preheater, and more, enhancing functionality and performance.
FAQs (Frequently Asked Questions):
Q1. What is the prime output and max output of Ricardo generators?
A1. The prime output is 22kW / 28kVA, and the max output is 24kW / 30kVA.
Q2. Can this generator be used for residential backup power?
A2. Yes, it is suitable for providing backup power in residential areas during outages.
Q3. What is the fuel consumption rate of Ricardo generator?
A3. The fuel consumption rate is 230g/kW.h, ensuring efficient and economical operation.
Q4. Is Ricardo generator set equipped with a built-in ATS?
A4. Yes, it comes with a built-in ATS for automatic transfer of power during mains failure.
Q5. Can I customize the alternator brand?
A5. Yes, you have the option to choose from Stamford, Leroy Somer, or Meccalte alternators.
