Rain Proof 38kVA Ricardo engine genset soundproof generator set for backup power
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Soundproof | Frequency | 60Hz / 1800rpm |
|---|---|---|---|
| Voltage | 480V | Phase No | 3 Phase |
| Engine Model | Ricardo MN4105DS-38 | Prime Power | 30kW / 38kVA |
| 1 Hours Power | 33kW / 41kVA | Option | Water Heater / ATS |
| Highlight | 38kVA soundproof generator set,Rain Proof soundproof generator set,backup power soundproof generator set |
||
Product Description

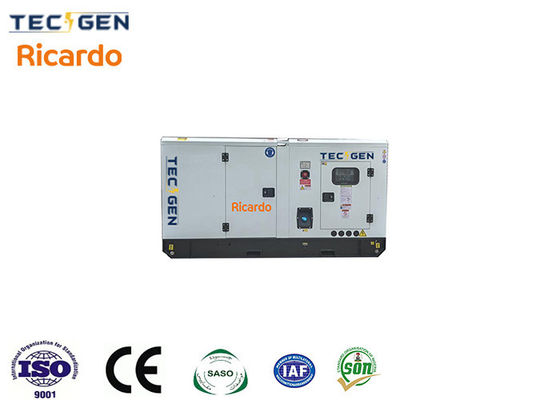

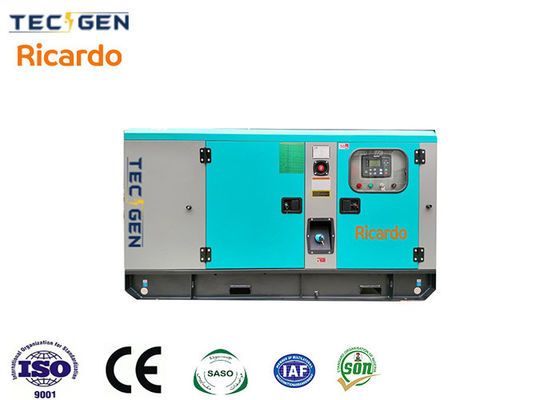

Rain Proof 38kVA Ricardo engine genset soundproof generator set for backup power
Standard Features:
- Soundproof design for reduced noise levels
- Prime Output: 30kW / 38kVA, Max Output: 33kW / 41kVA
- Ricardo MN4105DS-38 engine for reliable power generation
- TGI184S30 AC brushless alternator for efficient performance
- 3-phase, 4-wire output for versatile applications
- Built-in ATS for automatic transfer during power outages
- MEBAY DC52D controller with advanced functionalities
- Rainproof construction for enhanced durability
- 8-hour fuel tank capacity for extended operation
- Compact dimensions for easy installation
Key Features:
- Rain Proof: Engineered to withstand harsh weather conditions, this genset is rainproof, ensuring reliable performance even during heavy rainfall. Your power supply remains uninterrupted, making it ideal for outdoor applications.
- High Power Output: With a prime output of 30kW / 38kVA and a maximum output of 33kW / 41kVA, this generator set provides ample power to meet your electrical needs. From residential to commercial applications, it delivers consistent and efficient performance.
- Reliable Ricardo Engine: The Ricardo MN4105DS-38 engine is renowned for its reliability and durability. It features direct injection, natural intake aspiration, and a 4-cylinder design, ensuring efficient combustion and long-term operation.
- Advanced Alternator: The TGI184S30 AC brushless alternator offers stable and efficient power generation. With its single-bearing, brushless design, it provides reliable voltage regulation and excellent performance, even in demanding conditions.
Rain Proof 38kVA Ricardo Engine Genset Specifications:
| Rain Proof 38kVA Ricardo Engine Genset Datasheet | ||||
| Ricardo Power Generator Set | Genset Type | Soundproof | ||
| Genset Model | TG41RSD6 | |||
| Prime Output | 30kW / 38kVA | |||
| Max Output | 33kW / 41kVA | |||
| Engine model | Ricardo MN4105DS-38 | |||
| Alternator | TGI184S30 | |||
| Frequency | 60Hz | |||
| Speed | 1800rpm | |||
| Voltage | 208V | |||
| Output Type | 3 Phase, 4 Wire | |||
| Current | 105.5A | |||
| Controller | MEBAY DC52D | |||
| ATS | Built-in ATS / Wall mounted Box | |||
| Breaker | Aisikai / Delixi | |||
| Battery | Varta | |||
| Fuel Tank | 8 running Hours | |||
| Demission | L2300x900x1150mm | |||
| Weight | 890kgs | |||
| Weifang Ricardo Generator set parameters | ||||
| Voltage setting range | ≥±10% | |||
| Steady state voltage regulation rate | ≤0.5% | |||
| Transient voltage deviation (100% sudden power reduction) | ≤+17% | |||
| Transient Voltage Deviation (40% Sudden Power) | ≤-6.5% | |||
| Voltage Stability Time (100% Sudden Power Reduction) | ≤2.8S | |||
| Voltage Stability Time (40% Sudden Power) | ≤2.5S | |||
| Frequency adjustment range | ≥±10%Adjustble | |||
| Frequency volatility | ≤±0.25% | |||
| Transient frequency deviation (100% sudden power reduction) | ≤+8% | |||
| Transient frequency deviation (40% sudden power) | ≤-5% | |||
| Frequency Recovery Time (100% Sudden Power Reduction) | ≤1.48S | |||
| Frequency recovery time (40% sudden power) | ≤1.35S | |||
| Weifang Ricardo Diesel Engine Parameters | ||||
| Weifang Ricardo Engine MN4105DS-38 | Brand | Weifang Ricardo | ||
| Model | MN4105DS-38 | |||
| Prime power | 38kW | |||
| Combustion | Direct Injection | |||
| No. of Cylinders | 4 Cylinder | |||
| Aspiration | Natural Intake | |||
| Compression Ratio | 17: 1 | |||
| Speed | 1800rpm | |||
| Displacement | 4.15L | |||
| Bore* Storke | 105mm*120mm | |||
| governor | Electric | |||
| Start motor | DC 24V | |||
| Cooling Capacity | 5.5 | |||
| Cooling Type | Water cooling | |||
| FUEL CONSUMPTION | 240g/kW.h | |||
| AC Brushless Alternator Parameters | ||||
| AC Alternator TGI184S30 | Brand | Tecgen | ||
| Model | TGI184S30 | |||
| Rate Output | 30kW | |||
| Rate Speed | 1800rpm | |||
| Frequency | 60Hz | |||
| Altitude | ≤1000 | |||
| Alternator type | Single bearing, brushless type | |||
| Connection Type | 3 phase, 4 wire | |||
| Protection Grade | IP23 | |||
| Insulation Class | H | |||
| Voltage Regulation | AVR | |||
| Option brand | Stamford,Leroy Somer,Meccalte | |||
| Ricardo Genset Controller System | ||||
| Controller MEBAY DC52D | Brand | MEBAY | ||
| Model | DC52D | |||
| Working Voltage | DC8.0V to DC35.0V, continuous | |||
| Overall Dimensions (mm) | 233*38.5*173 | |||
| Functions | AMF/ATS | |||
| RS485 & CAN communication | ||||
| 9 Inlet & 7 Outlet | ||||
| PLC & BTN | ||||
| Protections | Under-speed | |||
| Over-speed | ||||
| Configurable crank connect | ||||
| Battery monitoring | ||||
| Charging alternator | ||||
| Pre-heat | ||||
| Coolant temperature | ||||
| Lube oil pressure | ||||
| Fuel level detection | ||||
| Fuel theft detection | ||||
| ECU communication failure | ||||
| ECU diagnostic lamp | ||||
| Option brand | DEEPSEA,Smartgen,ComAp | |||
| Optional accessories | ||||
| Engine | Alternator | Electrical system | ||
| Water Heater | Anti-condensation heater | Anti-condensation heater | ||
| Oil preheater | PMG | Unit control screen with three remote functions | ||
| Air starting motor | Parallel | ATS automatic load transfer screen | ||
| Heavy Air Filter for Desert | Generators of other temperature rise grades | Full-automatic parallel screen for multiple units | ||
| Heavy duty secondary muffler | RTD temperature sensor, 2 per phase | Remote control system separate from unit | ||
| Fuel system | Other | Cooling system | ||
| 12/24h Base tank | Super Silent Canopy | Split water tank | ||
| Oil - water separator | Static sound box generator set |
|
||
| Fully automatic oil supply system | Vehicle-mounted power generation vehicle | Heat exchanger and external circulation cooling tower | ||
| Integrated Fuel Tank | Towing generator set | Marine cooling system | ||
| Delivery Date of Diesel Generator Set | ||||
| Spot goods | QTY(Set) | 12 – 24 Sets | 24 – 120 Sets | |
| Delivery Time | 7-15 Days | 15 – 25 Days | ||
| Custom | Delivery Time | 20 Days | 20 – 30 Days | |
Usage:
The rainproof 38kVA Ricardo Engine Genset is designed to provide reliable power in a wide range of applications. Whether you need backup power for your home, a reliable power source for your business, or a portable generator for outdoor events, this genset is your trusted solution. It is suitable for construction sites, remote locations, residential complexes, hospitals, data centers, and more. Its rainproof design ensures uninterrupted power supply, even during inclement weather.
Advantages:
- Weather Resistant: The rainproof construction of this genset ensures reliable operation even in heavy rainfall, allowing you to continue your activities without interruptions.
- Robust Performance: With a prime output of 30kW / 38kVA and a maximum output of 33kW / 41kVA, this genset delivers ample power to meet your electrical demands, ensuring smooth operations.
- Reliable Engine: The Ricardo MN4105DS-38 engine is known for its reliability, offering efficient combustion and long-term durability, making it the heart of this generator set.
- Efficient Alternator: The TGI184S30 AC brushless alternator provides stable power generation, ensuring consistent voltage regulation and optimal performance.
- Easy to Use: Equipped with the MEBAY DC52D controller, this genset offers advanced functionalities and user-friendly operation, allowing you to monitor and control the unit with ease.
- Versatile Application: Suitable for various settings, including residential, commercial, and outdoor environments, this genset adapts to your power needs, providing flexibility and convenience.
Options:
Customize your generator set with optional accessories and features, such as water heaters, oil preheaters, air starting motors, PMG (Permanent Magnet Generator), automatic load transfer screens, and more. These options enhance the functionality and performance of the genset, tailoring it to your specific requirements.
FAQ:
- Is this genset suitable for outdoor use?
Yes, the rainproof design ensures its suitability for outdoor applications, providing reliable power even in adverse weather conditions. - Can it be used for residential purposes?
Absolutely! This genset is suitable for both residential and commercial use, offering seamless power backup during outages. - What is the fuel consumption of the Ricardo engine?
The fuel consumption of the Ricardo MN4105DS-38 engine is 240g/kW.h, ensuring efficient operation and cost savings. - Can I monitor and control the genset remotely?
Yes, with the MEBAY DC52D controller, you can access advanced functionalities and monitor the genset remotely for added convenience.
