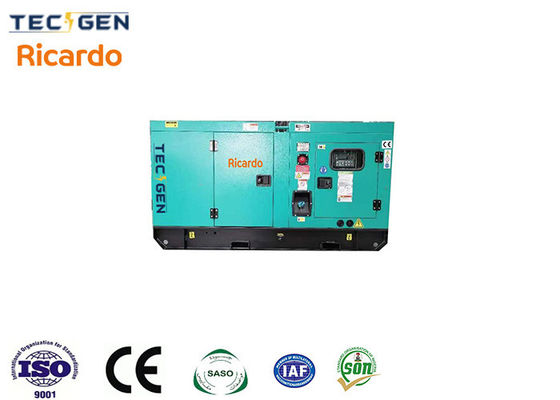

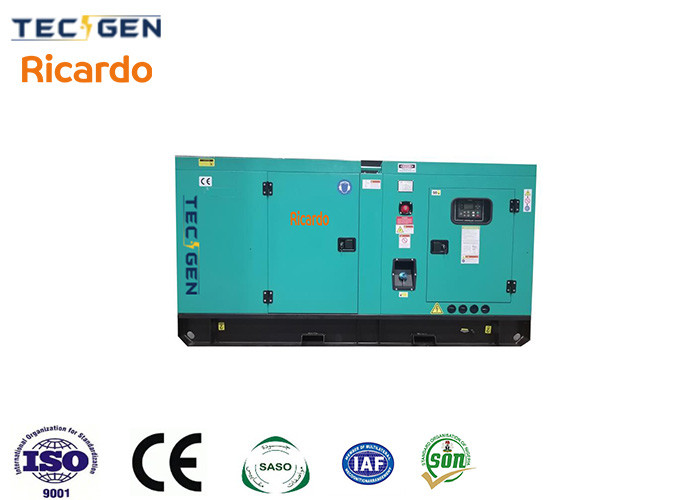

60Hz 32kW Weifang Ricardo genset silent diesel generator for construction sites
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Soundproof | Frequency | 60Hz / 1800rpm |
|---|---|---|---|
| Voltage | 480V | Output Type | 3 Phase, 4 Wire |
| Engine Model | Ricardo MN4100ZDS-42 | Prime Power | 32kW / 40kVA |
| 1 Hours Power | Ricardo MN4100ZDS-42 | Canopy Color | Customed |
| Highlight | 60Hz silent diesel generator,32kW silent diesel generator,construction sites silent diesel generator |
||
Product Description
60Hz 32kW Weifang Ricardo genset silent diesel generator for construction sites
Introducing the 60Hz 32kW Weifang Ricardo Genset, the perfect solution for all your power generation needs. This silent genset combines advanced features, reliable performance, and exceptional efficiency, making it an ideal choice for various applications.
Standard Features:
- Soundproof design ensures quiet operation, making it suitable for noise-sensitive environments.
- 3 Phase, 4 Wire output provides stable and reliable power for your equipment.
- Built-in ATS (Automatic Transfer Switch) allows for seamless power transfer during utility outages.
- The MEBAY DC52D controller offers extensive protection and monitoring functionalities for optimal performance and safety.
- Aisikai/Delixi breaker guarantees reliable circuit protection.
- Varta battery ensures consistent starting power.
Key Features:
- Prime Output: 32kW / 40kVA, providing ample power to meet your specific requirements.
- Ricardo MN4100ZDS-42 engine, known for its exceptional performance, reliability, and fuel efficiency.
- TGI184S32 alternator, a brushless type with AVR (Automatic Voltage Regulation) for stable and clean power output.
- Steady state voltage regulation rate of ≤0.5% ensures a consistent and reliable power supply.
- Frequency adjustment range of ≥±10% allows for flexibility in various applications.
60Hz 32kW Weifang Ricardo Genset Specifications:
| 60Hz 32kW Weifang Ricardo Genset Datasheet | ||||
| Ricardo Generator Set | Genset Type | Soundproof | ||
| Genset Model | TG44RSD6 | |||
| Prime Output | 32kW / 40kVA | |||
| Max Output | 35kW / 44kVA | |||
| Engine model | Ricardo MN4100ZDS-42 | |||
| Alternator | TGI184S32 | |||
| Frequency | 60Hz | |||
| Speed | 1800rpm | |||
| Voltage | 480V | |||
| Output Type | 3 Phase, 4 Wire | |||
| Current | 48.1A | |||
| Controller | MEBAY DC52D | |||
| ATS | Built-in ATS / Wall mounted Box | |||
| Breaker | Aisikai / Delixi | |||
| Battery | Varta | |||
| Fuel Tank | 8 running Hours | |||
| Demission | L2300x930x1200mm | |||
| Weight | 950kgs | |||
| Weifang Ricardo Generator set parameters | ||||
| Voltage setting range | ≥±10% | |||
| Steady state voltage regulation rate | ≤0.5% | |||
| Transient voltage deviation (100% sudden power reduction) | ≤+17% | |||
| Transient Voltage Deviation (40% Sudden Power) | ≤-6.5% | |||
| Voltage Stability Time (100% Sudden Power Reduction) | ≤2.8S | |||
| Voltage Stability Time (40% Sudden Power) | ≤2.5S | |||
| Frequency adjustment range | ≥±10%Adjustble | |||
| Frequency volatility | ≤±0.25% | |||
| Transient frequency deviation (100% sudden power reduction) | ≤+8% | |||
| Transient frequency deviation (40% sudden power) | ≤-5% | |||
| Frequency Recovery Time (100% Sudden Power Reduction) | ≤1.48S | |||
| Frequency recovery time (40% sudden power) | ≤1.35S | |||
| Weifang Ricardo Diesel Engine Parameters | ||||
| Weifang Ricardo Engine MN4100ZDS-42 | Brand | Weifang Ricardo | ||
| Model | MN4100ZDS-42 | |||
| Prime power | 42kW | |||
| Combustion | Direct Injection | |||
| No. of Cylinders | 4 Cylinder | |||
| Aspiration | Turbocharged & Intercooled | |||
| Compression Ratio | 1 : 1 | |||
| Speed | 1800rpm | |||
| Displacement | 4.15L | |||
| Bore* Storke | 105mm*120mm | |||
| governor | Electric | |||
| Start motor | DC 24V | |||
| Cooling Capacity | 5.5 | |||
| Cooling Type | Water cooling | |||
| FUEL CONSUMPTION | 240g/kW.h | |||
| AC Brushless Alternator Parameters | ||||
| Alternator TGI184S32 | Brand | Tecgen | ||
| Model | TGI184S32 | |||
| Rate Output | 32kW | |||
| Rate Speed | 1800rpm | |||
| Frequency | 60Hz | |||
| Altitude | ≤1000 | |||
| Alternator type | Single bearing, brushless type | |||
| Connection Type | 3 phase, 4 wire | |||
| Protection Grade | IP23 | |||
| Insulation Class | H | |||
| Voltage Regulation | AVR | |||
| Option brand | Stamford,Leroy Somer,Meccalte | |||
| Ricardo Diesel Genset Controller System | ||||
| Controller MEBAY DC52D | Brand | MEBAY | ||
| Model | DC52D | |||
| Working Voltage | DC8.0V to DC35.0V, continuous | |||
| Overall Dimensions (mm) | 233*38.5*173 | |||
| Functions | AMF/ATS | |||
| RS485 & CAN communication | ||||
| 9 Inlet & 7 Outlet | ||||
| PLC & BTN | ||||
| Protections | Under-speed | |||
| Over-speed | ||||
| Configurable crank connect | ||||
| Battery monitoring | ||||
| Charging alternator | ||||
| Pre-heat | ||||
| Coolant temperature | ||||
| Lube oil pressure | ||||
| Fuel level detection | ||||
| Fuel theft detection | ||||
| ECU communication failure | ||||
| ECU diagnostic lamp | ||||
| Option brand | DEEPSEA,Smartgen,ComAp | |||
| Optional accessories | ||||
| Engine | Alternator | Electrical system | ||
| Water Heater | Anti-condensation heater | Anti-condensation heater | ||
| Oil preheater | PMG | Unit control screen with three remote functions | ||
| Air starting motor | Parallel | ATS automatic load transfer screen | ||
| Heavy Air Filter for Desert | Generators of other temperature rise grades | Full-automatic parallel screen for multiple units | ||
| Heavy duty secondary muffler | RTD temperature sensor, 2 per phase | Remote control system separate from unit | ||
| Fuel system | Other | Cooling system | ||
| 12/24h Base tank | Super Silent Canopy | Split water tank | ||
| Oil - water separator | Static sound box generator set |
|
||
| Fully automatic oil supply system | Vehicle-mounted power generation vehicle | Heat exchanger and external circulation cooling tower | ||
| Integrated Fuel Tank | Towing generator set | Marine cooling system | ||
| Delivery Date of Diesel Generating Set | ||||
| Spot goods | QTY(Set) | 12 – 24 Sets | 24 – 120 Sets | |
| Delivery Time | 7-15 Days | 15 – 25 Days | ||
| Custom | Delivery Time | 20 Days | 20 – 30 Days | |
Usage:
The 60Hz 32kW Weifang Ricardo Genset is versatile and suitable for a wide range of applications, including:
- Commercial and residential buildings
- Construction sites
- Data centers
- Manufacturing facilities
- Telecommunication towers
- Outdoor events and concerts
Advantages:
- Reliable Performance: The Weifang Ricardo engine and Tecgen alternator deliver consistent and high-quality power, ensuring uninterrupted operation.
- Fuel Efficiency: With a low fuel consumption rate of 240g/kW.h, this genset offers cost savings and reduced environmental impact.
- Soundproof Design: The silent operation of this genset minimizes noise pollution, making it suitable for noise-sensitive environments.
- Easy Operation: The MEBAY DC52D controller provides user-friendly operation and offers extensive protection and monitoring features.
- Seamless Power Transfer: The built-in ATS enables automatic transfer of power during utility outages, ensuring uninterrupted operation.
Option:
Customize your Weifang Ricardo Genset with optional accessories, including water heater, anti-condensation heater, oil preheater, air starting motor, heavy-duty secondary muffler, and more. These options can be tailored to your specific needs, providing enhanced functionality and convenience.
FAQ:
Q: What is the delivery time for the Weifang Ricardo Genset?
A: For spot goods, the delivery time is 7-15 days for quantities ranging from 12 to 24 sets.
Q: Can this genset handle sudden power reductions?
A: Yes, the genset is designed to handle sudden power reductions with transient voltage and frequency deviation well within acceptable limits. The voltage stability time for sudden power reductions is ≤2.8S.
Q: Is the Weifang Ricardo Genset suitable for outdoor use?
A: Yes, the genset is suitable for outdoor use. It features a soundproof design and robust construction to withstand various environmental conditions.
In summary, the 60Hz 32kW Weifang Ricardo Genset is a reliable and efficient power solution. Its silent operation, advanced features, and customizable options make it an excellent choice for a wide range of applications. Invest in this genset to ensure uninterrupted power supply and experience the exceptional performance it offers.
