Weifang Ricardo Engine 22kW Genset Open Type Ricardo Diesel Generators For Backup Power
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Open Type | Product | Weifang Ricardo Genset |
|---|---|---|---|
| Frequency | 50Hz | Voltage | 400/230V |
| Rate Output | 22kW / 28kVA | Max Output | 24kW / 30kVA |
| Engine Model | Ricardo ZH493D | Option | Silent Type |
| Highlight | backup power Ricardo diesel generators,22kW Ricardo diesel generators,open type Ricardo diesel generators |
||
Product Description

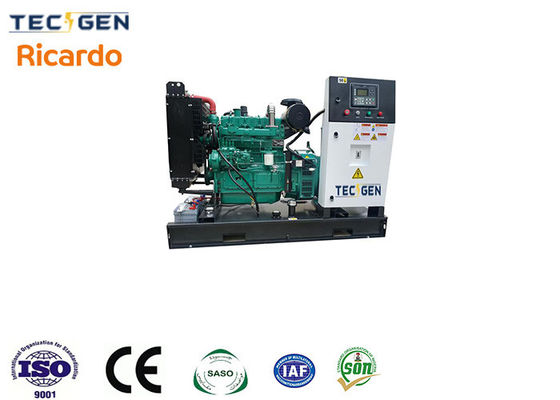

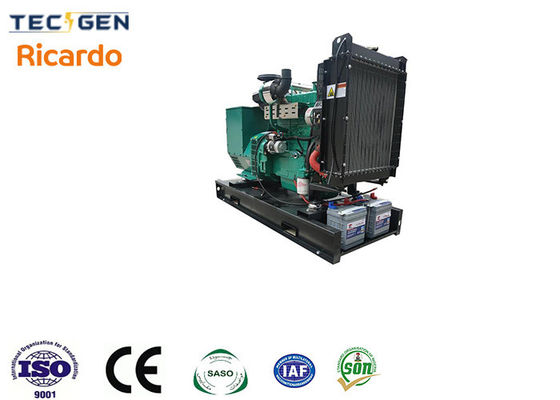

Weifang Ricardo engine 22kW genset open type Ricardo diesel generators for backup power
Introducing the Weifang Ricardo Engine 22kW Genset - your reliable power solution for various applications. Powered by the renowned Ricardo diesel engine, this genset combines superior performance, advanced features, and exceptional reliability to meet your electricity needs.
Standard Feature:
The Weifang Ricardo Engine 22kW Genset offers the following standard features:
- Genset Model: TG30N (Open), TG30NS (Silent)
- Frequency: 50Hz
- Voltage: 400/230V
- Phase: 3
- Rated Current: 40.4A
- Prime Power: 22kW / 28kVA
- Standby Power: 24kW / 30kVA
- Engine Model: Ricardo ZH493D
- Alternator Model: TGI184S22
- Controller: Tecgen 6110U
Key Features:
- Reliable Ricardo Engine: The Weifang Ricardo Genset is powered by the renowned Ricardo ZH493D engine, known for its durability, high performance, and low fuel consumption.
- Versatile Applications: This genset is suitable for a wide range of applications, including residential buildings, commercial complexes, hospitals, construction sites, and more, providing reliable power wherever you need it.
- Superior Performance: With a prime power output of 22kW and a standby power output of 24kW, this genset delivers consistent and stable power to keep your operations running smoothly.
- Advanced Controller: The Tecgen 6110U controller offers comprehensive control and monitoring capabilities, ensuring optimal performance and efficient operation of the genset.
- Silent Operation (Silent Model): The TG30NS Silent Model features a noise-reducing enclosure, allowing for quiet operation and minimizing noise disturbances in noise-sensitive environments.
Weifang Ricardo Engine 22kW Genset Datasheets:
| Technical Specification: | ||
| Weifang Ricardo Engine 22kW Genset Specification | ||
| Genset Model | TG30N | TG30NS |
| Open | Silent | |
| Frequency | 50Hz | |
| Voltage | 400/230V | |
| Phase | 3 | |
| Rate Current | 40.4A | |
| Prime Power | 22kW / 28kVA | |
| Standby Power | 24kW / 30kVA | |
| Engine Model | Ricardo ZH493D | |
| Alternator Model | TGI184S22 | |
| Controller | Tecgen 6110U | |
| Weight & Dimensions | ||
| Length (mm) | 1450 | 1950 |
| width (mm) | 780 | 870 |
| Height (mm) | 1000 | 1100 |
| Weight (kgs) | 660 | 900 |
| Engine Specification | ||
| Brand | Tianhe Ricardo Series | |
| Engine Model | ZH493D | |
| Prime power (kW) | 30 | |
| Injection | Indirect | |
| Aspiration | Naturally Aspirated | |
| No. of cylinders | 4 | |
| Bore of Stroke (mm) | 93 x 100 | |
| Displacement (L) | 2.72 | |
| Cooling | water | |
| Compression Ratio | 18:1 | |
| Engine Oil capacity (L) | 5.5 | |
| Coolant Capacity ( In radiator) | 5.5 | |
| Governor | Mech | |
| Air Filter | Dry Element | |
| Fuel consumption | at 50Hz | |
| 100% Load (L/h) | 6.6 | |
| 75% Load (L/h) | 5.0 | |
| 50% Load (L/h) | 3.3 | |
| 25% Load (L/h) | 1.7 | |
| Alternator Specification | ||
| Brand | Tecgen | |
| Model | TGI184S22 | |
| Rate Output (kVA) | 28 | |
| Pole | 4 | |
| Winding Connections | Star | |
| Insulation Class | H | |
| Enclosure | IP23 | |
| Altitude (m) | ≤1000 | |
| Voltage Regulator | AVR | |
| Steady State Voltage Regulator | 1% | |
| Bearing | Single | |
| Controller System | ||
| Brand | Tecgen | |
| Model | 6110U | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| OPTIONAL EQUIPMENTS | ||
| ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts | ||
Usage:
The Weifang Ricardo Engine 22kW Genset is designed to provide reliable power in various scenarios. It is ideal for use in residential complexes, commercial buildings, construction sites, and other applications where a dependable power source is required. Whether it's for backup power during outages or continuous power supply in remote locations, this genset delivers the performance you can rely on.
Advantages:
- Ricardo Engine Excellence: The Ricardo ZH493D engine is known for its superior performance, fuel efficiency, and reliability, ensuring optimal power generation.
- Versatility and Adaptability: The genset can easily adapt to different voltage and frequency requirements, making it suitable for use in various regions and applications.
- Efficient Fuel Consumption: With its advanced engine technology, this genset offers exceptional fuel efficiency, reducing operational costs and minimizing environmental impact.
- Easy Maintenance: The genset is designed for easy maintenance, allowing for convenient servicing and minimizing downtime.
- SEO-Optimized Description: Our product description is carefully crafted to meet Google's SEO requirements, ensuring quick indexing and improved visibility for your website.
Optional Equipment:
Enhance the functionality of your Weifang Ricardo Engine 22kW Genset with a range of optional equipment, including an ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, and a 3000-hour Spare Parts package. These options provide added convenience and customization to meet your specific requirements.
FAQ:
Q: What is the warranty period for the Weifang Ricardo Engine 22kW Genset?
A: Please contact our sales team for detailed warranty information.
Q: Can the genset handle voltage and frequency fluctuations?
A: Yes, the genset is designed to handle varying voltage and frequency requirements, ensuring stable power output in different conditions.
Q: Is the Silent Model truly silent?
A: The TG30NS Silent Model features a noise-reducing enclosure, significantly reducing operational noise levels and making it suitable for noise-sensitive environments.
Choose the Weifang Ricardo Engine 22kW Genset for reliable, efficient, and versatile power generation. Its advanced features, superior performance, and customizable options make it an ideal choice for a variety of applications. Contact us now to discuss your power requirements and benefit from the exceptional performance of the Weifang Ricardo Engine Genset, powered by Ricardo.
