25kW Ricardo Engine Genset Open Type Ricardo Generators With Maintanence Free Battery
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG34NS |
| Minimum Order Quantity | 1 unit |
| Price | 1870$ - 2260$ |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Ricardo Engine Generator | Type | Open Type |
|---|---|---|---|
| Engine Brand | Weifang Ricardo | Engine Model | ZH490ZD |
| Alternator Model | TGI184S25 | Controller | Tecgen 6110U |
| Frequency | 50Hz / 380V | Prime Power | 25kW |
| Highlight | 25kW Ricardo engine genset,Open Type Ricardo engine genset,Maintanence Free Battery Ricardo engine genset |
||
Product Description

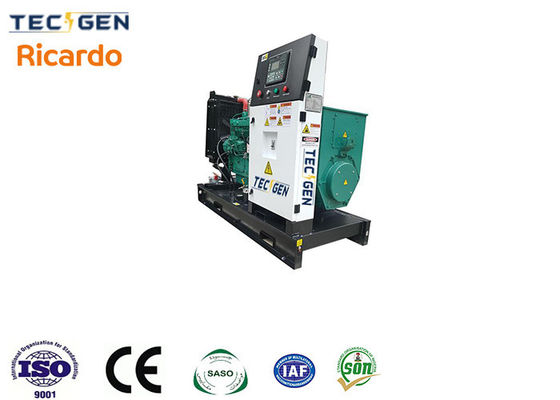

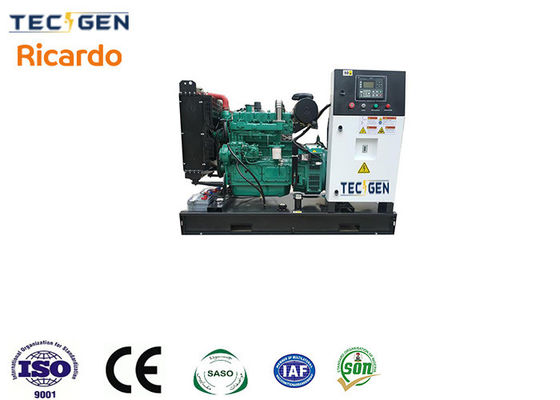

25kW Ricardo engine genset open type Ricardo generators with maintanence free battery
Introducing the 25kW Ricardo Engine Genset - your reliable power solution for a wide range of applications. With its exceptional performance, advanced features, and robust construction, this genset is designed to meet your power needs with efficiency and reliability.
Standard Features:
- Powerful Engine: The Ricardo ZH490ZD engine delivers a consistent output of 25kW, ensuring a stable and reliable power supply.
- Copy Stamford Alternator: The TGI184S25 alternator, manufactured to the highest standards, provides a rated output of 31kVA, ensuring optimal performance and efficiency.
- Controller Panel: Equipped with the Tecgen 6110U controller, this genset offers precise monitoring and control of the power generation process.
- Built-in ATS: The 63A built-in Automatic Transfer Switch (ATS) ensures seamless power transfer in case of utility grid failure.
- Noise Reduction: The genset is equipped with a silencer, reducing noise levels to 85dB(A) at 7 meters, ensuring a quiet operation.
- Reliable Cooling System: The forced water cooling cycle ensures optimal engine temperature control, enhancing performance and longevity.
- Voltage Regulation: With a voltage regulation rate of ≤±1%, the genset provides stable power for your sensitive electronic equipment.
- Easy Maintenance: The genset comes with a comprehensive spare parts package, ensuring hassle-free maintenance and longevity.
Key Features:
- Robust Construction: The genset is built with high-quality components, making it durable and reliable in various working conditions.
- Fuel Efficiency: The Weifang Ricardo engine consumes only 7.4 L/h of fuel at rated output, ensuring cost-effective operation.
- Compact Design: With dimensions of L1600 * W700 * H1000mm, the genset is space-efficient and easy to install in different environments.
25kW Ricardo Engine Genset Datasheets:
| 25kW Ricardo Engine Genset Specifications | |||||
| Model | Engine | Alternator | Controller | Output | |
| TG34NS | ZH490ZD | TGI184S25 | 6110U | 25kW | |
|
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
|
|||||
| General Date of Weifang Ricardo Engine Genset | |||||
| Engine Model | ZH490ZD | ||||
| Alternator Mode | TGI184S25 Copy Stamford | ||||
| Rated Output | 31kVA / 25kW | ||||
| Standby Output | 34kVA / 27kW | ||||
| Rated Speed | 1500 RPM | ||||
| Frequency | 50 HZ | ||||
| Rated Voltage | 220 / 380V | ||||
| Rated Current | 47.1A | ||||
| Breaker | 63A Aisikai Breaker | ||||
| ATS | 63A Built-in ATS | ||||
| Power Factor | 0.8 | ||||
| Genset Phase | 3 phase, 4 – wire connection | ||||
| Fuel Tank | 8 running hours | ||||
| Noise level dB(A) @7m | 85dB(A) | ||||
| Net Weight | 640KGS | ||||
| Genset size | L1600 * W700 * H1000mm | ||||
| Voltage regulation rate | ≤±1% | ||||
| Random voltage variation | ≤±1% | ||||
| Frequency regulation rate | ≤±5% | ||||
| Random frequency variation | ≤±0.5% | ||||
| General specification of Engine for Weifang Ricardo Engine Genset | |||||
| Manufacture | Weifang Ricardo | ||||
| Model | ZH4102D | ||||
| Rated Output/Speed | 33KW/1500RPM | ||||
| Standby Output/Speed | 36KW/1500RPM | ||||
| Aspiration | Natural ASP | ||||
| Speed Governor | MECH OR Electric | ||||
| Engine Type | 4 cylinders in line | ||||
| Bore X Stroke | 105*115mm | ||||
| Displacement | 3.76 L | ||||
| Compression ratio | 19:1 | ||||
| Cooling system | Forced Water Cooling Cycle | ||||
| Rated speed | 1500rpm | ||||
| Fuel Consumption/rated output | 7.4 L / h | ||||
| Fuel Consumption/standby output | 8.1 L / h | ||||
| Starter motor | D.C. 24V Electric starting | ||||
| Alternator (Dynamo) | AC24V | ||||
| General data of Alternator for Weifang Ricardo Engine Genset | |||||
| Alternator Model | TGI184S25 | ||||
| Manufacture | Copy Stamford | ||||
| Rate Output | 31kVA | ||||
| Rated voltage(V) | 220 / 380V | ||||
| Voltage regulation | AVR ± 1.0 % | ||||
| Working Altitude | ≤1000 | ||||
| Control System | Brushless Self Excited | ||||
| Bearing | Single Bearing | ||||
| Insulation System | Class H | ||||
| Protection | IP23 | ||||
| Power factor | 0.8 | ||||
| Winding connection | 3 phase, 4 – wire connection | ||||
| Standard configuration of Weifang Ricardo Engine Genset | |||||
| Aluminum water tank | 50℃ | ||||
| Controller Panel | Tecgen 6110U | ||||
| Battery | Varta Maintenance free Battery | ||||
| Silencer | Included | ||||
| Dry type air filter, fuel filter, oil filter | |||||
| 24V D.C automatic battery charger | |||||
| Max. 50 degree celsius radiator | |||||
| Batteries, rack and cable | |||||
| Ripple flex exhaust pipe, flange and muffler | |||||
Usage:
The 25kW Ricardo Engine Genset is suitable for a wide range of applications, including:
- Construction sites: Powering tools and equipment on-site, ensuring uninterrupted productivity.
- Commercial facilities: Providing backup power during grid outages, preventing disruptions to your business operations.
- Residential use: Serving as a reliable standby power source for homes, ensuring comfort and essential electrical functions during emergencies.
Advantages:
- Reliable Performance: The Weifang Ricardo engine, coupled with the Copy Stamford alternator, ensures stable and uninterrupted power supply.
- Versatility: The genset's compact design allows for easy installation in various environments, making it suitable for both indoor and outdoor use.
- Fuel Efficiency: The efficient fuel consumption of the engine results in cost savings over time.
- Low Noise Level: The built-in silencer reduces noise levels, making it suitable for noise-sensitive areas.
- Easy Operation: The Tecgen 6110U controller provides user-friendly operation and monitoring of the genset.
Options:
Enhance the functionality of your Ricardo Engine Genset with optional equipment, including an Integrated Fuel Tank, Water Heater, Automatic Transfer Switch (ATS), PMG Generator, SYNC Function, and 12/24 Hours Fuel Tank.
FAQ:
- What is the fuel consumption of the 25kW Ricardo Engine Genset?
- The genset consumes approximately 7.4 L/h at the rated output.
- Can the genset be used for both indoor and outdoor applications?
- Yes, the compact design allows for easy installation in various environments.
- Does the genset come with a warranty?
- Yes, the genset is covered by a warranty to ensure customer satisfaction and peace of mind.
Experience the power and reliability of the 25kW Ricardo Engine Genset. With its robust construction, advanced features, and efficient performance, it is the ideal choice for a variety of power generation needs. Invest in this dependable genset and enjoy uninterrupted power supply whenever you need it. Contact us now to discuss your requirements and harness the power of the Ricardo Engine Genset.
