Weichai Series Diesiel Generators Weichai Generators Range From 23kVA To 2500kVA

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct | Weichai Series Diesel Generator | Frequency | 50Hz |
---|---|---|---|
Voltage | 220/230/240//380/400/415V | Phase | 1 Phase / 3 Phase |
Power Ranges | 13kVA To 375kVA | Engine Series | WP2.3, WP4.1, WP6D, WP10D, WP13D, 6M33D, 12M33D, 16M33D, 20M33D |
Engine Cylinder | 4, 6, 12, 16, 20 Cylinders | Alternator Brand | Stamford, Tecgen, Leroy Somer, Meccalte |
Highlight | 23kVA Weichai generators,2500kVA Weichai generators,Weichai series diesiel generators |

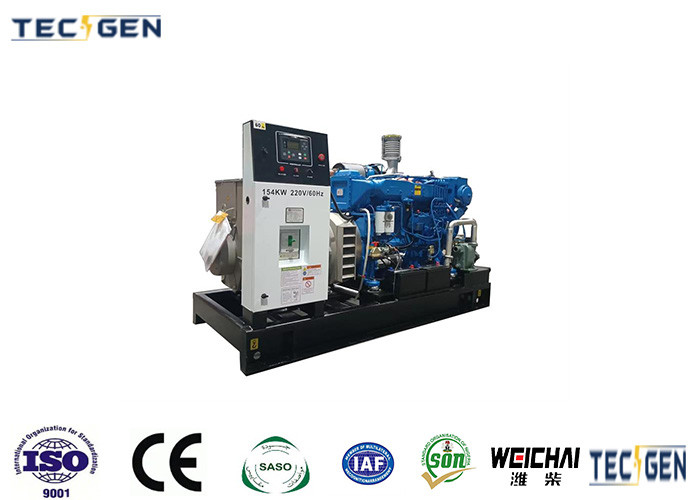

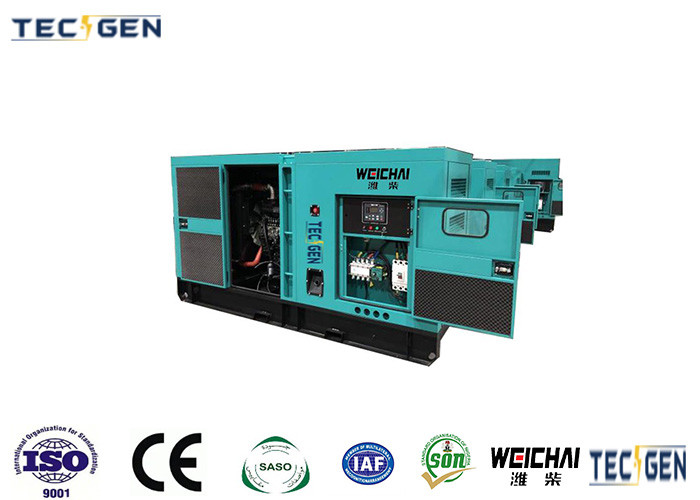

Weichai series diesiel generators Weichai generators range from 23kVA to 2500kVA
Features of Weichai Series Diesel Generator
When it comes to diesel generators, the Weichai Series stands out from the competition with its comprehensive set of standard features and optional accessories, tailored to meet the varying needs of our global customers. Here's what makes our generators unique:
1. Power Range:
Offering a wide power range from 23 kVA to 2500 kVA, the Weichai Series caters to both small and large-scale applications.
2. Versatile Configuration:
With options for 50/60 Hz frequency, 3-phase or single-phase, and voltages ranging from 110 V to 460 V, you can customize your generator to suit your specific requirements.
3. Durable & Reliable:
Equipped with diesel, four-stroke, water-cooled engines, our generators are built for durability and long-term reliability.
4. Silent Operation:
With a noise level below 68 dB at 7 meters, the Weichai Series offers quiet operation for both indoor and outdoor use.
5. Environmentally Friendly:
Operating in temperatures ranging from -5ºC to +50ºC, our generators are designed to be environmentally friendly and efficient.
6. Advanced Engine:
We offer a choice of brushless alternators from top brands like Cummins, Deutz, Weichai, Yuchai, SDEC, Perkins, Yangdong, Ricardo, and more, ensuring high-quality power output.
7. Smart Control:
With controllers from Deepsea, ComAp, Smartgen, DEIF, MEBAY, and TECGEN, you can monitor and control your generator with ease.
8. Quick Delivery:
With a normal delivery time of 15 days, we ensure prompt service to meet your urgent needs.
9. Customizable Starting Method:
Choose from manual or electric start, adjustable to your preferences.
10. Comprehensive Packaging & Export:
Your generator will be securely packaged in plastic shrink wrap film and shipped from Fuzhou Port or any other port as per your request.
Weichai Series Diesel Generator Power Range Datasheets:
WEICHAI Series | ||||||||||||
Diesel Generator Set Techinical Specification ( 50Hz ) | ||||||||||||
Genset Model | Genset Prime Power |
Genset Standby Power |
Engine Model | Engine Max Power |
Cylinders | Governor | Alternator Model | Fuel Consumption | Dimension (LxWxH) mm | |||
KVA | KW | KVA | KW | KW | L/H | Open Type | Silent Type | |||||
TG25W | 23 | 18 | 25 | 20 | WP2.3D25E200 | 25 | 4L | Electrical | TGI184S18 | 6.2 | 1430x800x1090 | 2200x890x1280 |
TG35W | 33 | 26 | 36 | 29 | WP2.3D33E200 | 33 | 4L | Electrical | TGI184S26 | 7.7 | 1430x800x1090 | 2200x890x1280 |
TG41W | 38 | 30 | 41 | 33 | WP2.3D40E200 | 40 | 4L | Electrical | TGI184S30 | 9.3 | 1510x800x1090 | 2300x890x1280 |
TG50W | 45 | 36 | 50 | 40 | WP2.3D48E200 | 48 | 4L | Electrical | TGI224S36 | 10.8 | 1730x900x1150 | 2400x1020x1280 |
TG69W | 63 | 50 | 69 | 55 | WP4.1D66E200 | 66 | 4L | Electrical | TGI224S50 | 15.6 | 1920x900x1240 | 2500x1020x1500 |
TG89W | 81 | 65 | 89 | 72 | WP4.1D80E200 | 80 | 4L | Electrical | TGI224S65 | 18.9 | 1970x900x1240 | 2600x1020x1500 |
TG110W | 100 | 80 | 110 | 88 | WP4.1D100E200 | 100 | 4L | Electrical | TGI274S80 | 21.4 | 1990x1000x1240 | 2600x1020x1500 |
TG138W | 125 | 100 | 138 | 110 | WP6D132E200 | 132 | 6L | Electrical | TGI274S100 | 30.1 | 2460x1000x1430 | 3300x1100x1700 |
TG165W | 150 | 120 | 165 | 132 | WP6D152E200 | 152 | 6L | Electrical | TGI274S120 | 32.9 | 2460x1000x1430 | 3300x1100x1700 |
TG188W | 170 | 136 | 187 | 150 | WP6D167E200 | 167 | 6L | Electrical | TGI274S136 | 35.6 | 2460x1000x1430 | 3300x1100x1700 |
TG220W | 200 | 160 | 220 | 176 | WP10D200E200 | 200 | 6L | Electrical | TGI274S160 | 42.3 | 2760x1050x1850 | 3800x1300x2000 |
TG254W | 231 | 185 | 254 | 204 | WP10D238E200 | 238 | 6L | Electrical | TGI274S185 | 46.1 | 2910x1050x1850 | 3950x1300x2000 |
TG275W | 250 | 200 | 275 | 220 | WP10D264E200 | 264 | 6L | Electrical | TGI274S200 | 57.3 | 2910x1050x1850 | 3950x1300x2000 |
TG344W | 313 | 250 | 344 | 275 | WP10D320E200 | 320 | 6L | Electrical | TGI314S250 | 71.0 | 2960x1050x1850 | 4000x1300x2000 |
TG413W | 375 | 300 | 413 | 330 | WP13D385E200 | 385 | 6L | Electrical | TGI314S300 | 82.6 | 3130x1140x1870 | 4200x1400x2130 |
TG440W | 400 | 320 | 440 | 352 | WP13D405E200 | 405 | 6L | Electrical | TGI314S320 | 85.6 | 3130x1140x1870 | 4200x1400x2130 |
TG481W | 438 | 350 | 481 | 385 | WP13D440E310 | 440 | 6L | Electrical | TGI354S350 | 93.0 | 3210x1140x1870 | 4350x1400x2130 |
TG550W | 500 | 400 | 550 | 440 | WP13D490E310 | 490 | 6L | Electrical | TGI354S400 | 110.0 | 3210x1140x1870 | 4350x1400x2130 |
TG715W | 650 | 520 | 715 | 572 | 6M33D633E200 | 633 | 6L | Electrical | TGI354S520 | 137.0 | 3800x1600x2150 | 5400x1900x2450 |
TG756W | 688 | 550 | 756 | 605 | 6M33D670E200 | 670 | 6L | Electrical | TGI354S550 | 150.0 | 3800x1600x2150 | 5400x1900x2450 |
TG825W | 750 | 600 | 825 | 660 | 6M33D725E310 | 725 | 6L | Electrical | TGI404S600 | 155.3 | 4140x1900x2430 | 6100x2280x2530 |
TG894W | 813 | 650 | 894 | 715 | 12M26D792E200 | 792 | 12V | Electrical | TGI404S650 | 173.5 | 4380x1900x2430 | 6400x2280x2530 |
TG990W | 900 | 720 | 990 | 792 | 12M26D902E200 | 902 | 12V | Electrical | TGI404S720 | 198.0 | 4380x1900x2430 | 6400x2280x2530 |
TG1100W | 1000 | 800 | 1100 | 880 | 12M26D968E200 | 968 | 12V | Electrical | TGI404S800 | 206.5 | 4380x1900x2430 | 6400x2280x2530 |
TG1238W | 1125 | 900 | 1238 | 990 | 12M33D1108E200 | 1108 | 12V | Electrical | TGI404S900 | 237.6 | 4490x2100x2430 | ISO 40HQ |
TG1375W | 1250 | 1000 | 1375 | 1100 | 12M33D1210E200 | 1210 | 12V | Electrical | TGI404S1000 | 260.0 | 4600x2100x2430 | ISO 40HQ |
TG1513W | 1375 | 1100 | 1513 | 1210 | 12M33D1320E200 | 1320 | 12V | Electrical | TGI404S1100 | 280.0 | 4600x2100x2430 | ISO 40HQ |
TG1650W | 1500 | 1200 | 1650 | 1320 | 12M33D1500E310 | 1500 | 12V | Electrical | TGI404S1200 | 315.0 | 4600x2100x2430 | ISO 40HQ |
TG1650W | 1500 | 1200 | 1650 | 1320 | 16M33D1530E310 | 1530 | 16V | Electrical | TGI404S1200 | 330.6 | 5200x2100x2400 | ISO 40HQ |
TG1788W | 1625 | 1300 | 1788 | 1430 | 16M33D1580E310 | 1580 | 16V | Electrical | TGI454S1300 | 343.0 | 5200x2100x2400 | ISO 40HQ |
TG1925W | 1750 | 1400 | 1925 | 1540 | 16M33D1680E310 | 1680 | 16V | Electrical | TGI454S1400 | 367.2 | 5200x2100x2400 | ISO 40HQ |
TG2063W | 1875 | 1500 | 2063 | 1650 | 16M33D1800E310 | 1800 | 16V | Electrical | TGI454S1500 | 430.4 | 5400x2150x2500 | ISO 40HQ |
TG2200W | 2000 | 1600 | 2200 | 1760 | 20M33D2020E310 | 2020 | 20V | Electrical | TGI454S1600 | 438.0 | 5600x2150x2500 | ISO 40HQ |
TG2475W | 2250 | 1800 | 2475 | 1980 | 20M33D2210E310^ | 2210 | 20V | Electrical | TGI454S1800 | 477.5 | 5600x2150x2500 | ISO 40HQ |
Optional Accessories for Enhanced Functionality:
- ATS (Automatic Transfer Switch) for seamless power transfer
- Water, fuel, and alternator heaters for cold environments
- Electrical start system with maintenance-free battery and engine-driven battery charger
- Residence silencer with flexible connections and elbows
- Test reports, drawings, and manuals included for easy installation and maintenance
With these differentiating features, the Weichai Series diesel generator is your reliable choice for a wide range of applications.
TECGEN Weichai Series Generator Sets
TECGEN stands out with its comprehensive services, prompt responses, and manufacturer-direct quality.
- Direct Purchase Options
- Unlike many trading companies, TECGEN offers direct purchase options through email, WhatsApp, or Wechat, simplifying the buying process.
- Post-Order Communication
- TECGEN takes the initiative to contact customers after order placement, ensuring smooth production and delivery. No need for buyers to chase for updates.
- Fast Delivery
- TECGEN guarantees delivery in 7-15 days after deposit receipt, providing a clear and efficient timeframe for customers.
- Flexible Order Quantities
- With a minimum order quantity (MOQ) of 1 unit, TECGEN caters to both large and small orders, making its products accessible to a wider range of customers.
- Manufacturer-Direct Quality
- As a manufacturer with three large factories, R&D teams, and foreign trade teams, TECGEN ensures high-quality products that meet industry standards.
- Efficient Spare Parts Supply
- During the warranty period, TECGEN provides free spare parts via DHL, minimizing downtime and ensuring generator sets remain operational.
- Specific Fuel Requirements
- TECGEN's Weichai Series generator sets run on #0 diesel fuel, a commonly available fuel type that ensures compatibility and ease of use.
- Customer Service & Visits
- TECGEN welcomes inquiries and visits, providing personalized attention to each customer and ensuring they find the right generator set for their needs.
