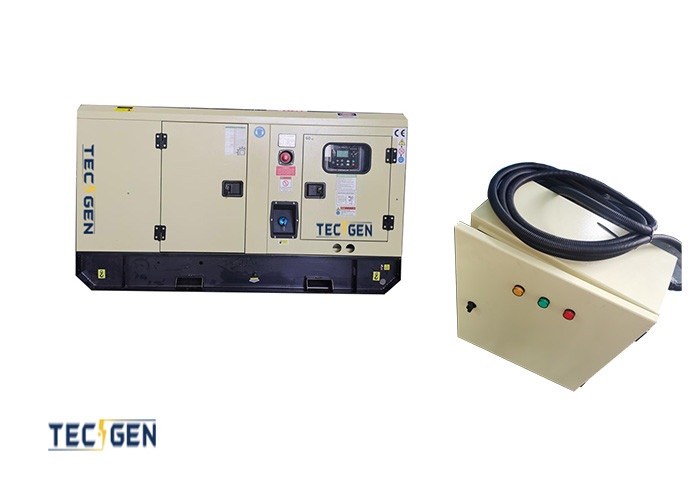

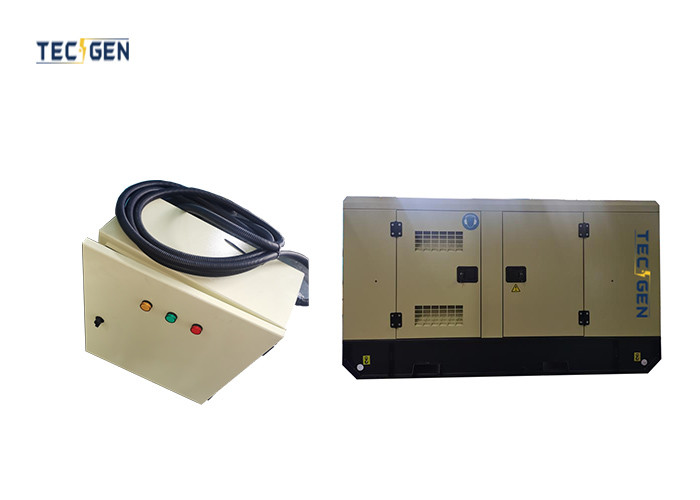

35kW Backup Ricardo Generator Ricardo Diesel Generators With 63A Ats Box
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | Silent Ricardo Generator | Frequency | 50Hz |
|---|---|---|---|
| Engine Brand | Weifang Ricardo | Engine Model | ZH4105D |
| Cylinder | 4 Cylinder Water Cooled Engine | Engine Output | 44kW Rate |
| Genset Output | 35kW / 44kVA Standby | ATS | 63A Wall Mounted ATS Box |
| Highlight | ricardo diesel generators,35kW ricardo diesel generators,63A ats box ricardo diesel generators |
||
Product Description
35kW backup ricardo generator ricardo diesel generators with 63A ats box
Product Description: Ricardo Diesel Engine Generator - 35kW Backup Ricardo Generator
Standard Features:
• A robust Ricardo diesel engine delivering a maximum output of 35kW.
• Consistent 50Hz frequency for smooth and uninterrupted power supply.
• A rated voltage of 220/380V, ensuring compatibility with a wide range of applications.
• An efficient forced water-cooling system that optimizes engine performance.
Key Features:
• A high-performance alternator from Copy Stamford, guaranteeing dependable power generation.
• An automatic voltage regulator (AVR) that maintains a steady voltage output.
• Quiet operation, producing only 72db(A) of noise at a distance of 7 meters.
• A sturdy and compact design, suitable for both indoor and outdoor installations.
35kW Backup Ricardo Generator Specifications:
| Technical Parameter for Ricardo Genset | Genset Model | TG44NS |
| Prime Power | 32kW/40kVA | |
| Standby Power | 35kW/44kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 220/380V | |
| Rate Current | 60.7 A | |
| Power Factor | 0.8 | |
| Governor | MECH OR ELECTRIC | |
| Noise level (7m) | 72db(A) | |
| Engine Brand | RICARDO | |
| Engine Model | ZH4105D | |
| Alternator Brand | Copy Stamford | |
| Alternator Brand | TGI184S32 | |
| ATS | 63A Wall Mounted ATS Box | |
| Dimension | Open: L1600 x W800 x H950mm | |
| Silent: L2200 x W1000 x H1150 | ||
| Fuel Tank Capacity | 90L | |
| Engine General Data | Engine Brand | RICARDO |
| Engine Model | ZH4105D | |
| Rated Output | 44kW | |
| Rated Speed | 1500rpm | |
| Number of Cylinders | 4 | |
| Cylinder arrangement | In-line | |
| Displacement (L) | 3.76 | |
| Aspiration | Turbocharged | |
| Bore×Stroke (mm×mm) | 105x118 | |
| Compression Ratio | 17:1 | |
| Cooling | Forced Water Cooled | |
| Fuel Consumption at 100% load(L/H) | 9.9 | |
| Alternator Data | Model | TGI184S32 |
| Brand | Copy Stamford | |
| Rate Output | 40kVA | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | Smartgen |
| Model | HGM6120N | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Circuit breaker | Delixi Brand 160A Breaker | |
| Auto Transfer Switch | 63A ATS | |
| Genset Options | Output Socket | |
| Integrated Fuel Tank | ||
| Trailer & Silent Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Usage:
The backup Ricardo generator is perfectly suited for hospitals, banks, data centers, and other vital facilities where an uninterrupted power supply is crucial. Its powerful Chinese diesel engine and cutting-edge features ensure continuous power delivery in emergency situations.
Advantages:
• Cost-effective backup power solution.
• Simplified maintenance and operation thanks to a user-friendly control system.
• Extended service life and minimal maintenance expenses.
• Eco-friendly with reduced emissions.
Options:
• Integrated fuel tank for uninterrupted operation without the need for frequent refueling.
• Trailer and silent canopy for convenient transportation and noise reduction.
• Synchronization panel, allowing parallel operation with other generators.
• Supplemental engine and water heaters for optimal performance in colder climates.
FAQ:
• Q: What is the rated standby power of this backup generator?
A: With a standby power rating of 35kW/44kVA, it's ideally suited for backup power needs.
• Q: Is this Chinese diesel engine generator suitable for continuous use?
A: Absolutely, the TG44NS is designed for both primary and standby power use, making it perfect for continuous operation.
• Q: How much fuel does the generator consume?
A: At 100% load, the fuel consumption rate is 9.9L/H, ensuring efficient fuel use.
• Q: Is maintaining this generator straightforward?
A: Indeed, the generator features a user-friendly control system and minimal maintenance requirements, ensuring smooth and continuous operation.
With its backup Ricardo generator capabilities and robust Ricardo diesel engine, the TG44NS stands out as the ideal choice for your backup power needs. Whether for business or home use, this generator guarantees an uninterrupted power supply in emergency situations.
