Ricardo 110kW Diesel Generator Backup Generator With R6105IZLD 6 Cylinder Engine Outdoor Use
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent | Usage | Back-up Use |
|---|---|---|---|
| Frequency | 50Hz | Speed | 1500rpm |
| Engine Model | R6105IZLD | Alternator Model | TGI274S110 |
| Genset Prime Power | 110kW/138kVA | Controller | Mebay / Tecgen / DEIF |
| Highlight | Ricardo 110kW diesel generator,outdoor use diesel generator,R6105IZLD diesel generator |
||
Product Description

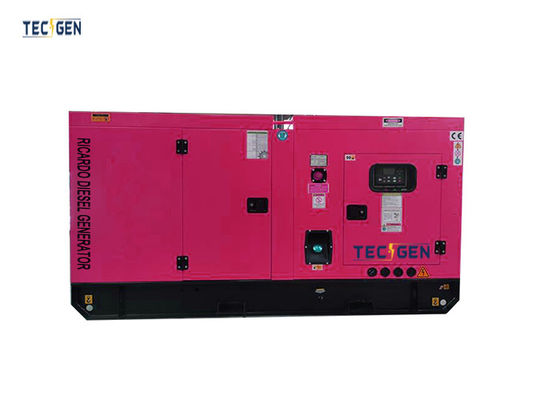

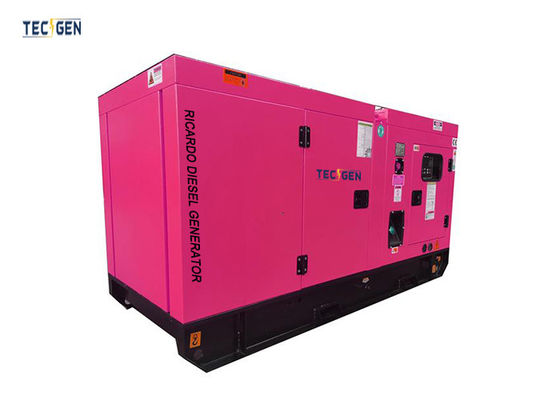

Ricardo 110kW diesel generator backup generator with R6105IZLD 6 cylinder engine outdoor use
Product Description: Ricardo 110kW Diesel Generator - Your Reliable Backup Power Solution
Introducing the Ricardo 110kW Diesel Generator, the ultimate backup generator designed to power your essential systems during power outages, ensuring uninterrupted operations and peace of mind. With its robust construction and advanced features, this generator is the go-to choice for industrial, commercial, and residential applications alike.
Standard Features:
- Powerful Engine: Equipped with a Ricardo R6105IZLD diesel engine, delivering a prime power of 110kW/138kVA and a standby power of 121kW/151kVA, this generator is capable of handling heavy loads with ease.
- Reliable Governor: An electric governor ensures precise control over engine speed, maintaining stable voltage and frequency output even under varying loads.
- Efficient Cooling System: Forced water-cooled engine ensures optimal operating temperatures, enhancing engine life and performance.
- Compact Design: Available in both open and silent configurations, the generator is designed for easy installation and transportation, fitting seamlessly into various environments.
Key Features:
- Turbocharged & Intercooled: The R6105IZLD engine features turbocharging and intercooling, maximizing power output while maintaining low fuel consumption.
- Low Noise Levels: The silent canopy version operates at just 72dB(A) at 7 meters, making it ideal for noise-sensitive areas.
- Large Fuel Tank: With a 250L fuel tank, the generator provides extended runtime, reducing the need for frequent refueling.
- High-Quality Alternator: The Copy Stamford TGI274S110 alternator guarantees clean and stable power output, suitable for sensitive electronic equipment.
Ricardo 110kW Diesel Generator Specifications:
| Technical Parameter for Ricardo 110kW Diesel Generator | Genset Model | TG151NS |
| Prime Power | 110kW/138kVA | |
| Standby Power | 121kW/151kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 240/415V | |
| Power Factor | 0.8 | |
| Governor | ELECTRIC | |
| Noise level (7m) | 72db(A) | |
| Engine Brand | Ricardo | |
| Engine Model | R6105IZLD | |
| Alternator Brand | Copy Stamford | |
| Alternator Brand | TGI274S110 | |
| Dimension | Open: L2400 x W1050 x H1300mm | |
| Silent: L2900 x W1150 x H1550 | ||
| Fuel Tank Capacity | 250L | |
| Ricardo Engine General Data | Engine Brand | Weifang Ricardo |
| Engine Model | R6105IZLD | |
| Rated Output | 132kW | |
| Rated Speed | 1500rpm | |
| Number of Cylinders | 6 | |
| Cylinder arrangement | In-line | |
| Displacement (L) | 7.02 | |
| Aspiration | Turbocharged & Intercooled | |
| Bore×Stroke (mm×mm) | 105x135 | |
| Compression Ratio | 16:1 | |
| Cooling | Forced Water Cooled | |
| Fuel Consumption at 100% load(L/H) | 7.7 | |
| AC Alternator Data | Model | TGI274S110 |
| Brand | Copy Stamford | |
| Rate Output | 110kW | |
| Frequency | 50Hz | |
| Speed | 1500rpm | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | Tecgen |
| Model | 6120U | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Circuit breaker | CHNT Brand Breaker | |
| Auto Transfer Switch | Aisikai Brand ATS Box | |
| Genset Options | Output Socket | |
| Integrated Fuel Tank | ||
| Trailer & Silent Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Usage:
The Ricardo 110kW Diesel Generator is perfect for a wide range of applications, including hospitals, data centers, telecommunications facilities, construction sites, and remote locations where reliable backup power is crucial. It can seamlessly switch to backup mode during power failures, ensuring continuous operation of critical systems.
Advantages:
- Durability: Built with premium components, the generator is designed for long-lasting performance and minimal maintenance.
- Versatility: Multiple engine brand options and customization possibilities cater to diverse needs and preferences.
- Easy Maintenance: The accessible design and standard service points facilitate quick and efficient maintenance routines.
- Eco-Friendly: Low fuel consumption and emissions contribute to a greener environment.
Options:
- Choose from various alternator brands, including Leroy Somer, Marathon, Mecc Alte, and Chinese brushless alternators.
- Upgrade your control system with optional brands like Deepsea, ComAp, or Mebay for advanced monitoring and control capabilities.
- Enhance your generator's versatility with optional features such as an output socket, integrated fuel tank, trailer, silent canopy, sync panel, water heater, and engine heater.
FAQs:
Q: What is the noise level of the silent canopy version?
A: The silent canopy version operates at 72dB(A) at 7 meters, making it suitable for noise-sensitive environments.
Q: How long can the generator run on a full tank?
A: Depending on the load, the 250L fuel tank can provide extended runtime, reducing the need for frequent refueling.
Q: Can I customize the generator to suit my specific needs?
A: Yes, we offer various customization options, including engine brand selection, control system upgrades, and additional features like trailers and silent canopies.
Experience the reliability and performance of the Ricardo 110kW Diesel Generator, your trusted backup power solution. With its powerful engine, efficient cooling system, and compact design, this generator is the perfect choice for ensuring continuous power supply in any situation.
