Ricardo 100kVA Standby Generator Silent Generators With 4 Cylinder Diesel Engine Backup Use
| Place of Origin | Fuzhou, China |
|---|---|
| Brand Name | Tecgen Power |
| Certification | CE / SASO / SONCAP / COC / PVOC |
| Model Number | TG110NS |
| Minimum Order Quantity | 1 unit |
| Price | Negotiation |
| Packaging Details | Stretch film packaging |
| Delivery Time | 7 - 15 Working Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Silent | Product | Ricardo Diesel Generator |
|---|---|---|---|
| Frequency | 50Hz | Engine Brand | Ricardo |
| Engine Model | TH4XD-1 | Cylinder | 4 Cylinder |
| Prime Power | 80kW/100kVA | Standby Power | 88kW/110kVA |
| Highlight | silent generators standby generator,100kVA standby generator,4 cylinder diesel engine standby generator |
||
Product Description

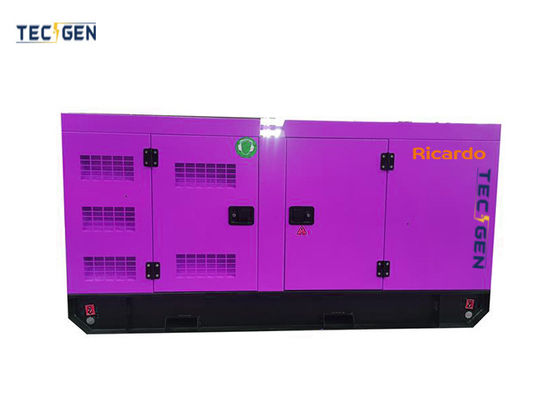

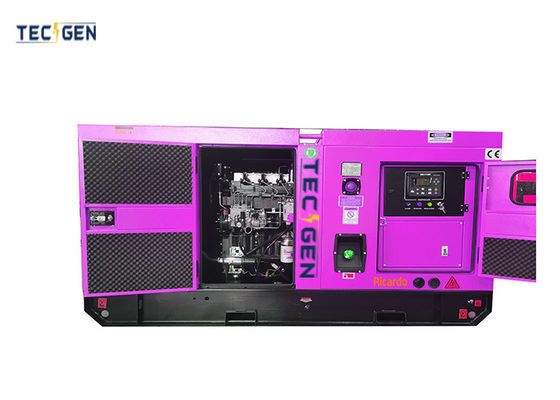

Ricardo 100kVA standby generator silent generators with 4 cylinder diesel engine backup use
Product Description: Ricardo 100kVA Standby Diesel Generator - Reliable Power Solution
Standard Features:
Introducing the Ricardo 100kVA Standby Generator, TG110NS, a robust and efficient power solution designed to keep your essential systems running during unexpected power outages. Equipped with a powerful Ricardo TH4XD-1 diesel engine, this generator boasts a prime power output of 80kW and a standby power capacity of 88kW, ensuring seamless transition to backup power when needed. Operating at a stable 50Hz frequency with a rated voltage of 240/415V and a power factor of 0.8, it seamlessly integrates into your power grid.
Key Features:
- High-Performance Engine: The TH4XD-1 engine, manufactured by Weifang Ricardo, is a turbocharged and intercooled powerhouse delivering 92kW of rated output at 1500rpm. Its 4-cylinder in-line configuration and 4.95L displacement guarantee smooth and reliable operation.
- Electric Governor: Equipped with an electric governor, the generator maintains stable output voltage and frequency, ensuring clean and consistent power supply.
- Quiet Operation: Available in both open and silent canopy configurations, the Ricardo 100kVA generator keeps noise levels down to a whisper-quiet 72dB(A) at 7 meters, making it ideal for residential and commercial applications alike.
- Durability & Efficiency: With a forced water-cooled system and a fuel consumption rate of just 5.8L/H at full load, this generator ensures longevity while minimizing operational costs.
- Advanced Alternator: The Copy Stamford TGI274S80 alternator provides 100kVA of clean power, supported by an AVR (Automatic Voltage Regulator) for steady-state voltage regulation within 1%.
Ricardo 100kVA Standby Generator Specifications:
| Technical Parameter for Ricardo 100kVA Standby Generator | Genset Model | TG110NS |
| Prime Power | 80kW/100kVA | |
| Standby Power | 88kW/110kVA | |
| Frequency | 50Hz | |
| Rated Voltage | 240/415V | |
| Power Factor | 0.8 | |
| Governor | ELECTRIC | |
| Noise level (7m) | 72db(A) | |
| Engine Brand | Ricardo | |
| Engine Model | TH4XD-1 | |
| Alternator Brand | Copy Stamford | |
| Alternator Brand | TGI274S80 | |
| Dimension | Open: L2200 x W1050 x H1300mm | |
| Silent: L2700 x W1150 x H1550 | ||
| Fuel Tank Capacity | 180L | |
| Ricardo Engine General Data | Engine Brand | Weifang Ricardo |
| Engine Model | TH4XD-1 | |
| Rated Output | 92kW | |
| Rated Speed | 1500rpm | |
| Number of Cylinders | 4 | |
| Cylinder arrangement | In-line | |
| Displacement (L) | 4.95 | |
| Aspiration | Turbocharged & Intercooled | |
| Bore×Stroke (mm×mm) | 108x135 | |
| Compression Ratio | 17:1 | |
| Cooling | Forced Water Cooled | |
| Fuel Consumption at 100% load(L/H) | 5.8 | |
| AC Alternator Data | Model | TGI274S80 |
| Brand | Copy Stamford | |
| Rate Output | 100kVA | |
| Frequency | 50Hz | |
| Altitude | ≤1000 | |
| Insulation | Class H | |
| Bearing | Single | |
| Voltage Regulator | AVR | |
| Protection Grade | IP 23 | |
| Steady StateVoltage Regulater | 1% | |
| Opetion | Leroy Somer, Marathon, Mecc Alte and Chinese brand Brushless alternator | |
|
Control System |
Brand | Tecgen |
| Model | 6120U | |
| Functions | Control with AMF module | |
| Static with auto. battery charger | ||
| Emergency stop push button | ||
| ATS Connection | ||
| Optional brands | Deepsea, ComAp, Mebay | |
| Battery Capacity | 12/24V Varta Maintenance free Battery | |
| Cooling System | Water-cooled, 50℃ radiator with Cooper | |
| Circuit breaker | Delixi Brand 160A Breaker | |
| Auto Transfer Switch | 100A ATS | |
| Genset Options | Output Socket | |
| Integrated Fuel Tank | ||
| Trailer & Silent Canopy for Genset | ||
| Sync Panel | ||
| Water Heater & Engine Heater | ||
| Engine Brand Options | ||
| Cummins, Perkins, Weifang Ricardo, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, Shanghai Engine | ||
Usage:
Ideal for a wide range of applications, the Ricardo 100kVA Standby Generator is a perfect fit for hospitals, data centers, hotels, offices, and industrial facilities requiring uninterrupted power supply. Its robust construction and reliable performance ensure that critical operations continue without interruption during power failures.
Advantages:
- Rapid Response: Equipped with an AMF module, the Tecgen 6120U control system enables automatic start/stop, minimizing downtime during emergencies.
- Versatile Options: Choose from various options like an integrated fuel tank, trailer, silent canopy, sync panel, and heaters to customize your generator to your specific needs.
- Maintenance-Free Battery: Comes with a 12/24V Varta maintenance-free battery, ensuring hassle-free operation.
- Easy Maintenance: Designed for ease of access and maintenance, the Ricardo generator simplifies routine checks and repairs.
- Global Compatibility: With compatibility options for Leroy Somer, Marathon, Mecc Alte, and Chinese brand brushless alternators, it caters to international standards.
Options:
- Engine Brand Options: Upgrade your generator with engines from Cummins, Perkins, Yangdong, Quanchai, FAWDE, Weichai, Deutz, SDEC, Yuchai, Isuzu, Doosan, VMAN, Mitsubishi, MTU, Googol, or Shanghai Engine, tailored to your specific requirements.
- Accessories: Select from additional features like output sockets, auto transfer switches (ATS), and more to enhance your generator's functionality.
FAQs:
- Q: How long does it take for the generator to start automatically during a power outage?
- A: Equipped with an AMF module, the Ricardo 100kVA Standby Generator starts automatically within seconds of detecting a power failure.
- Q: What is the maximum altitude this generator can operate at?
- A: The alternator is rated for altitudes up to 1000 meters, ensuring reliable performance even in high-altitude environments.
- Q: Can I customize the fuel tank capacity?
- A: Yes, the generator offers an integrated fuel tank option with a standard capacity of 180L, but customization options may be available upon request.
Experience uninterrupted power security with the Ricardo 100kVA Standby Diesel Generator. Its combination of reliability, efficiency, and versatility makes it the ultimate choice for any power backup solution.
